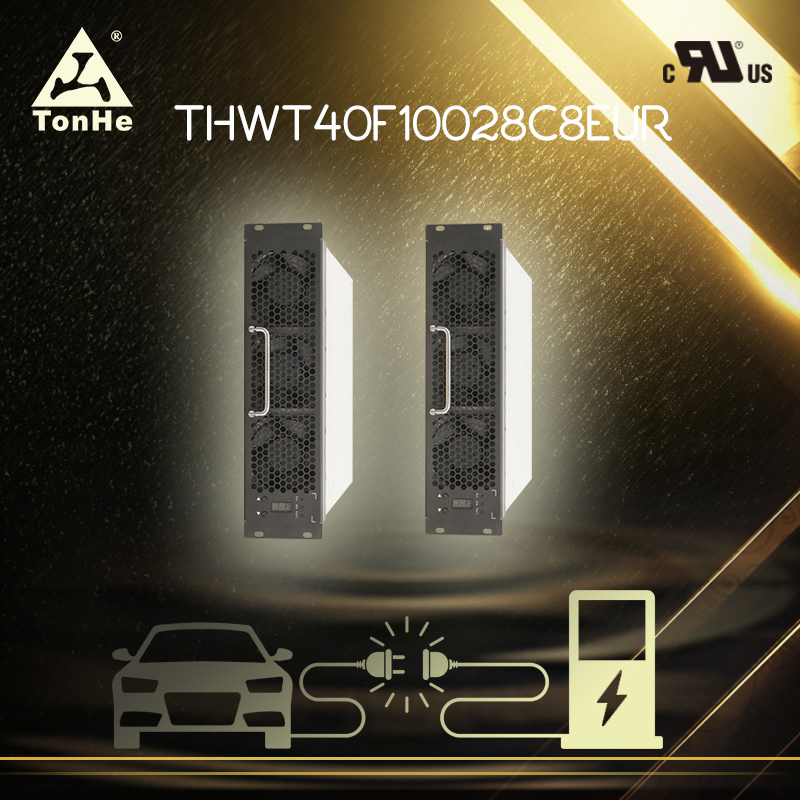

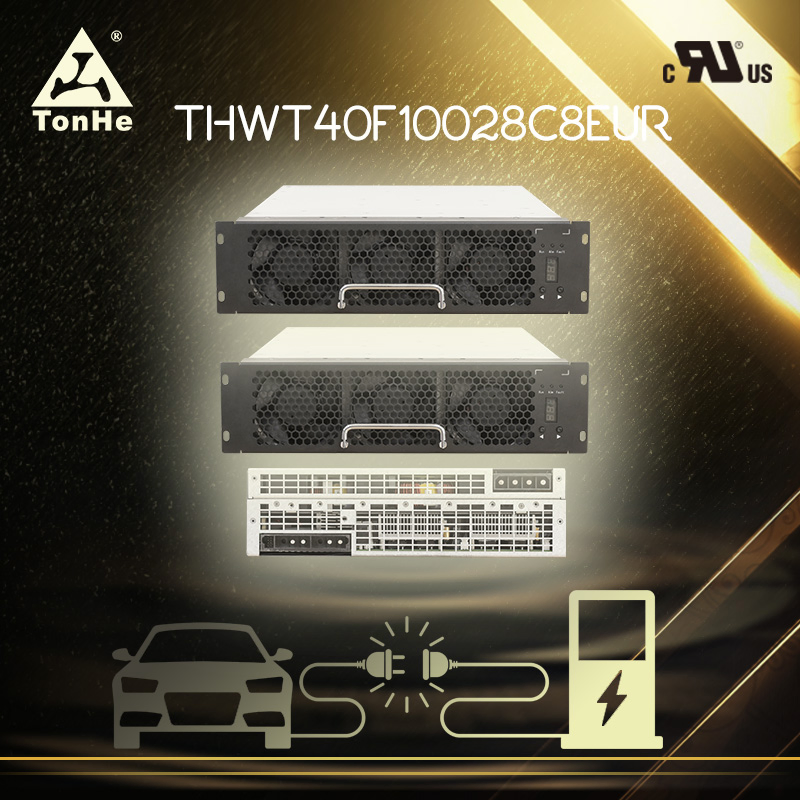

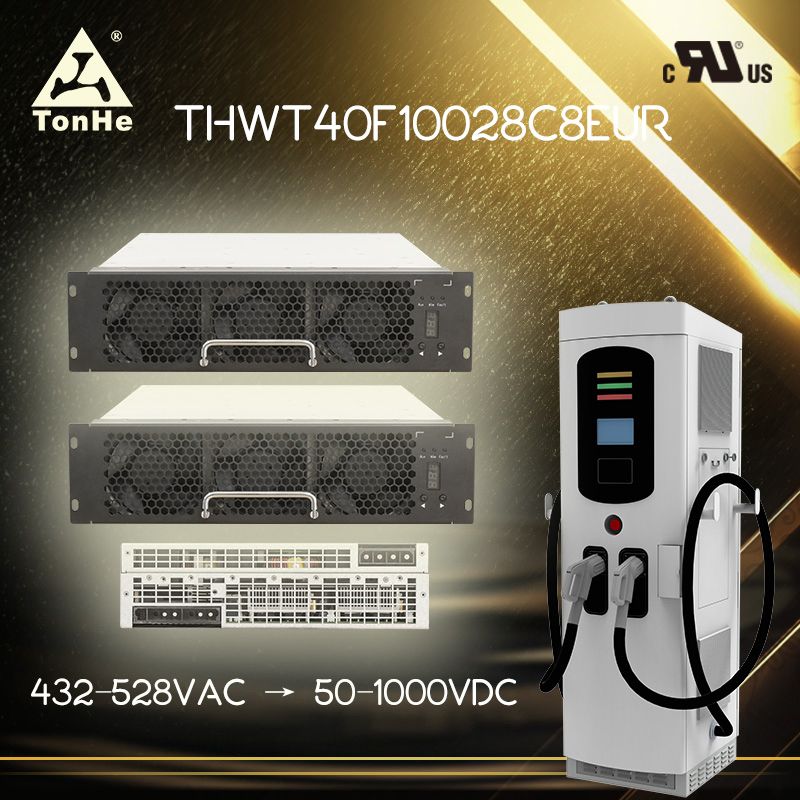

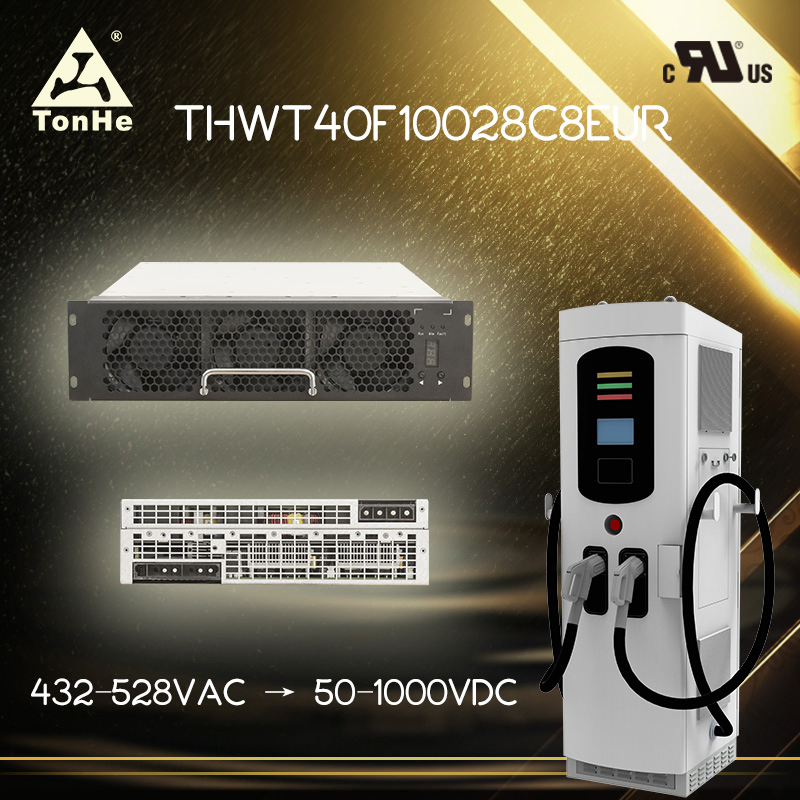

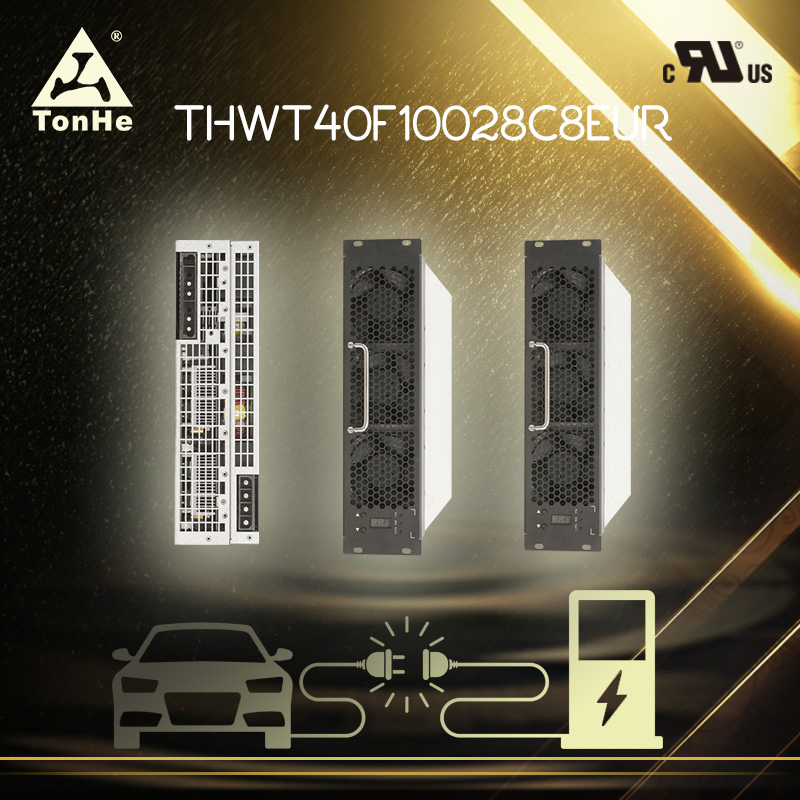

Tonhe Technology 1000V DC Fast Charger Module UL Certified 40kw EV Charging Module for EV Fast Charger
Tonhe Technology 1000V DC Fast Charger Module UL Certified 40kw EV Charging Module for EV Fast Charger
Tonhe Technology 1000V DC Fast Charger Module UL Certified 40kw EV Charging Module for EV Fast Charger
Tonhe Technology 1000V DC Fast Charger Module UL Certified 40kw EV Charging Module for EV Fast Charger
Tonhe Technology 1000V DC Fast Charger Module UL Certified 40kw EV Charging Module for EV Fast Charger
1 / 5
Tonhe Technology 1000V DC Fast Charger Module UL Certified 40kw EV Charging Module for EV Fast Charger
Tonhe Technology 1000V DC Fast Charger Module UL Certified 40kw EV Charging Module for EV Fast Charger
Tonhe Technology 1000V DC Fast Charger Module UL Certified 40kw EV Charging Module for EV Fast Charger
Tonhe Technology 1000V DC Fast Charger Module UL Certified 40kw EV Charging Module for EV Fast Charger
Tonhe Technology 1000V DC Fast Charger Module UL Certified 40kw EV Charging Module for EV Fast Charger

Tonhe Technology 1000V DC Fast Charger Module UL Certified 40kw EV Charging Module for EV Fast Charger

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.THWT40F10028C8EUR
InstallationFloor Type
Charge MethodQuick Charge
AC Voltage Range432-528VAC
DC Voltage Range50-1000VDC
CertificationTUV, CE, IATF, UL, ISO
Warranty12 Months
Capacity5000PCS / Month
Product Advantages
✔ Wide Input Voltage Range (AC): 432~528Vac
✔ Ultra-wide output regulation range (DC): 50~1000Vdc
✔ Full range constant power output: 250~1000Vdc
✔ High Efficiency: Fully loaded ≥ 95%
✔ Operating Temperature Range: -30ºC~+65ºC

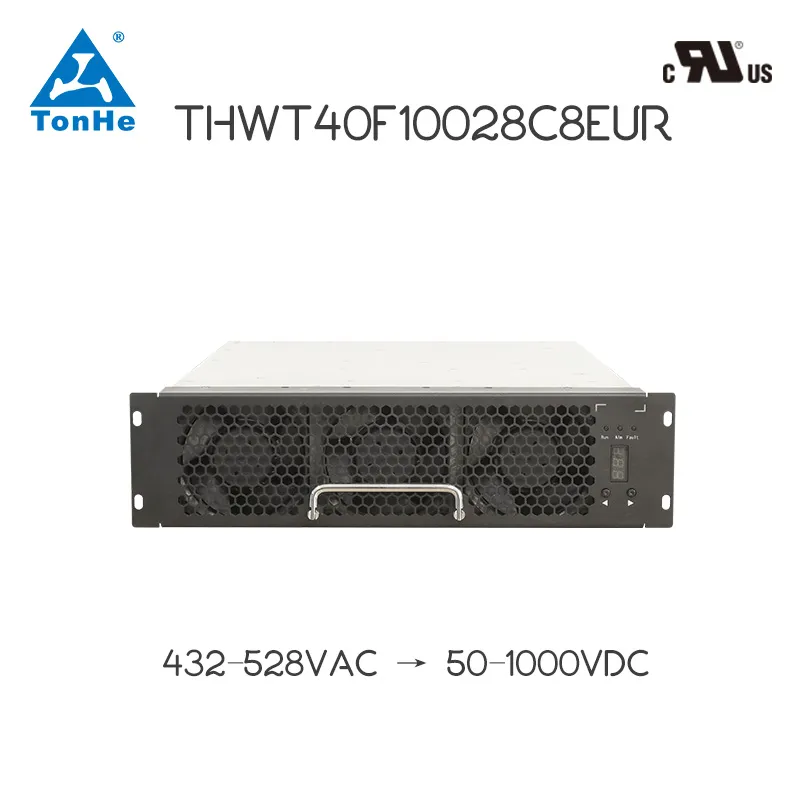

DC Fast Charger Module

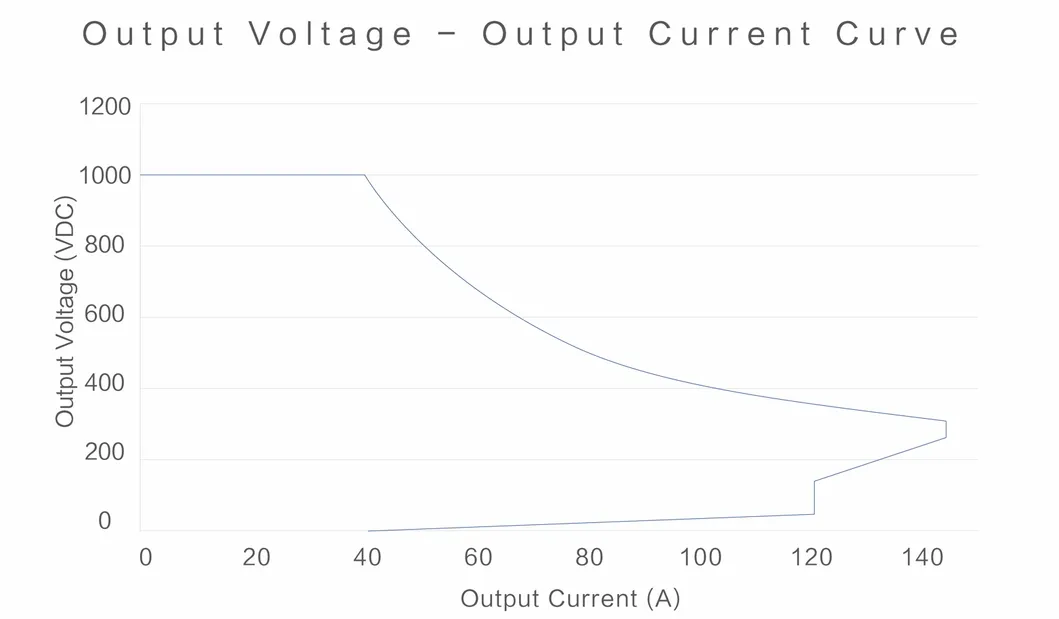

EV Charging Module Technical Detail
Technical Specifications
Model: THWT40F10028C8EUR
Working Temperature -40ºC~+75ºC
Standby Power Consumption <10W
Dimension (D x W x H) 437.5mm x 300mm x 84mm
AC Input
Input Voltage Rated 480VAC, 3W+PE (Range: 432-528VAC)
Input Frequency 50/60Hz±10%
Power Factor ≥0.99
DC Output
Rated Output Power 40kW
Output Voltage Range 50-1000VDC
Output Current Range 0.5-143A
Peak Efficiency ≥ 96%
Packaging & Shipping
Product Packaging

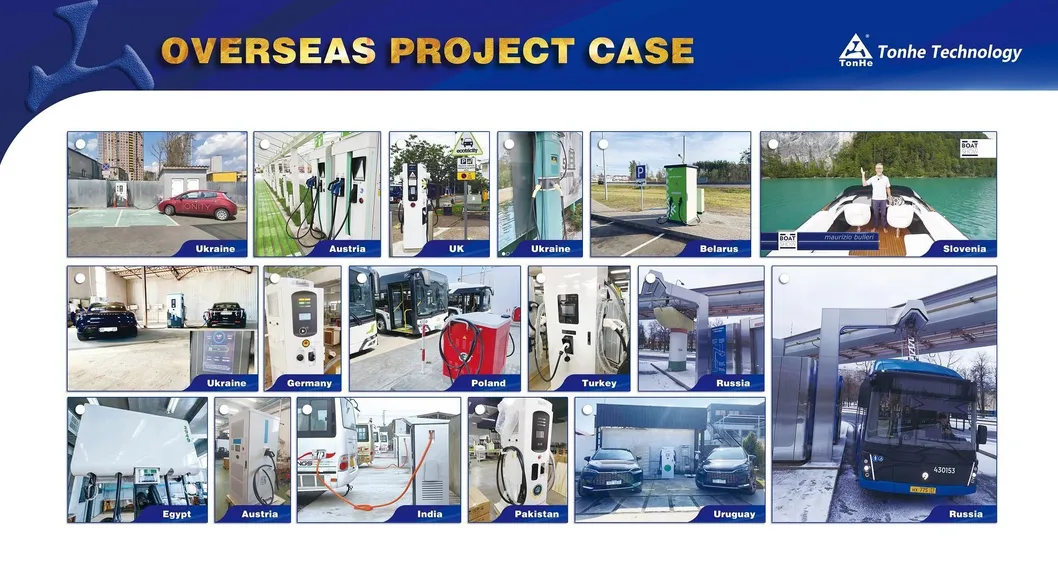

Logistics Shipping
About the Technology

Focusing on the field of high-frequency power conversion technology, the enterprise is a pioneer in realizing soft switching technology for the whole process of power conversion. We provide customers with "One-Stop Service" including R&D guidance, system solutions, technical training, and after-sales services.

Technology Center
Manufacturing & Testing

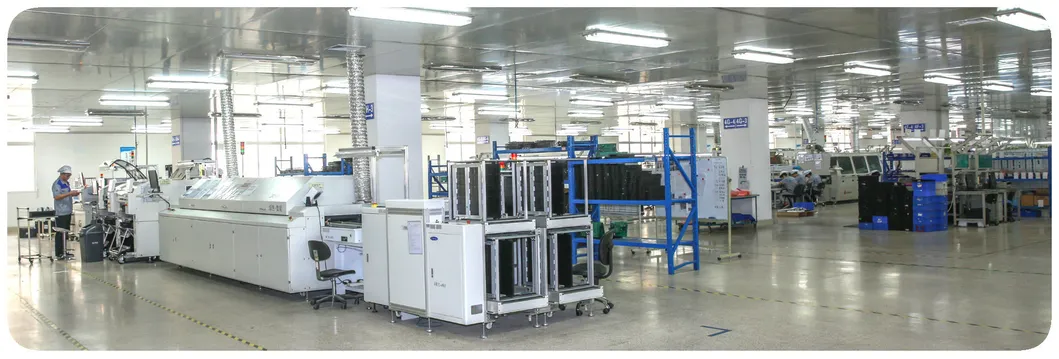

Manufacturing Workshop

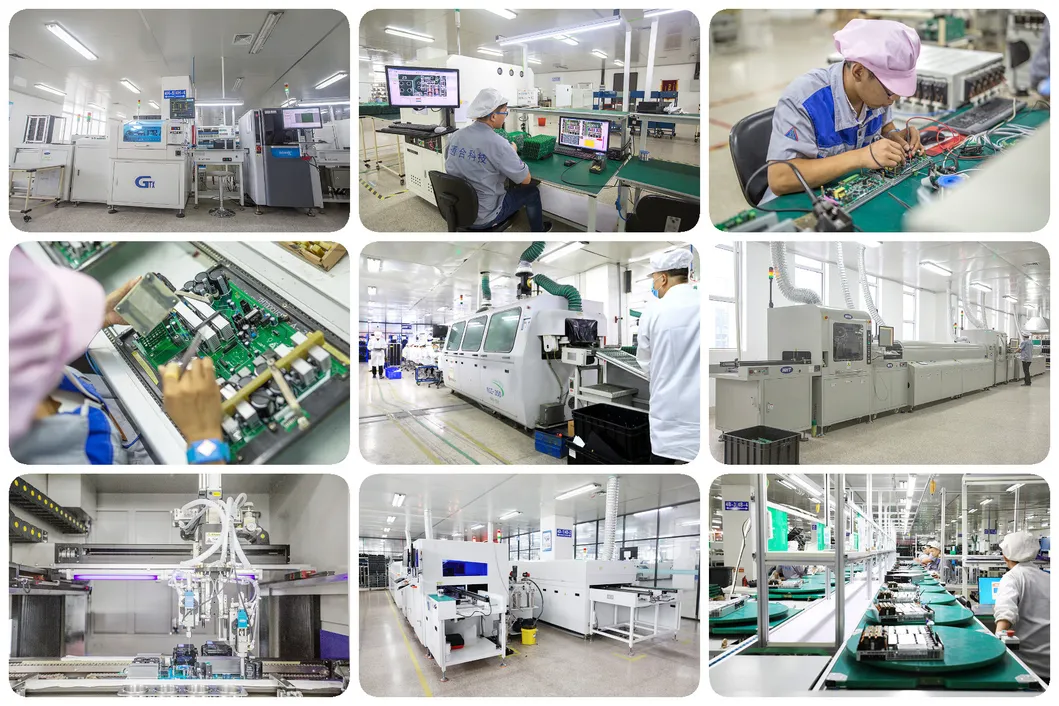

Production Line

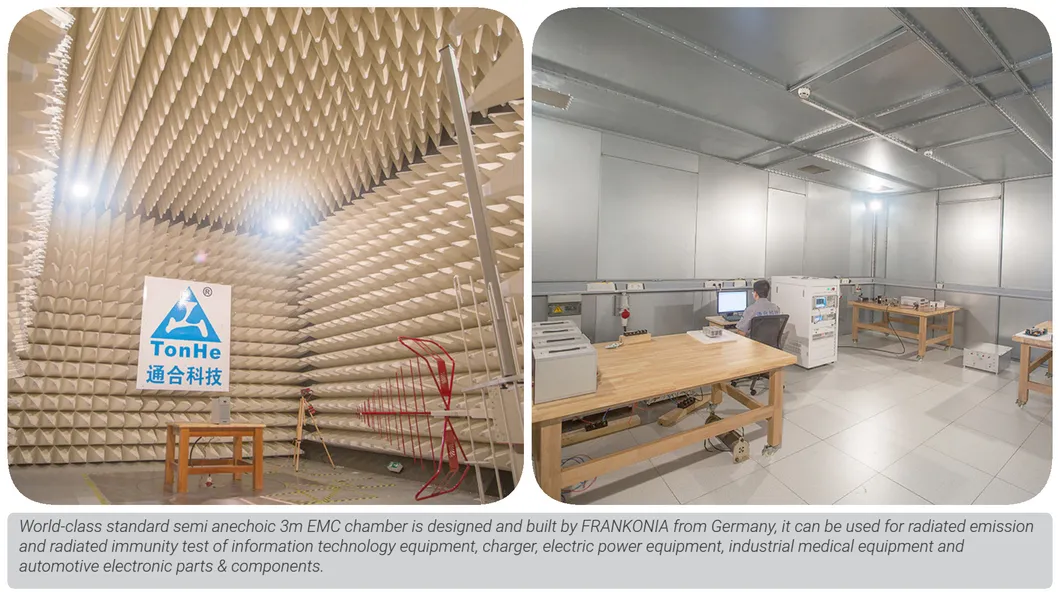

Testing Lab 1

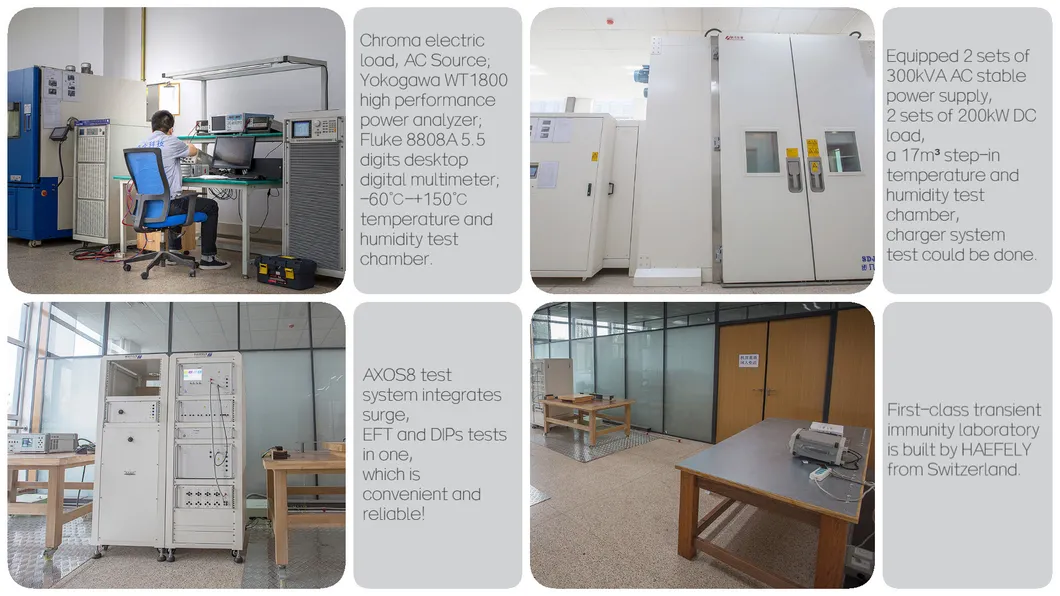

Testing Lab 2
Certifications & Customer Negotiations
Product Certifications
Customer Cooperation
Frequently Asked Questions
What are the module CAN baud rate and CAN voltage level?
The parameters are 125Kbs and 5V.
Do the modules support glue filling?
Yes, all series modules can support glue filling for enhanced protection.
What are the installation method requirements?
The charging module can be installed horizontally, side-standing, or upside down. For upside-down installation, please request a front panel without a handle.
How do you handle shipments?
Small orders are shipped via FedEx, DHL, or UPS. Large shipments are handled by sea or air in containers.
What is the standard delivery time?
Approximately 7 days for modules and 35 days for standard piles. Customized orders require specific coordination.
How long is the warranty period?
Standard warranty is 12 months upon receipt of shipment.
