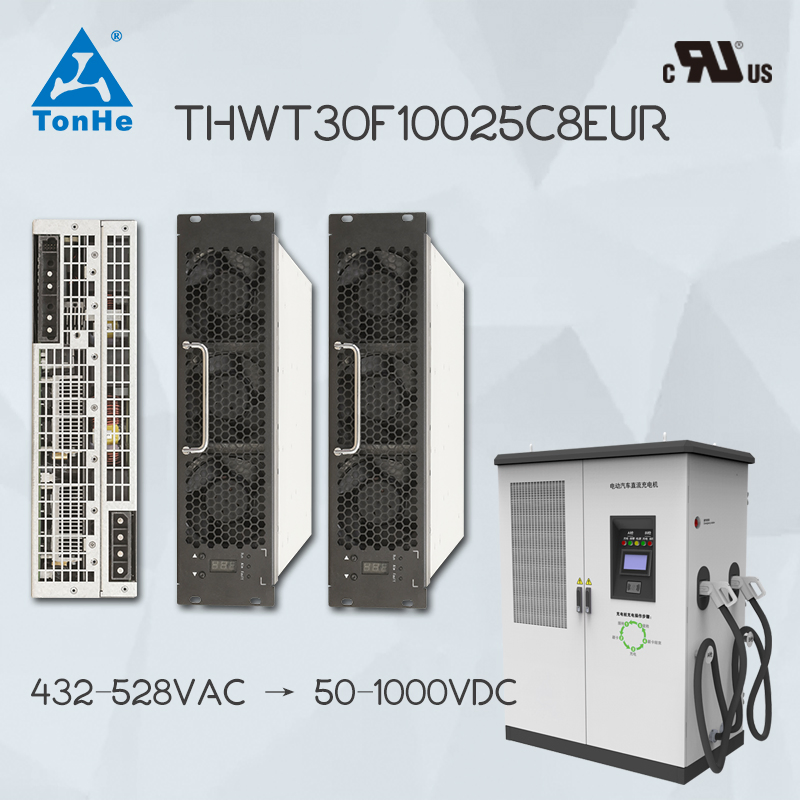

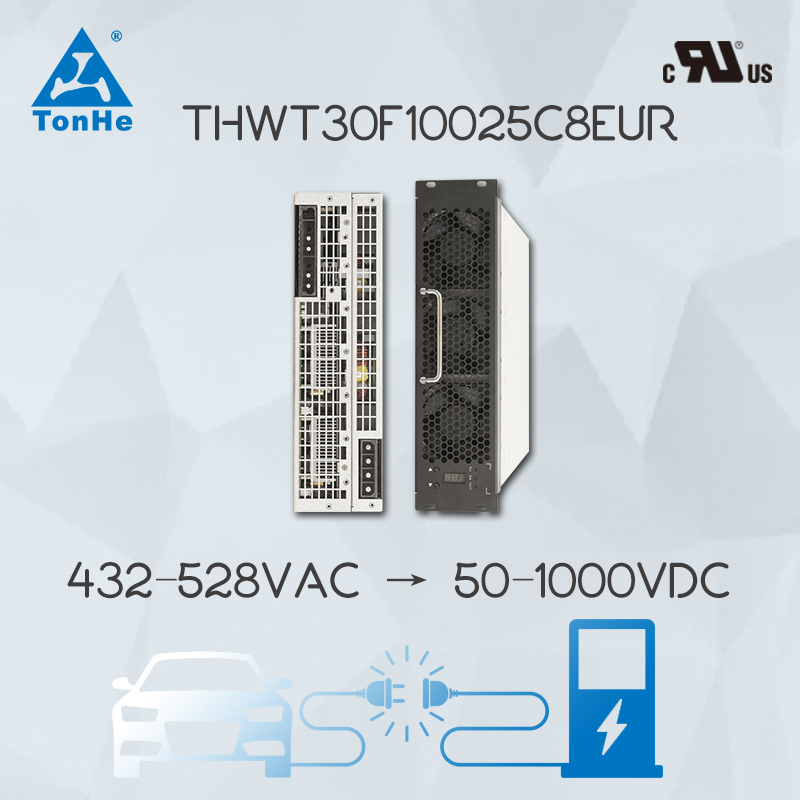

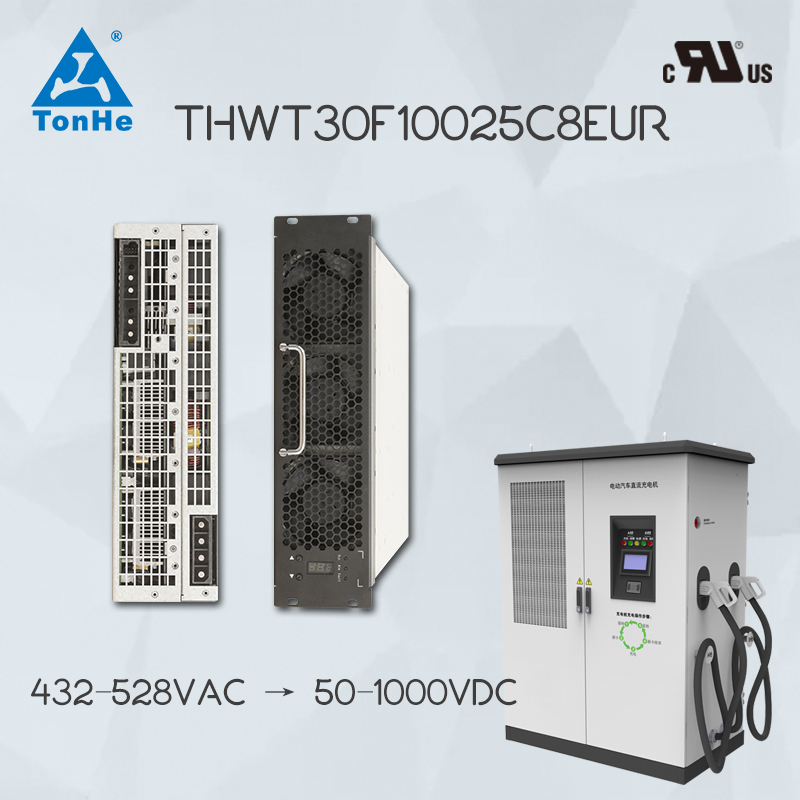

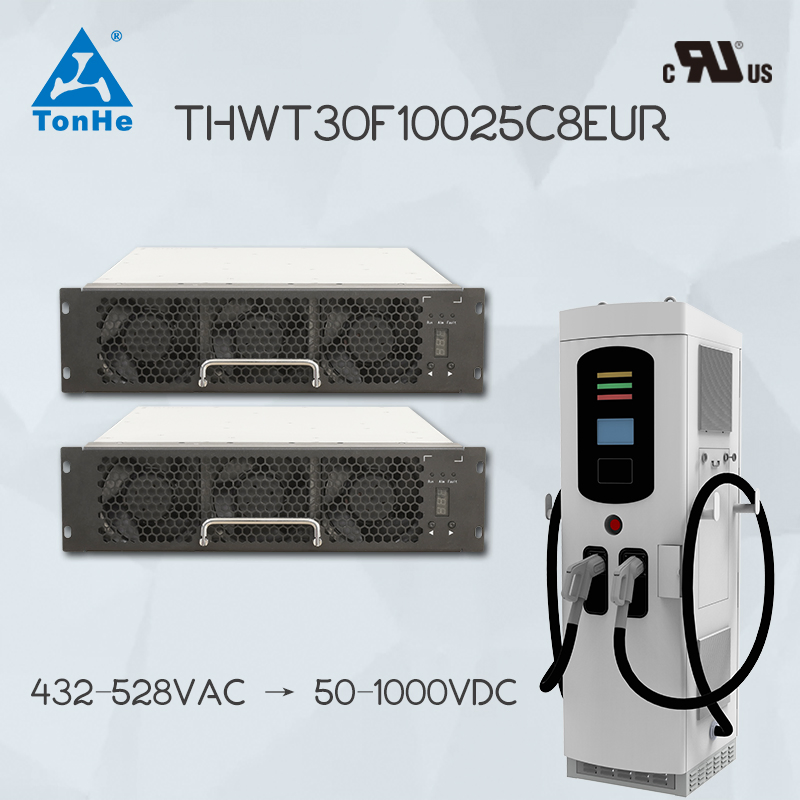

Tonhe Technology UL Certified 30kw Power Module Thwt30f10025c8EUR for DC Fast Charger DC Charging Station
Tonhe Technology UL Certified 30kw Power Module Thwt30f10025c8EUR for DC Fast Charger DC Charging Station
Tonhe Technology UL Certified 30kw Power Module Thwt30f10025c8EUR for DC Fast Charger DC Charging Station
Tonhe Technology UL Certified 30kw Power Module Thwt30f10025c8EUR for DC Fast Charger DC Charging Station
Tonhe Technology UL Certified 30kw Power Module Thwt30f10025c8EUR for DC Fast Charger DC Charging Station
1 / 5
Tonhe Technology UL Certified 30kw Power Module Thwt30f10025c8EUR for DC Fast Charger DC Charging Station
Tonhe Technology UL Certified 30kw Power Module Thwt30f10025c8EUR for DC Fast Charger DC Charging Station
Tonhe Technology UL Certified 30kw Power Module Thwt30f10025c8EUR for DC Fast Charger DC Charging Station
Tonhe Technology UL Certified 30kw Power Module Thwt30f10025c8EUR for DC Fast Charger DC Charging Station
Tonhe Technology UL Certified 30kw Power Module Thwt30f10025c8EUR for DC Fast Charger DC Charging Station

Tonhe Technology UL Certified 30kw Power Module Thwt30f10025c8EUR for DC Fast Charger DC Charging Station

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
THWT30F10025C8EUR
Location
Public Use
Interfaces
One Pile with Multiple Charges
Start Mode
RFID Authentic
AC Voltage
432-528VAC
DC Voltage
50-1000VDC
Type
EV Charging Station
Certification
TUV, CE, IATF, UL, ISO
Warranty
12 Months
Capacity
5000PCS / Month
Product Advantages
·
Wide Input Voltage Range (AC): 432~528Vac
·
Ultra-wide output regulation range (DC): 50~1000Vdc
·
Full range constant power output: 250~1000Vdc
·
High Efficiency: fully loaded ≥ 95%
·
Wide Operating Temperature: -30ºC~+65ºC

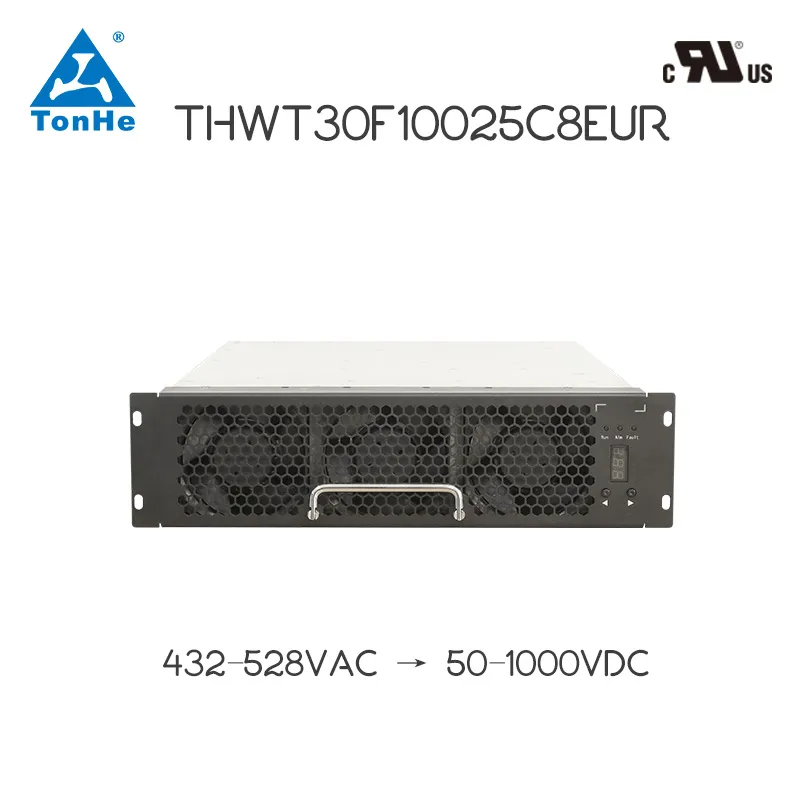

Power Module 1

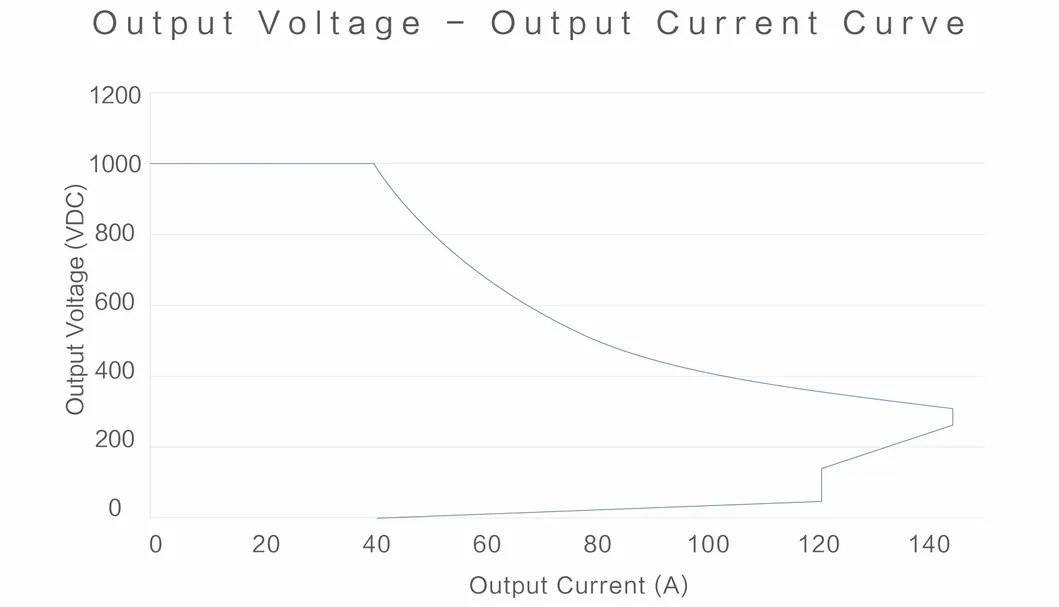

Power Module 2
Technical Specifications
Model: THWT30F10025C8EUR
Working Temperature-40ºC~+75ºC
Standby Power Consumption<10W
Dimension (D x W x H)437.5mm x300mm x84mm
AC Input
Input VoltageRated 480VAC (Range 432-528VAC)
Input Frequency50/60Hz±10%
Input Power Factor≥0.99
DC Output
Rated Output Power30kW
Output Voltage Range50-1000VDC
Output Current Range0.5-120A
Peak Efficiency≥ 96%
Packaging & Shipping
Packaging

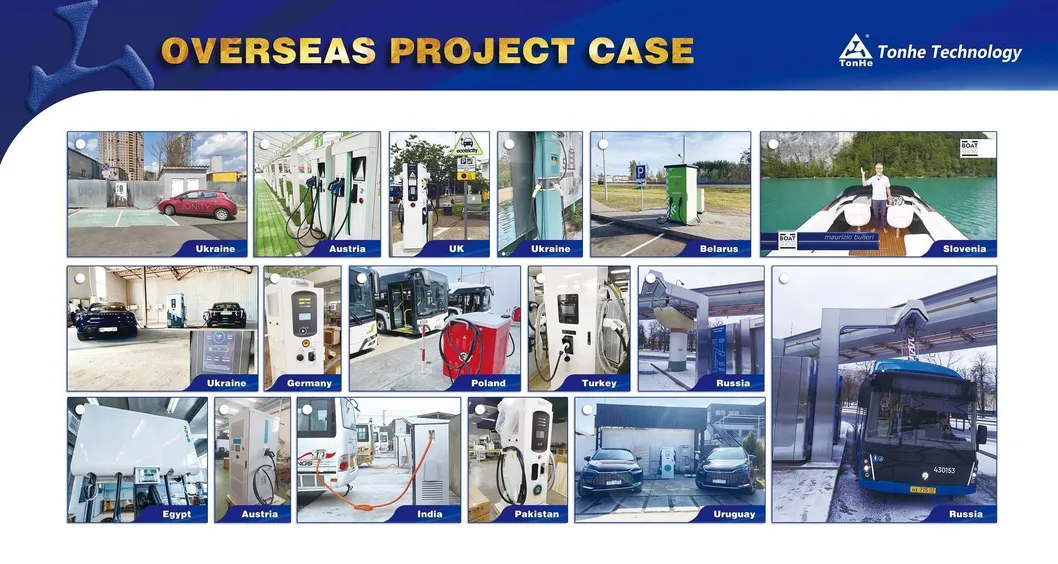

Shipping
Enterprise Profile

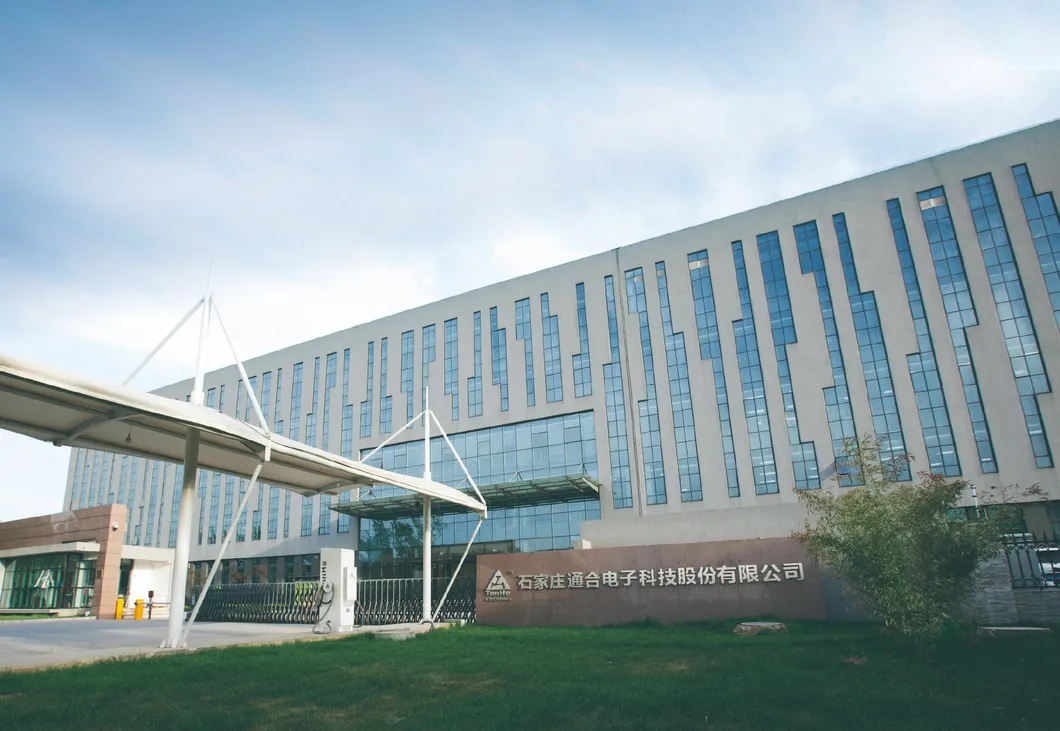

Enterprise Facility
The enterprise sticks to technological innovation, focusing on the field of high-frequency power conversion technology. As a pioneer in realizing soft switching technology for the whole process of power conversion, the company holds numerous internationally advanced core technologies.

In the EV charging and swapping industry, we are committed to providing "One-Stop Service" including R&D guidance, system solutions, technical training, and professional after-sales support.
Manufacturing & Testing

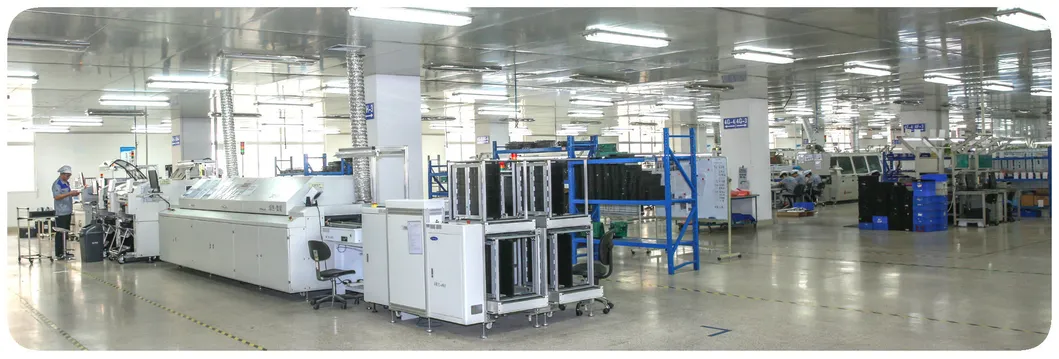

Workshop 1

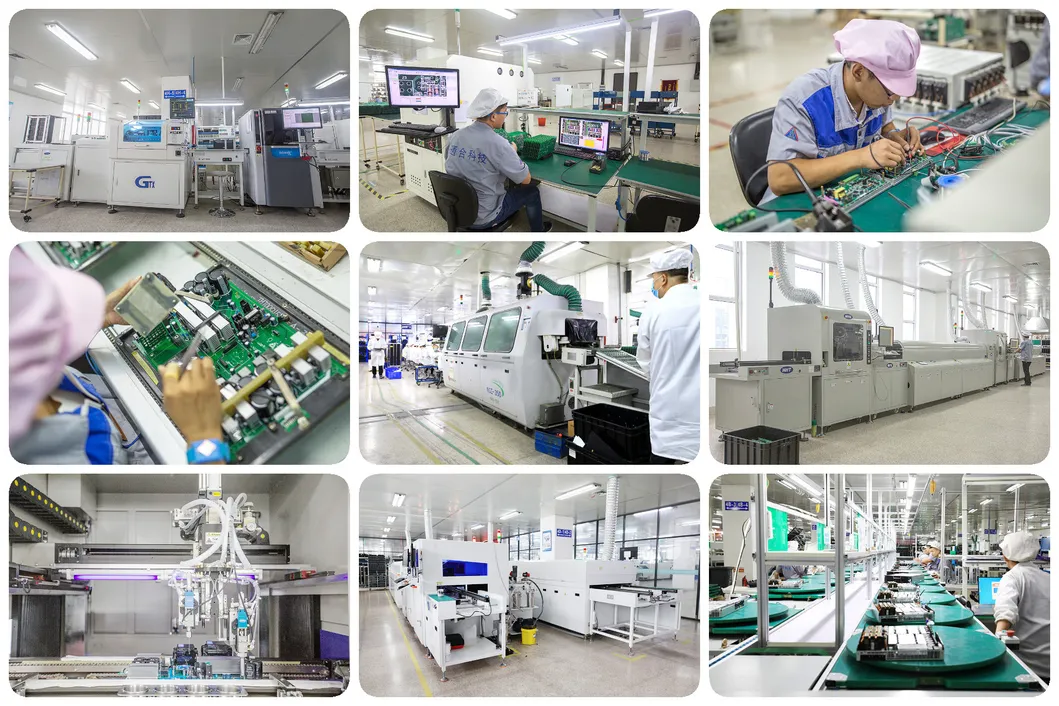

Workshop 2

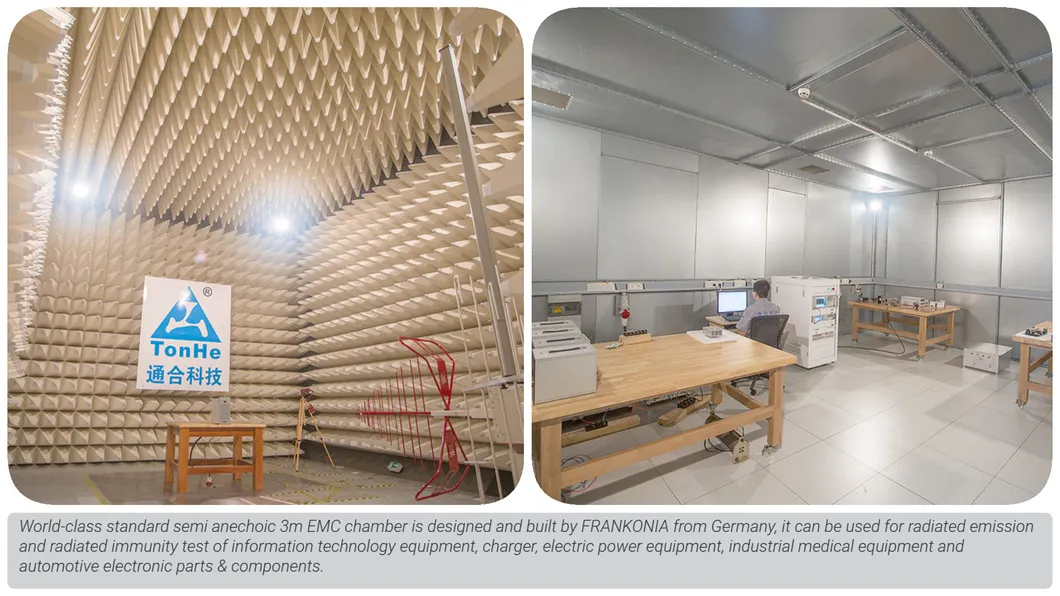

Testing Lab 1

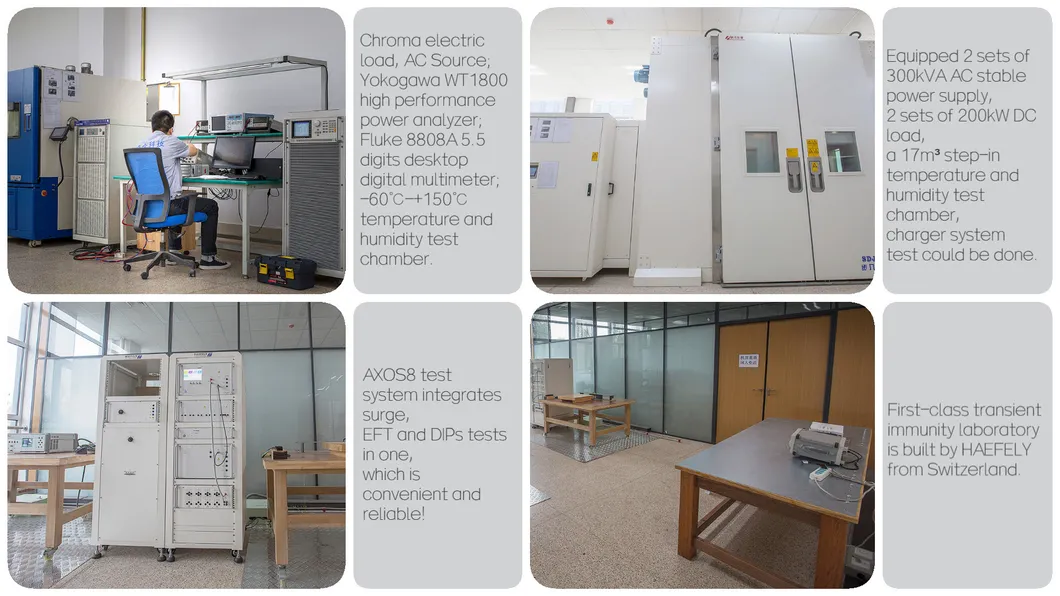

Testing Lab 2
Certifications
Certificates
Frequently Asked Questions
What are the module CAN baud rate and CAN voltage level?
The standard is 125Kbs 5V.
Do the modules support glue filling?
Yes, all series modules can support glue filling for enhanced durability.
What are the installation requirements for the charging module?
Modules can be installed horizontally, side standing, or upside down. For upside-down installation, a customized front panel without a handle is recommended.
How are shipments handled?
Small orders are sent via express services like FedEx, DHL, or UPS (door-to-door). Large shipments are handled by sea or air in containers.
What is the typical delivery time?
Approximately 7 days for modules and 35 days for standard charging piles. Large or customized orders may require additional coordination.
What is the standard warranty period?
The standard warranty is 12 months upon receipt of the shipment.
