5kwh 10kwh Residential Use Integrated Solar System All in One Solar Light Battery LiFePO4 Ess Batteries for Storage

Overview & Basic Information

Product Name	Parallel Solar Energy Storage System 5kw
Power Capacity	5.12kwh, 7.68kwh, 10kwh, 20kwh options
Battery Model	Grade A Lithium Cells
Rated Voltage	51.2V
Inverter	Hybrid Single Phase 5kw Included
Certifications	CE, MSDS, Un38.3, Dangerous Package Certificate
Cycle Life	≥6000 cycles
Communication	RS485, CAN
Application	Solar Energy, Wind Energy, UPS Storage

Product Description

🏠All-in-One Integrated Solar ESS

This integrated residential solar system is designed for high energy density and space-saving efficiency. Featuring a plug-and-use design, it combines lithium batteries and a hybrid inverter into one sleek unit.

Key Features:

8 Years Long Warranty
Safe LFP (LiFePO4) Battery Chemistry
Natural Convection Cooling
Max parallel support up to 16 units (80KWH)
IP54 Protection Level

Technical Specifications

Nominal Capacity	51.2V 100Ah / 150Ah / 200Ah
Working Temp	-15°C ~ 55°C
Max Charge Current	1C
Dimensions	60cm (L) x 21cm (T) x 160cm (H)
Weight	Approx. 180kg
Designed Life	> 10 Years

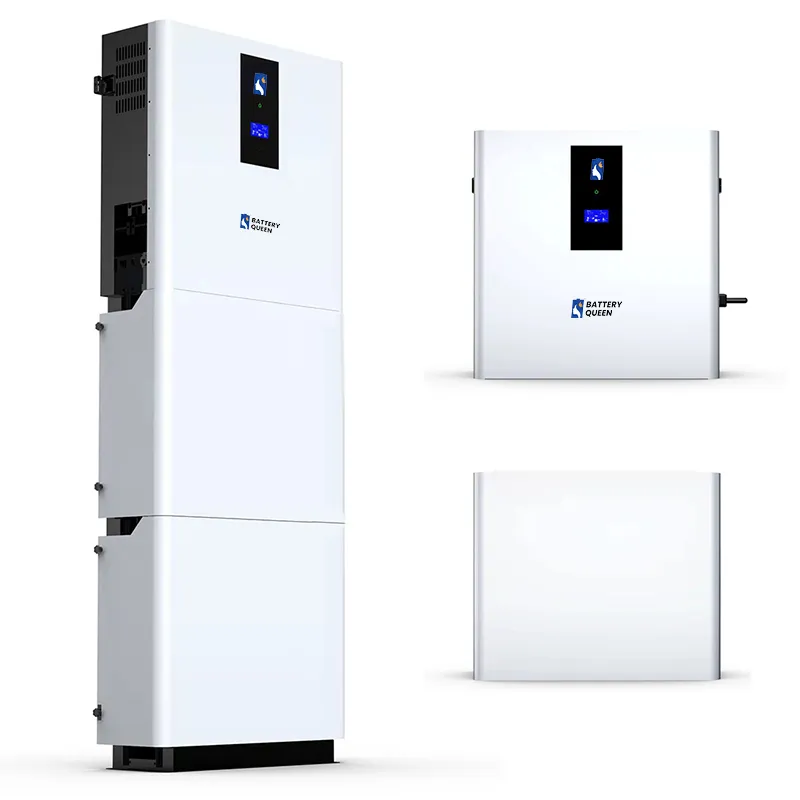

Product Showcase

Application Areas

This system is suitable for a wide range of energy storage needs, ensuring independence from the grid and reliable backup power.

Packaging & Shipping

Each battery is protected with high-density foam and thick cartons to ensure safety during transit. Global shipping support from multiple regional warehouses.

Global Logistics Support: Available for shipment from China, USA, and Poland warehouses.

Quality Assurance & Promises

Guaranteed "Real" lithium capacity.

100% refund for quality-related problems.

100% replacement for any shipping damage.

Lifetime fast technical support.

Fair and transparent pricing.

Premium Grade A battery cells.

FAQ

1. Is the output mode adjustable on the machine?

Yes, we provide a manual to guide you through setting up parameters. The factory also performs pre-configuration before delivery, but you can customize settings yourself.

2. What does "PV Failure" mean?

It refers to situations where the PV power is insufficient (e.g., at night or on cloudy days). When the PV voltage is lower than the battery's demand, the system uses AC power from the grid to charge.

3. If set to PV Priority and PV fails, how is the battery charged?

PV priority uses solar energy first to save costs. If PV energy is unavailable, the system automatically switches to AC power (on-grid) to charge the battery and power appliances.

4. What is the difference between PV Priority and Inverter Priority?

In Inverter Priority mode, both PV and AC power pass through the inverter to provide energy. This ensures the appliance is always controlled by the system's management, even when switching power sources.

5. Does the machine support communication interfaces?

Yes, the system is equipped with RS485 and CAN communication interfaces as per our technical specifications.

6. What happens if the inverter or battery is damaged?

If the inverter is damaged, connected appliances lose power. If only the battery is damaged but the inverter is functional, appliances can still run on AC grid power. We recommend a manual transfer switch for critical installations.
