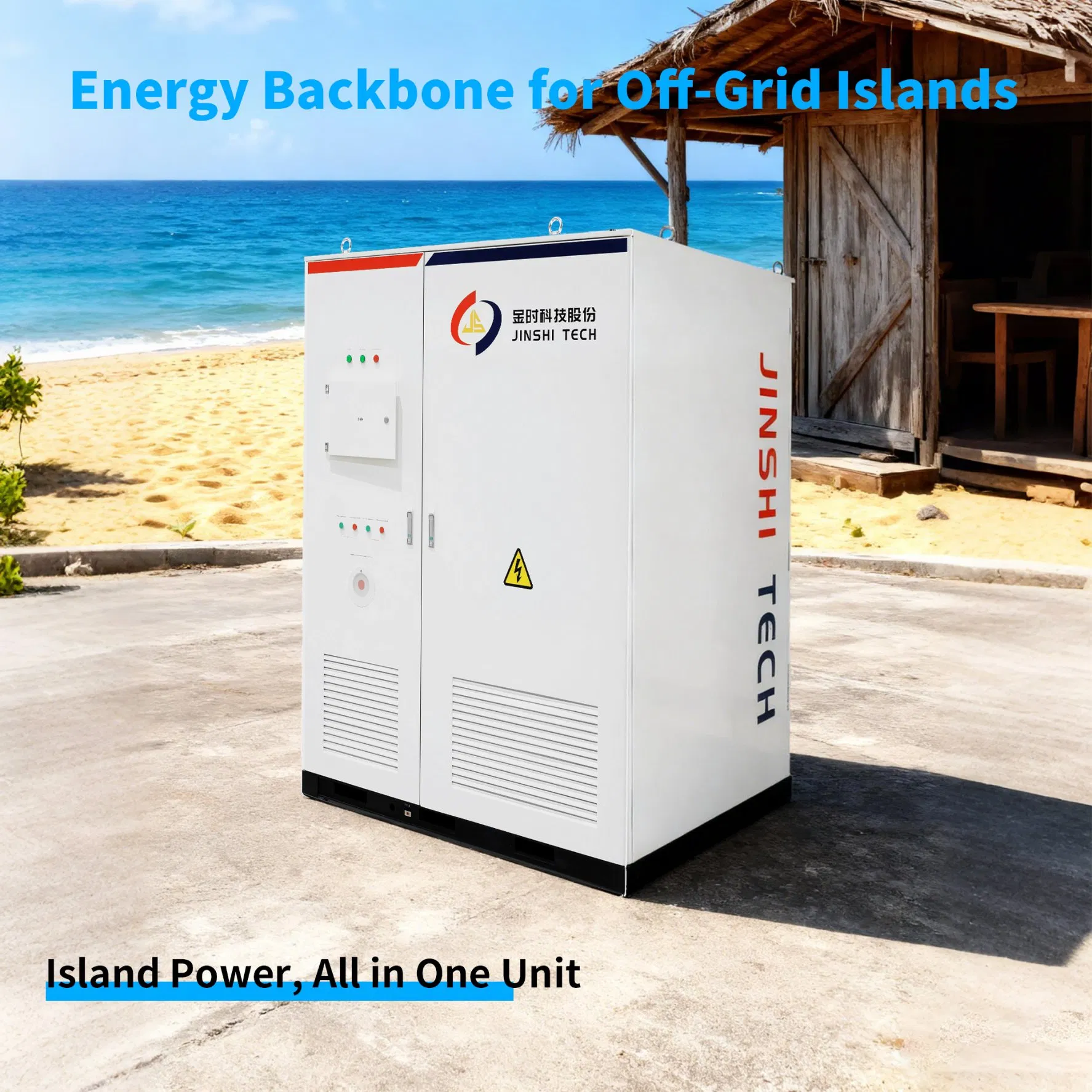

OEM ODM Customized Integrated and off Grid Hybrid Solar Cell Outdoor Cabinet Energy Storage System Solution

1 / 5

OEM ODM Customized Integrated and off Grid Hybrid Solar Cell Outdoor Cabinet Energy Storage System Solution

Customization:	Available
Nominal Voltage:	832V
Warranty:	2 Year

Send Inquiry

Product Description

Basic Specifications

Model NO.

Smart PV-ESS All-in-One Unit-a-A

Nominal Capacity

314Ah

Cycle Life

6000 Cycles

Rated Power

125kW

Overload Capacity

110% Long-Term

Max PV Power

125kW

Rated Voltage

832V

Battery Energy

261kWh

Cooling System

Intelligent Liquid Cooling

Protection Level

IP54

Production Capacity

500 pieces/Year

HS Code

8537109090

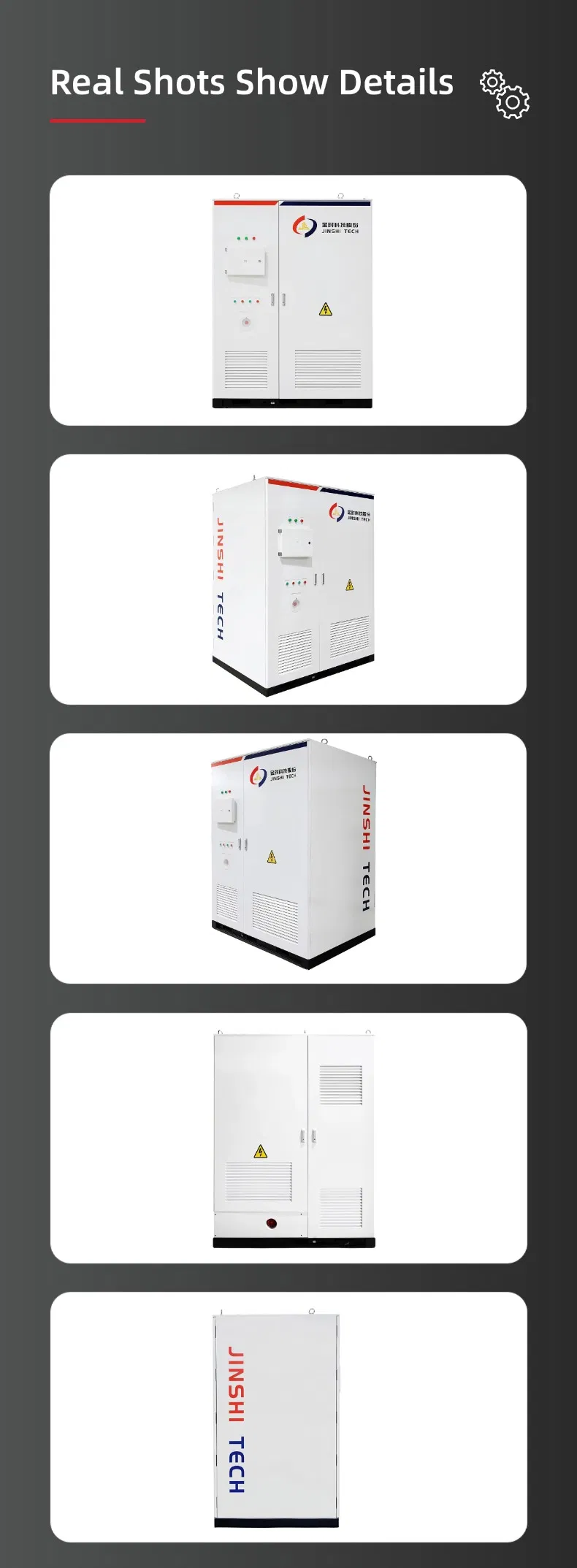

Product Visuals

Detailed Parameters

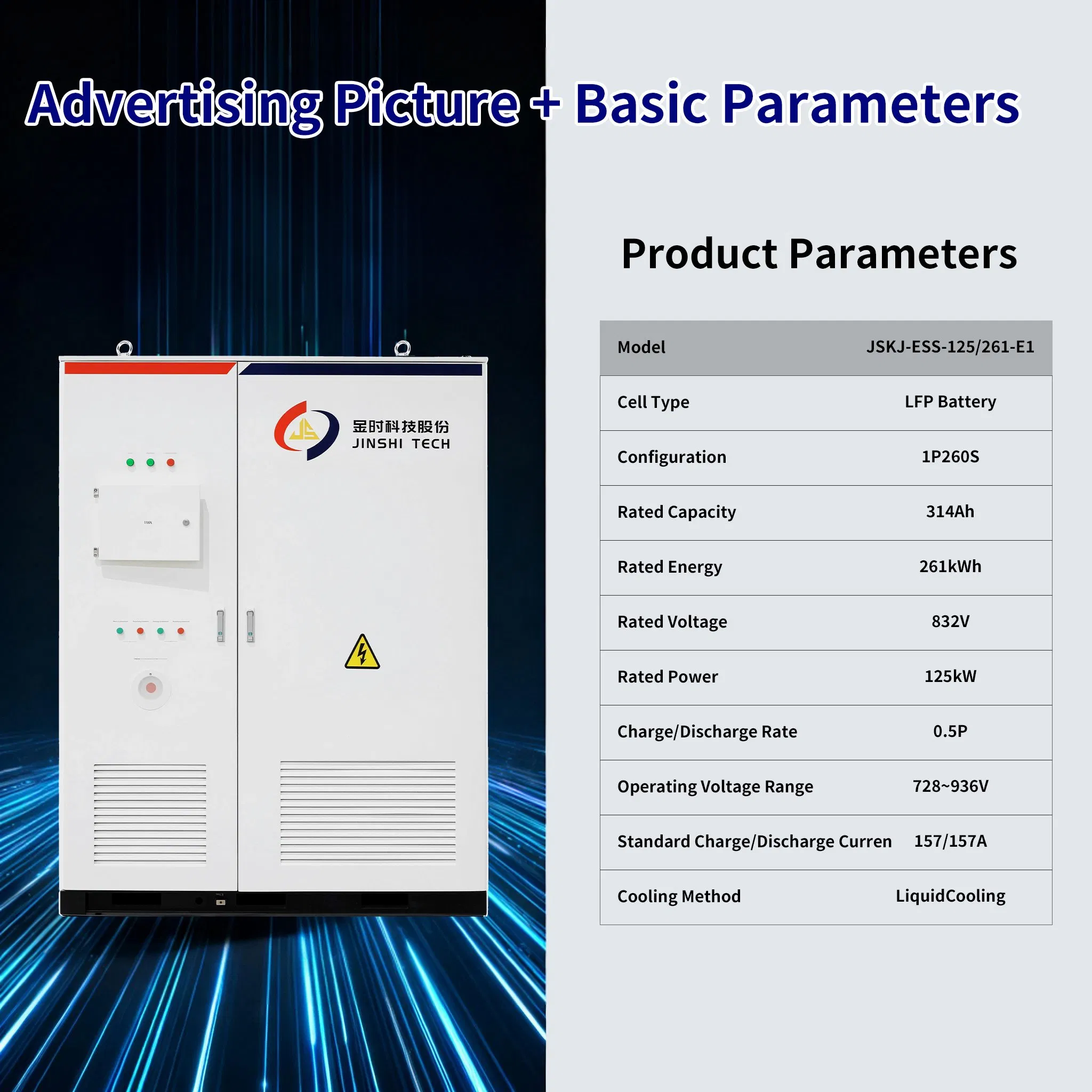

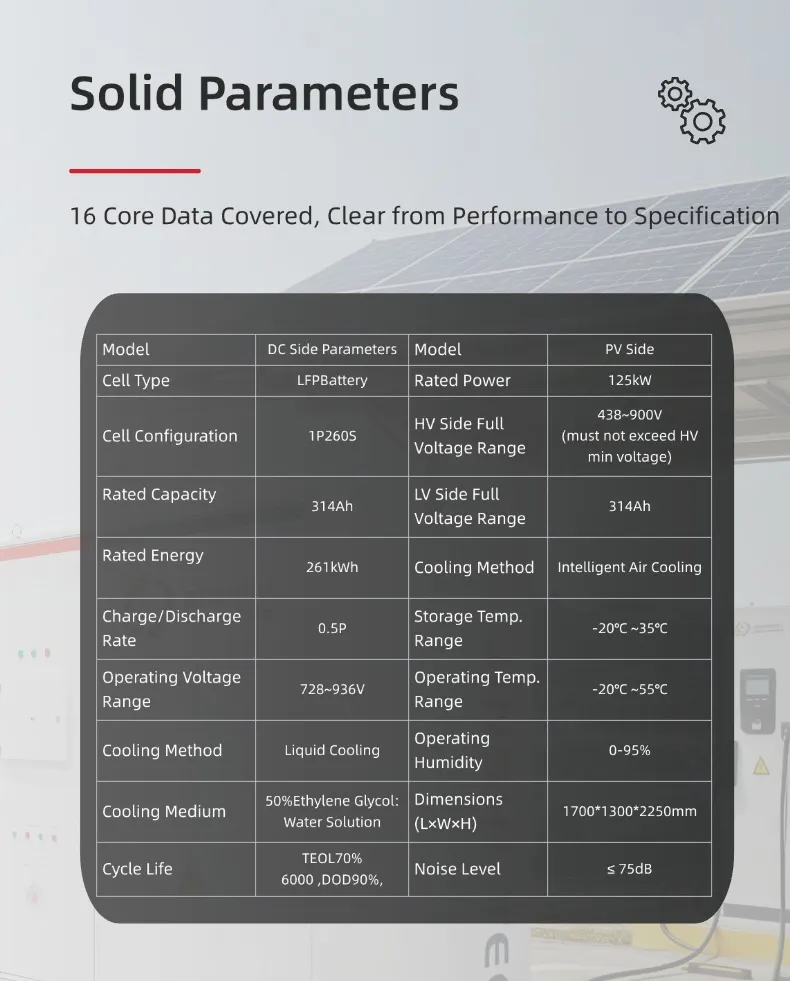

Technical Data Sheet
Cell Type	LFP Battery (3.2V/314Ah)
Configuration	1P260S
Rated Capacity	314Ah
Rated Energy	261kWh
Rated Voltage	832V
Rated Power	125kW
Operating Voltage Range	728~936V
Standard Charge/Discharge Current	157/157A
Cooling Method	Intelligent Liquid Cooling
Maximum Efficiency	99%
Packaging Size	170.00cm * 130.00cm * 225.00cm
Gross Weight	3000.00kg

Frequently Asked Questions

?What is the storage capacity of the Smart PV-ESS Unit?

The unit has a nominal capacity of 314Ah and a total rated energy storage of 261kWh.

?What is the expected lifespan of the battery system?

The system features a high-performance LFP battery with a cycle life of approximately 6000 cycles.

?How is the temperature regulated within the cabinet?

It utilizes an intelligent liquid cooling system to maintain optimal operating temperatures and ensure maximum efficiency.

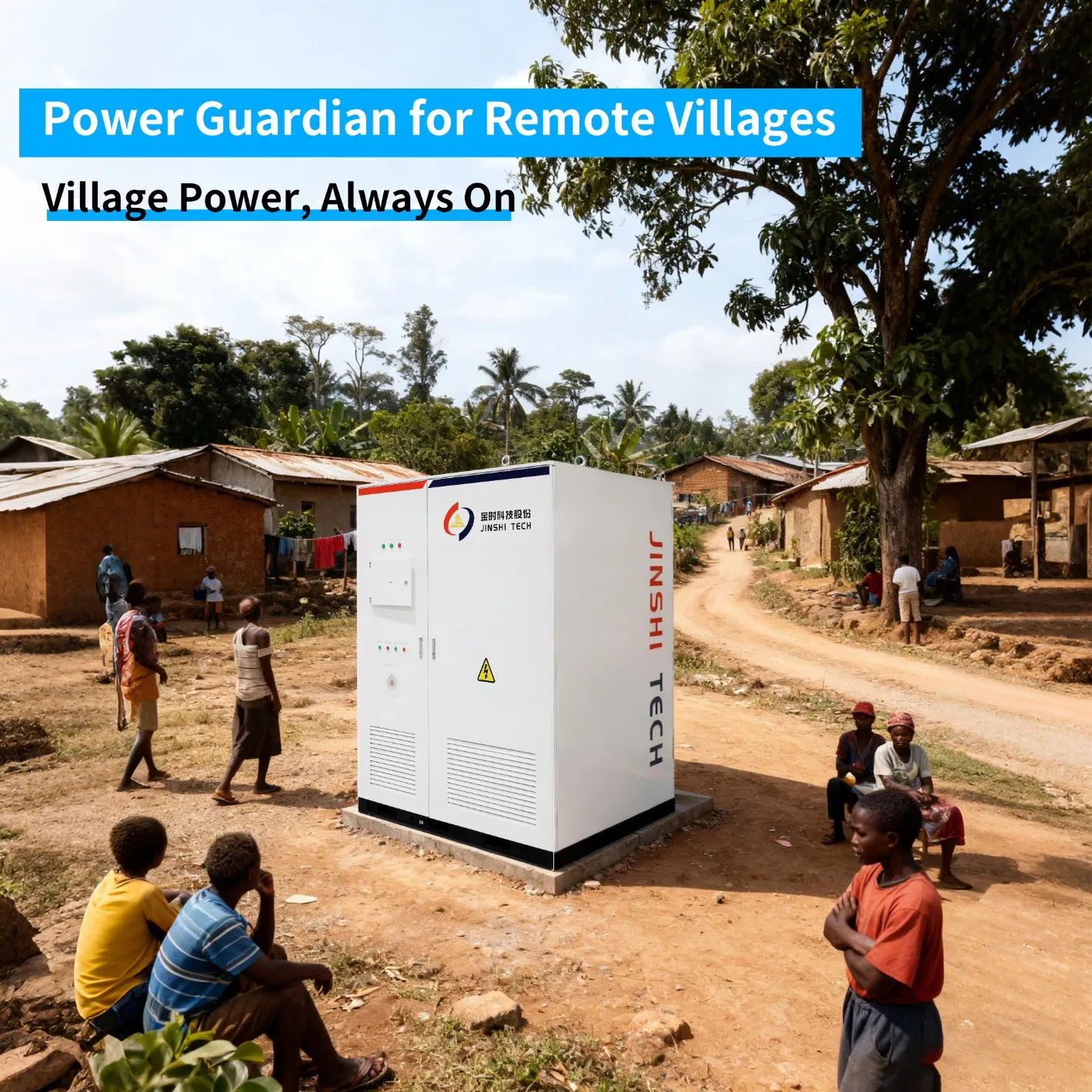

?Is the system suitable for outdoor installation?

Yes, the unit is designed with an IP54 protection level, making it suitable for outdoor environments.

?What safety features are included in the cabinet?

The system includes a fire protection system options such as Perfluorohexane or Aerosol for enhanced safety.

?What are the dimensions and weight for shipping?

The package size is 170cm x 130cm x 225cm with a gross weight of approximately 3000kg.
