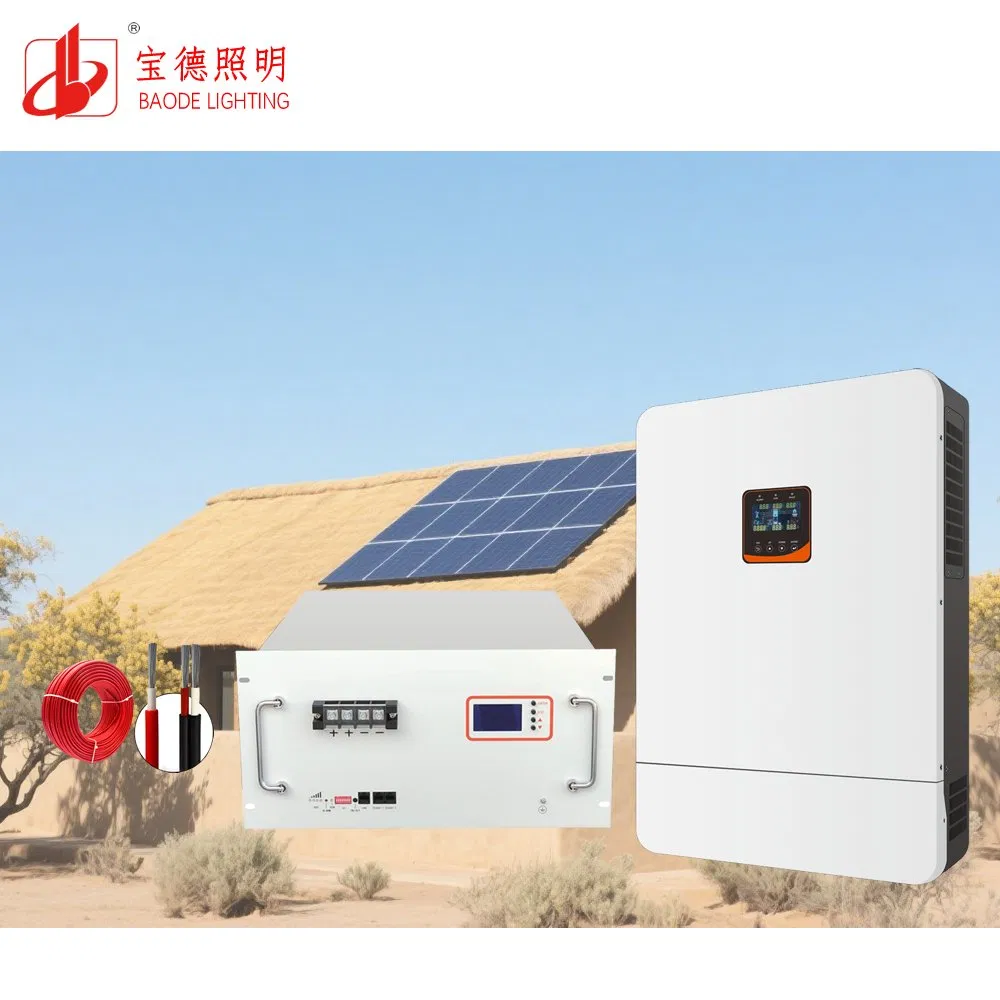

Customizable 5kw 10kwh Residential Solar Energy Storage System

1 / 5

Customizable 5kw 10kwh Residential Solar Energy Storage System

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

5kw 10kwh

Cycle Life

6000 Pieces

Nominal Capacity

10kwh

Application

Home

Type

Off-Grid

Solar Panel

Mono Type

Battery

Lithium

Production Capacity

50000 Pieces/Year

Product Description

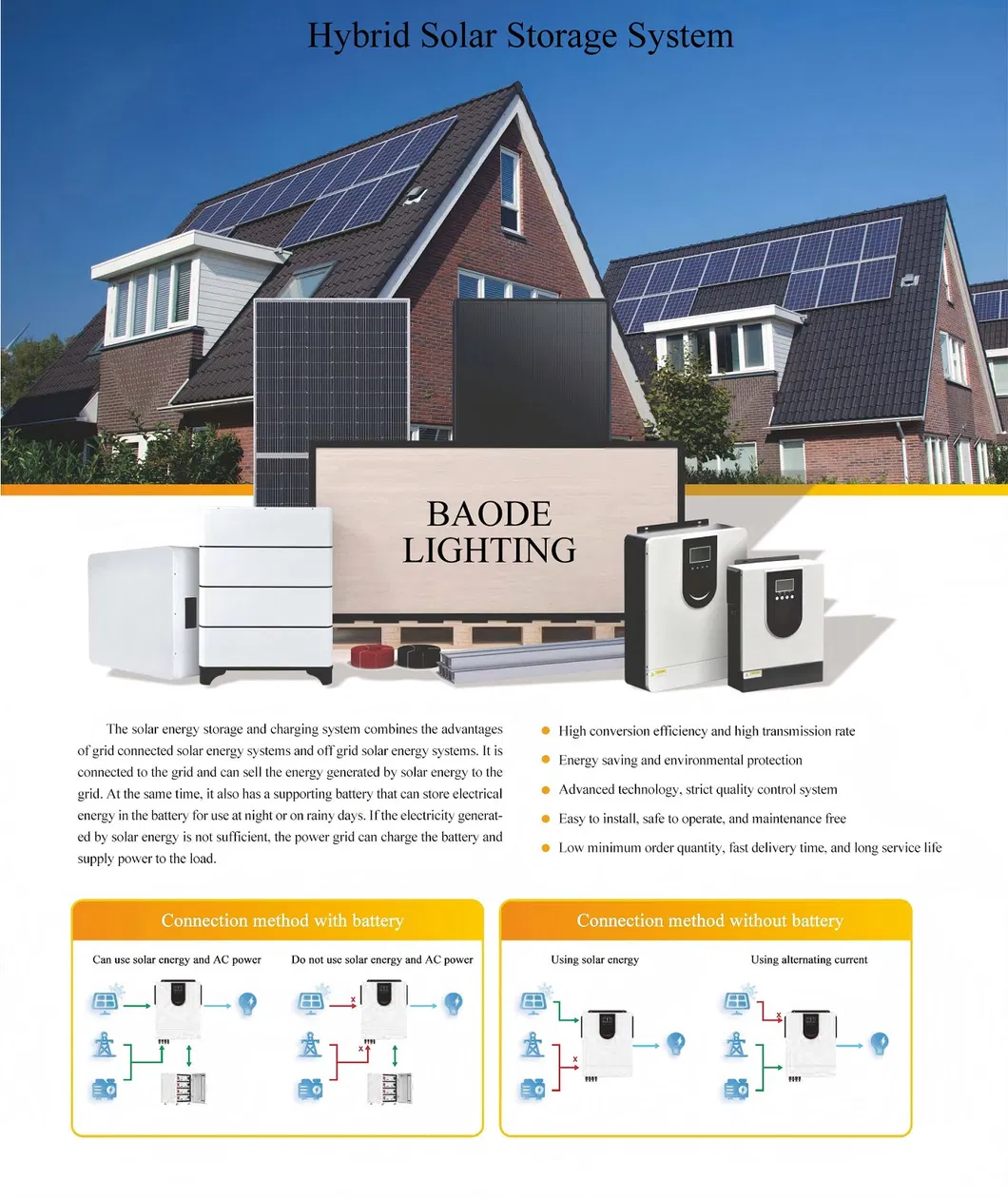

Working Principle of Off-Grid Solar Power Generation System

1. Photoelectric Conversion Solar panels absorb photon energy to generate DC current via the photovoltaic effect.

2. Charging Control A controller monitors voltage and current to adjust the charging process and prevent overcharging.

3. Energy Storage Chemical energy is stored in batteries and converted back to electrical energy when needed.

4. Inversion and Output The inverter transforms DC power into standard AC power, regulating quality for household use.

5. Load Power Supply Standard AC power is supplied to electrical loads, balancing real-time requirements.

Technical Parameters

Item	5KW	10KW	15KW	20KW
Half Cell Solar Panel	8 pieces	16 pieces	24 pieces	32 pieces
PV Combiner Box	DC Breaker/Combiner/Short-Circuit/Lightning Protection
Hybrid Inverter	5kw	10kw	15kw	20kw
WIFI Module	1 set	1 set	1 set	1 set
Solar Battery	Lithium Powerwall with BMS

Core Components

PV Module (Mono N-Type)

Dimensions: 2382*1134*30mm
Weight: 28.2KG | Pmax: 625W
High-efficiency cell technology for maximum energy harvest.

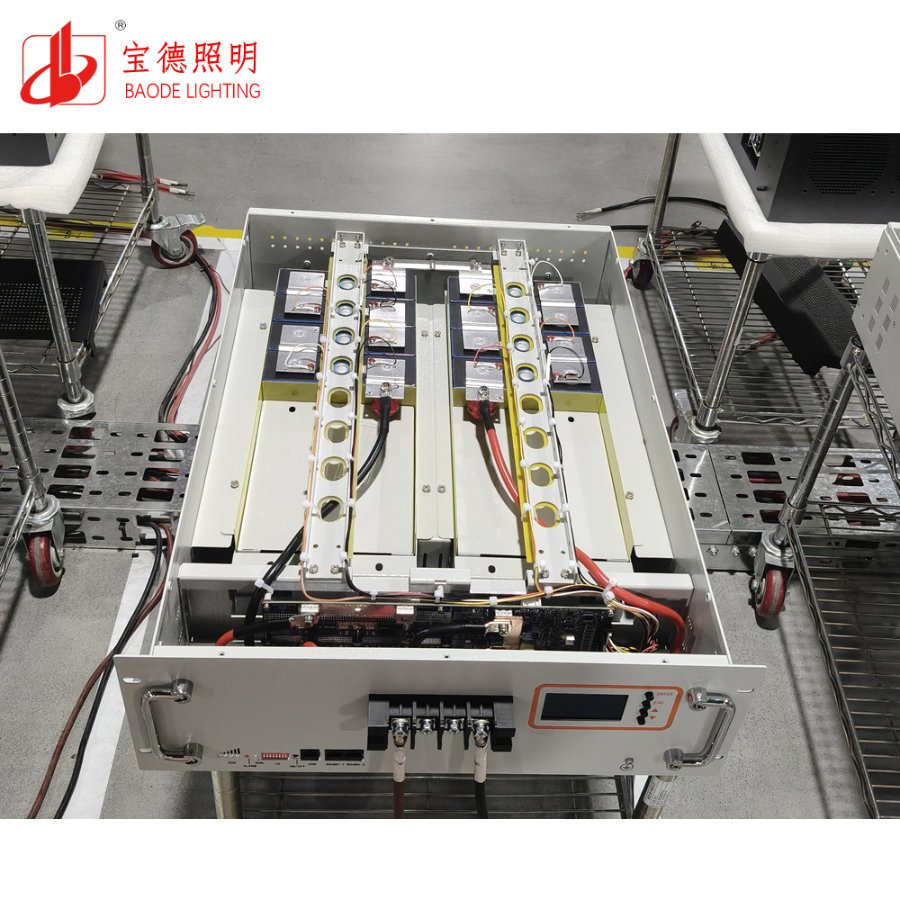

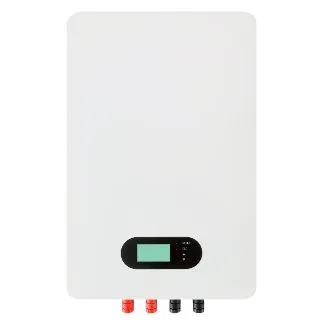

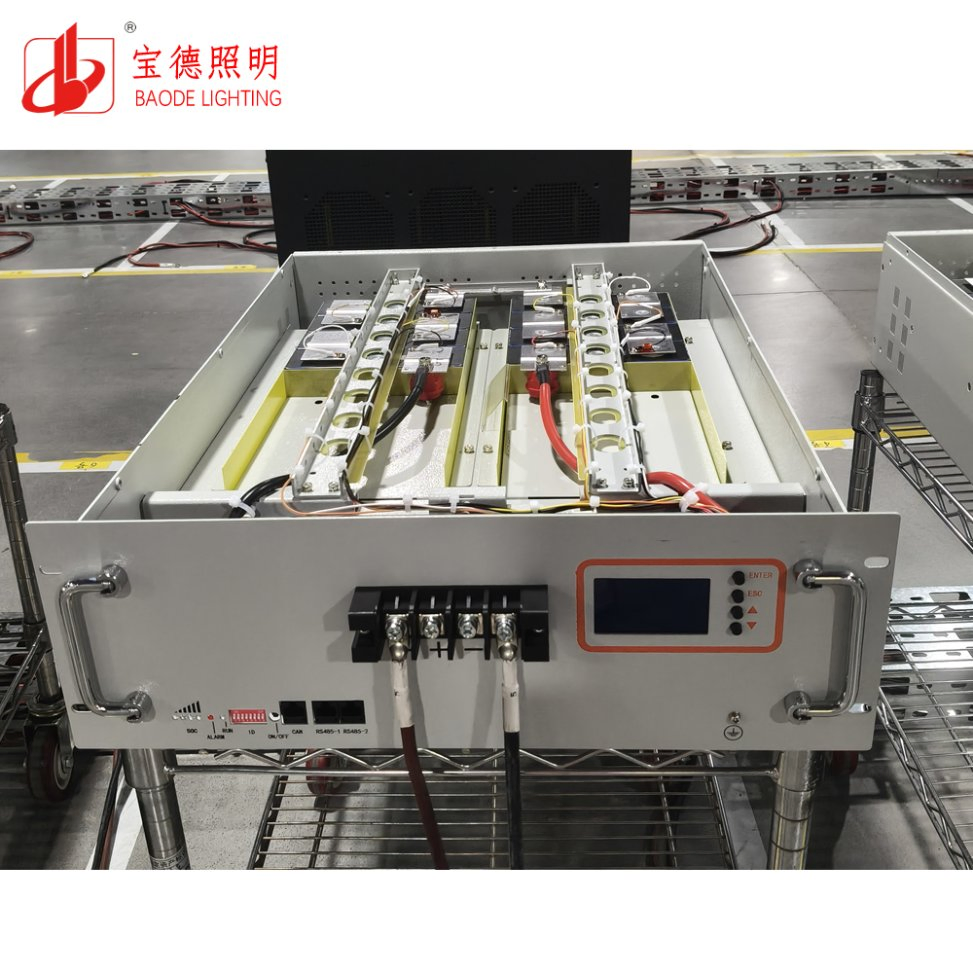

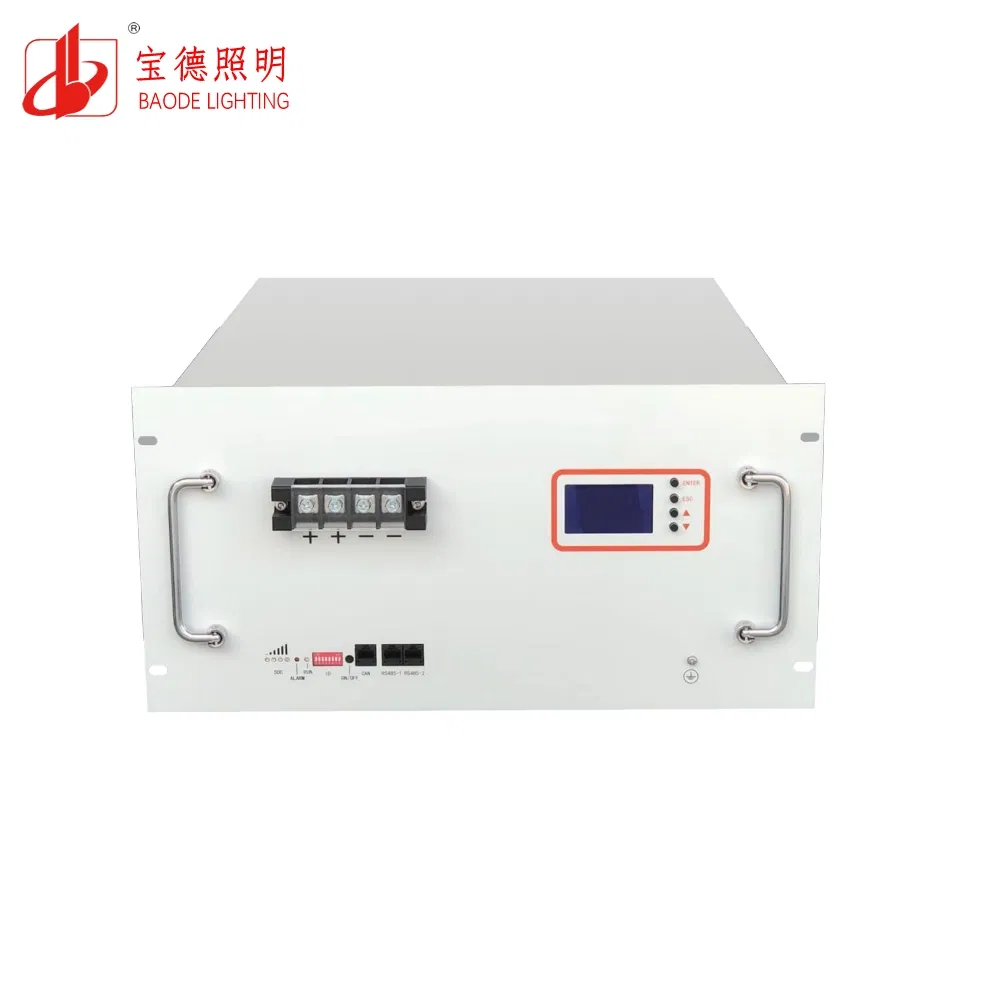

Lithium Battery (LFP)

Model: 48V200AH | 6000 Cycles
DOD: 80% | Design Life: >10 Years
Integrated BMS, RS485/CAN communication, and 19-inch standard design.

Hybrid Storage Inverter

Specification: 5.5KW/48V
Parallel capability: Up to 6 units
Protection: IP20 | Intelligent air cooling.

Our Advantages

●

Superior Performance: High purity and conductivity, low energy consumption, and strong current-carrying capacity.

●

Industrial Quality: Corrosion-resistant thick-plate materials ensure a long service life and durability.

●

Factory Expertise: Over 20 years of experience in R&D and manufacturing with multiple international certifications.

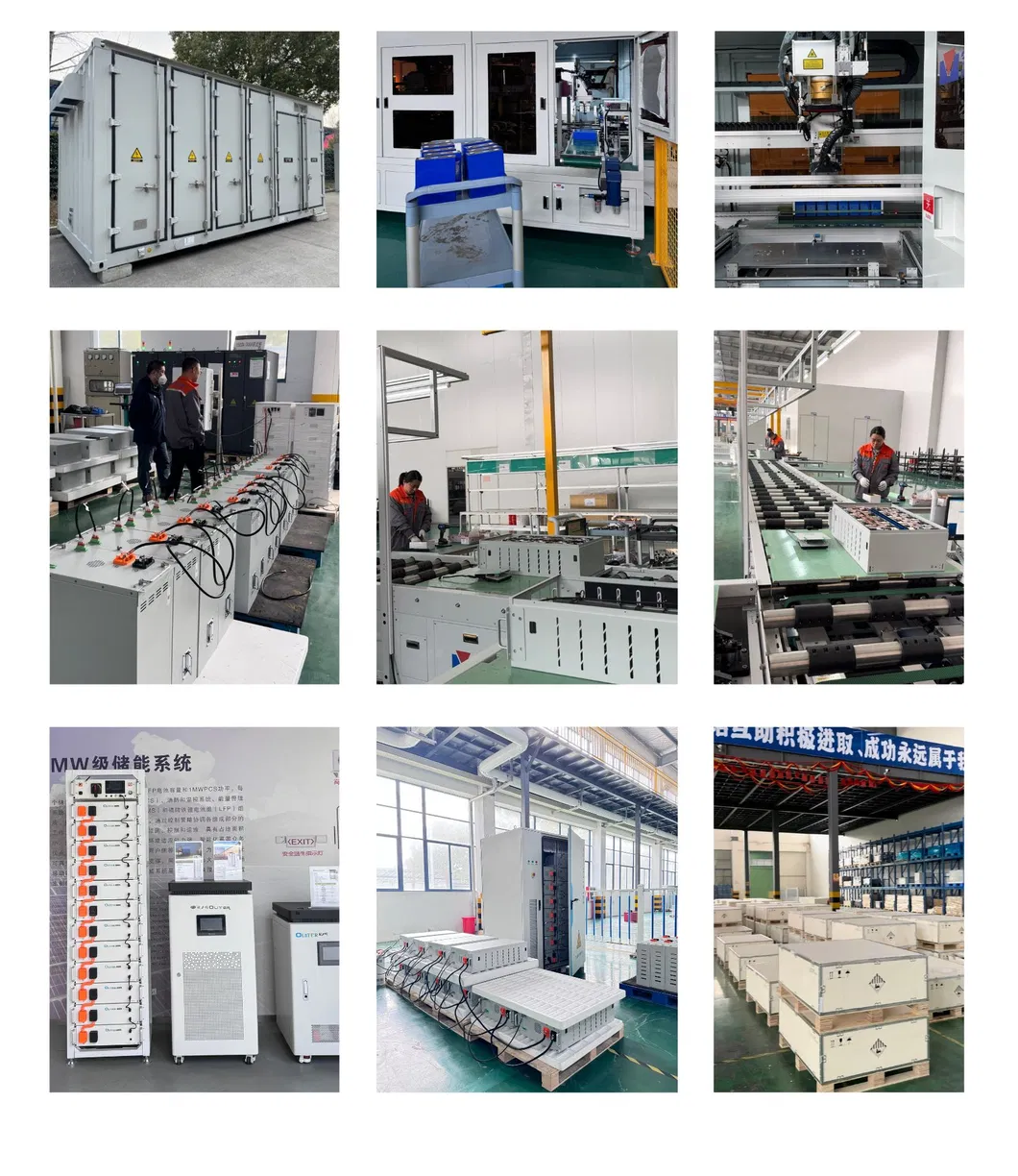

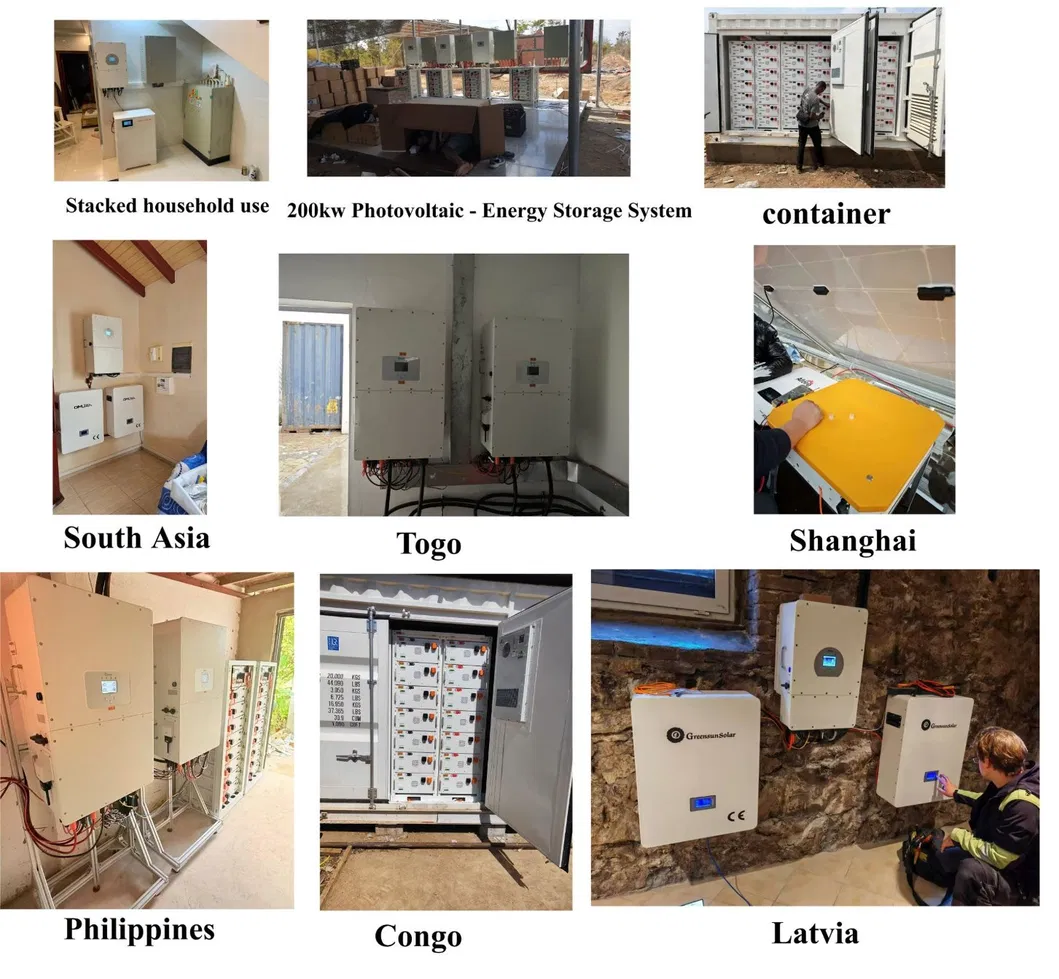

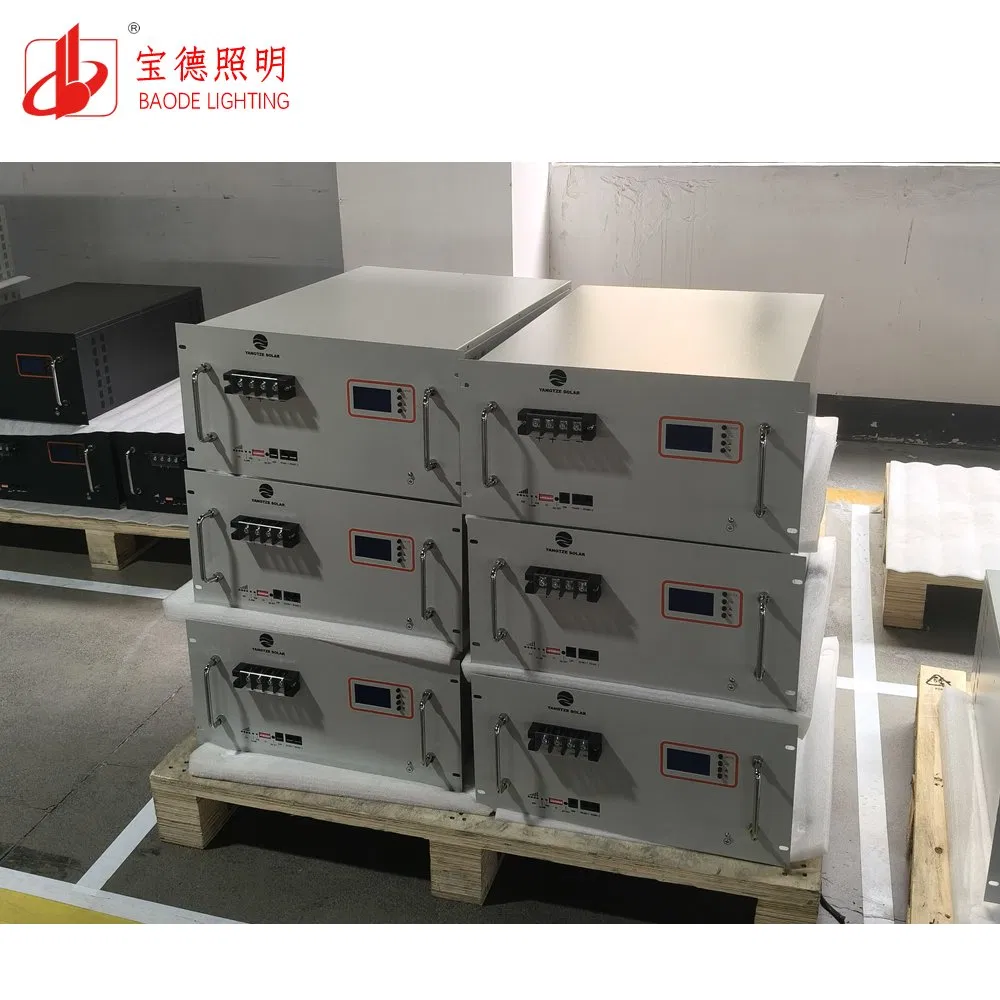

Manufacturing & Project Showcase

Professional Profile

Founded in 2000, we have evolved into a high-tech enterprise specializing in R&D, design, and production of solar energy storage and intelligent applications. With multiple professional qualifications and Grade-I certifications, we have passed ISO 9001/14001/45001 and international product standards like CE, TUV, and CCC.

Our solutions have been implemented in over 100 countries, covering landmark infrastructure projects and residential applications worldwide. We aim to enhance core competitiveness through innovation and excellent service.

Frequently Asked Questions

How many cycles does the lithium battery support?

The system uses high-quality LFP batteries that support approximately 6000 cycles with an 80% depth of discharge (DOD).

Is the solar system customizable?

Yes, we offer various configurations from 5KW to 20KW and beyond to meet different residential and industrial power requirements.

Can I monitor the system remotely?

Yes, each system includes a WIFI module that allows you to monitor energy production and consumption through a dedicated app.

What protection features are included in the inverter?

The hybrid inverter includes short-circuit protection, lightning protection, and DC breakers for comprehensive system safety.

What is the warranty period for the core components?

We provide a 5-year warranty period for the hybrid inverters and a design life of over 10 years for the lithium batteries.

Can multiple inverters be used in parallel?

Yes, our hybrid storage inverters allow for 1 to 6 units to be connected in parallel for increased power capacity.
