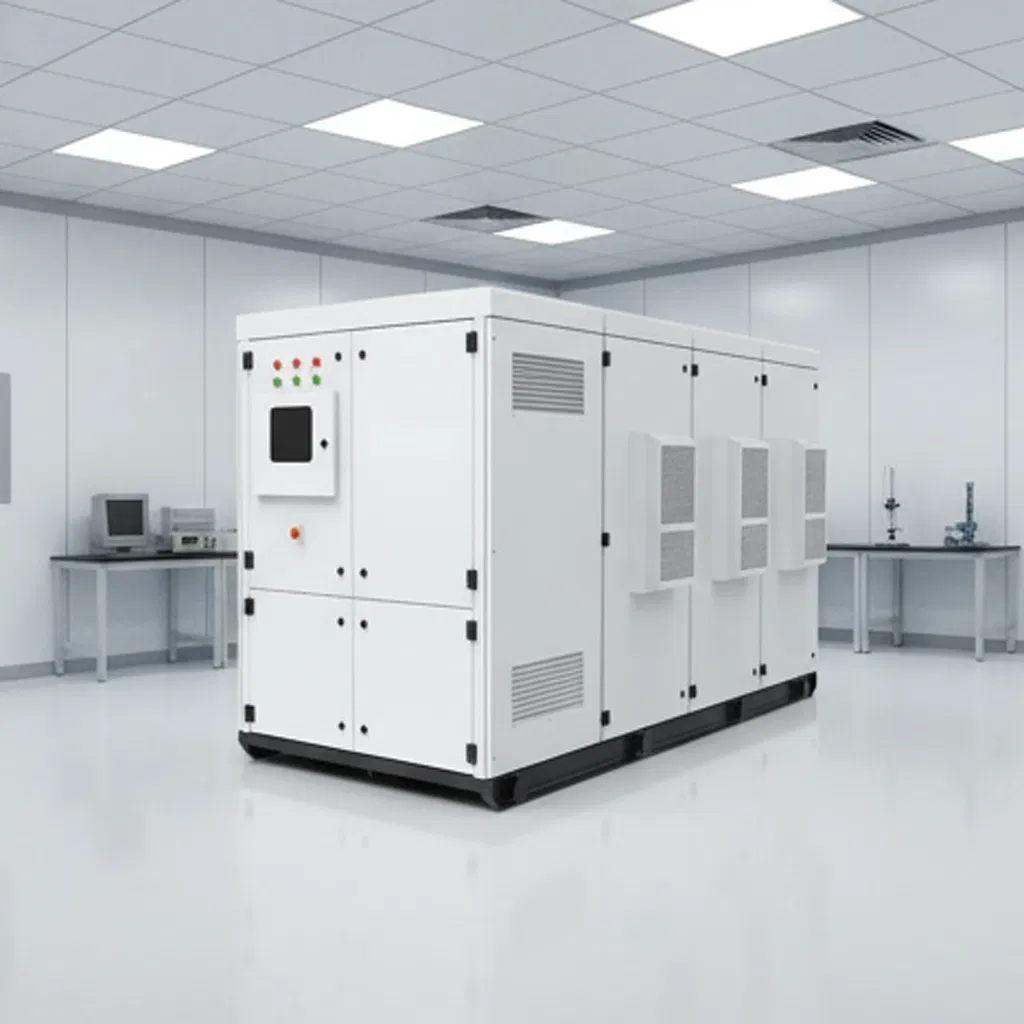

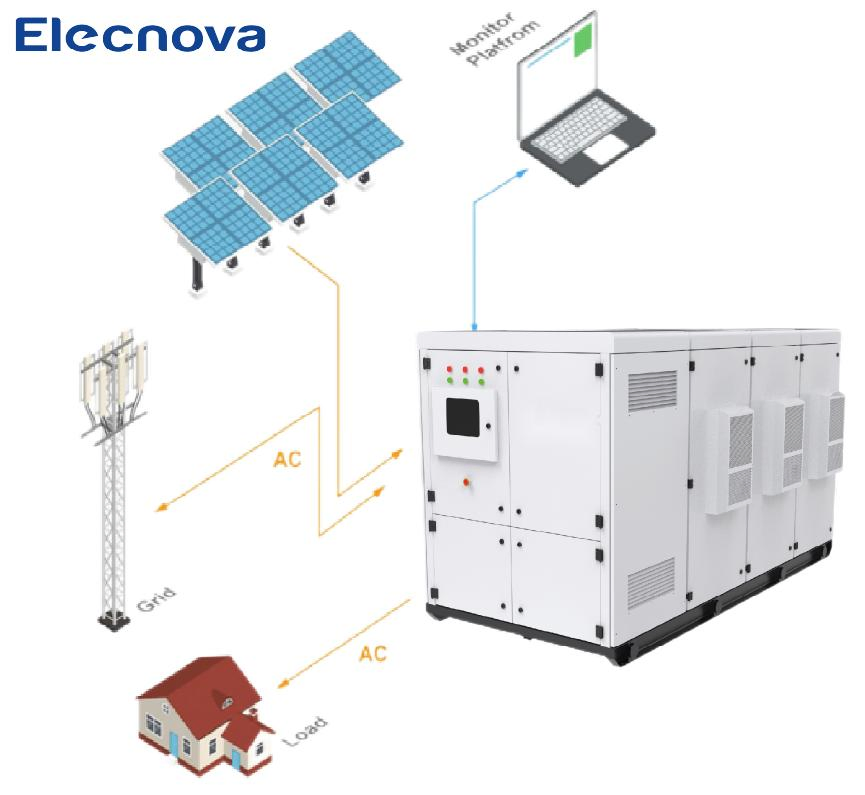

Elecnova Solar+Grid+Diesel Gensets+Battery Integrated Microgrid Solar Power Battery Energy Storage Systems 150 Kwh

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information
Model NO. SFR-ES-225-150 Output Frequency 50/60Hz
Controller Type MPPT Battery Type Lithium Ion / LiFePO4
Charging Ratio 2c Cycle Life 4000 Cycles
Components PCS, Lithium Battery System Work Time (H) 24/7
Power Grid 3W+N+PE Rated Grid Voltage AC 380/400V
Rated Output Power 150kw Max Output Power 165kw
Dimension 1680*3050*1700mm Relative Humidity 0~95%(No Condensing)

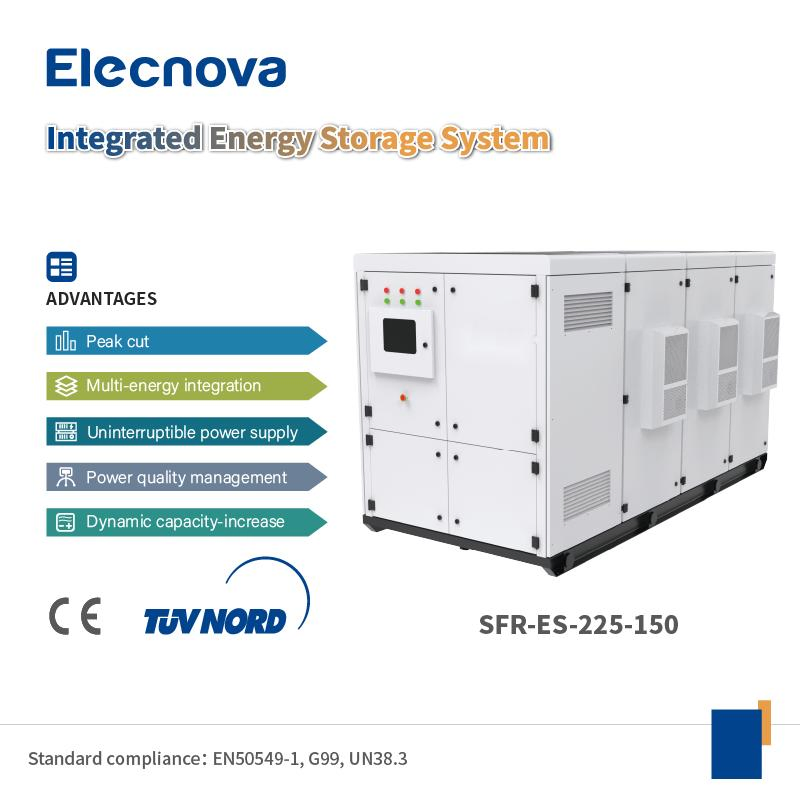

Integrated Microgrid Battery Storage System
Technical Parameters

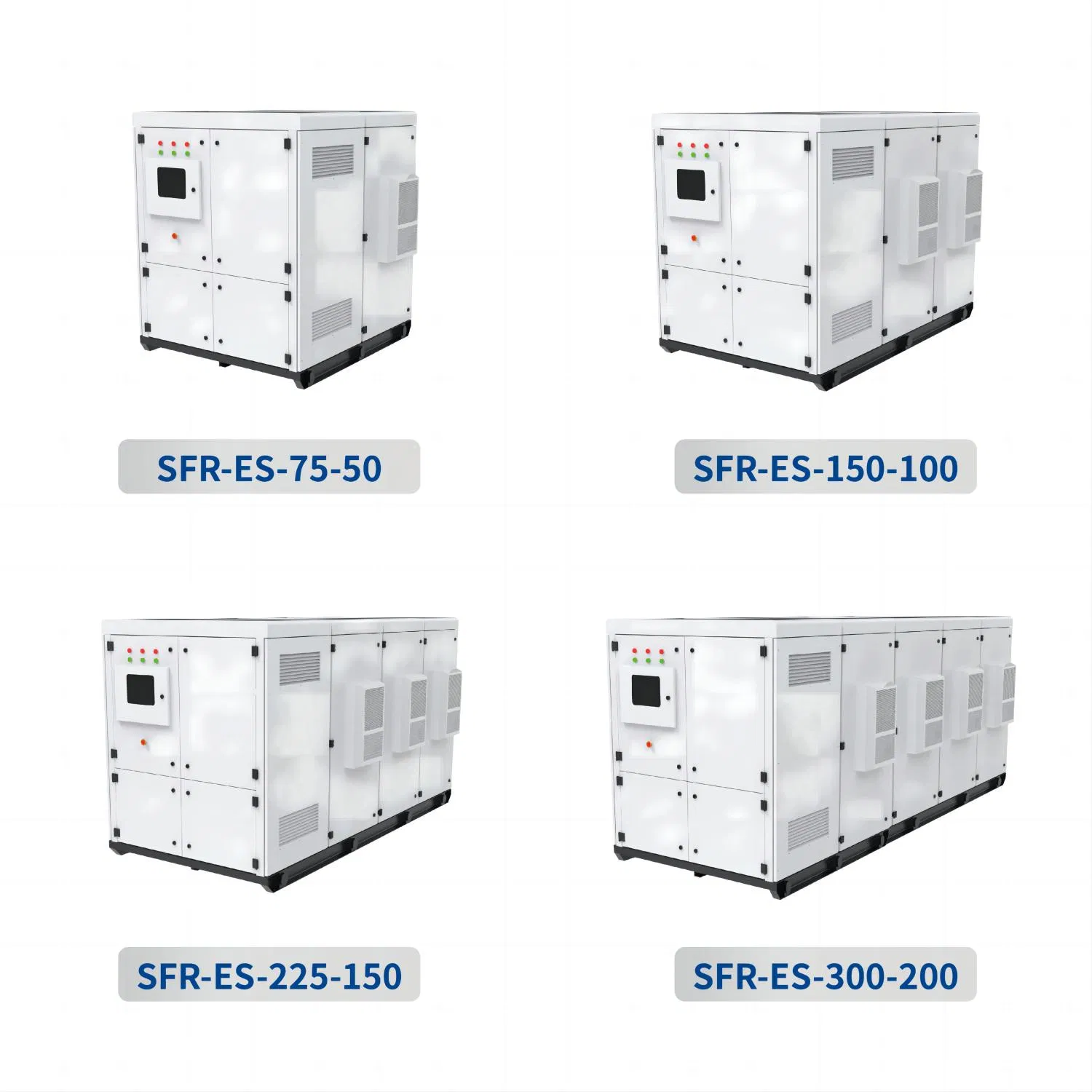

Model SFR-ES-75-50 SFR-ES-150-100 SFR-ES-225-150 SFR-ES-300-200
AC Parameters (Grid Connected)
Rated Output Power (kW)50100150200
Max Output Power (kW)55110165220
Rated Grid Voltage (V)3W+N+PE, 380
Battery System
Battery TypeLithium iron phosphate
Total Energy (kWh)76.8153.6230.4307.2
Cycle Life25°C 0.5C/0.5C 100%DOD EOL80% >4000 times
Basic Parameters
Max Efficiency95%
Protection RatingOutdoor IP54
CommunicationRS485, CAN, LAN (Modbus-RTU, Modbus-TCP)
Detailed Product Gallery

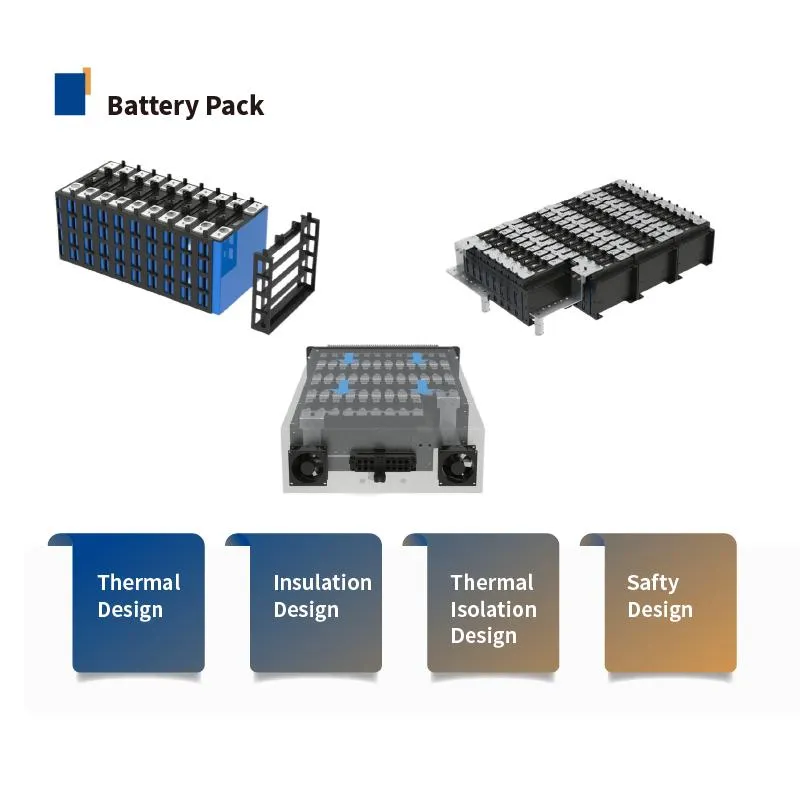

Detail View 1

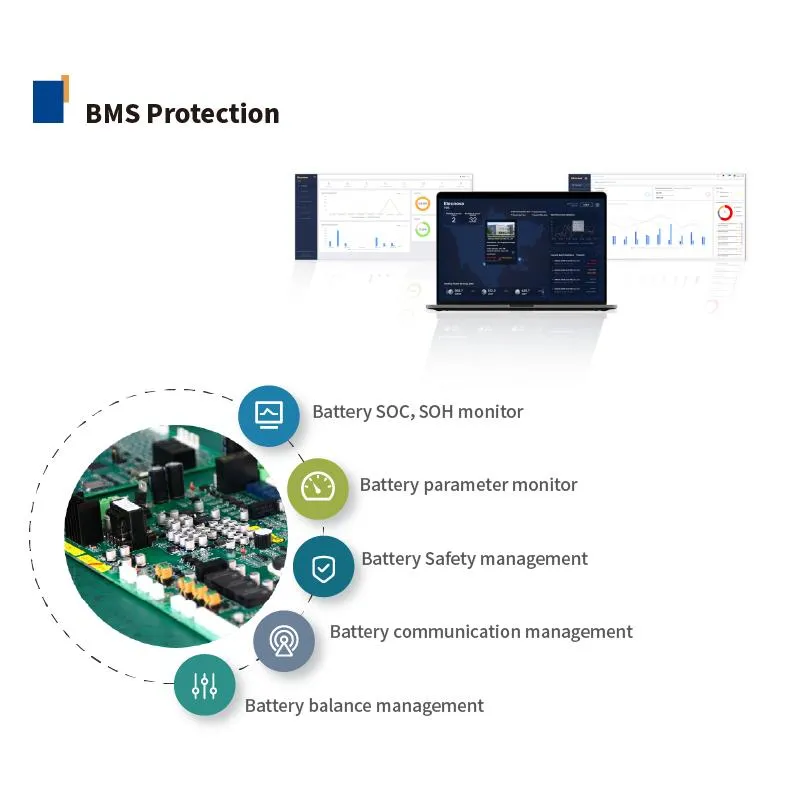

Detail View 2

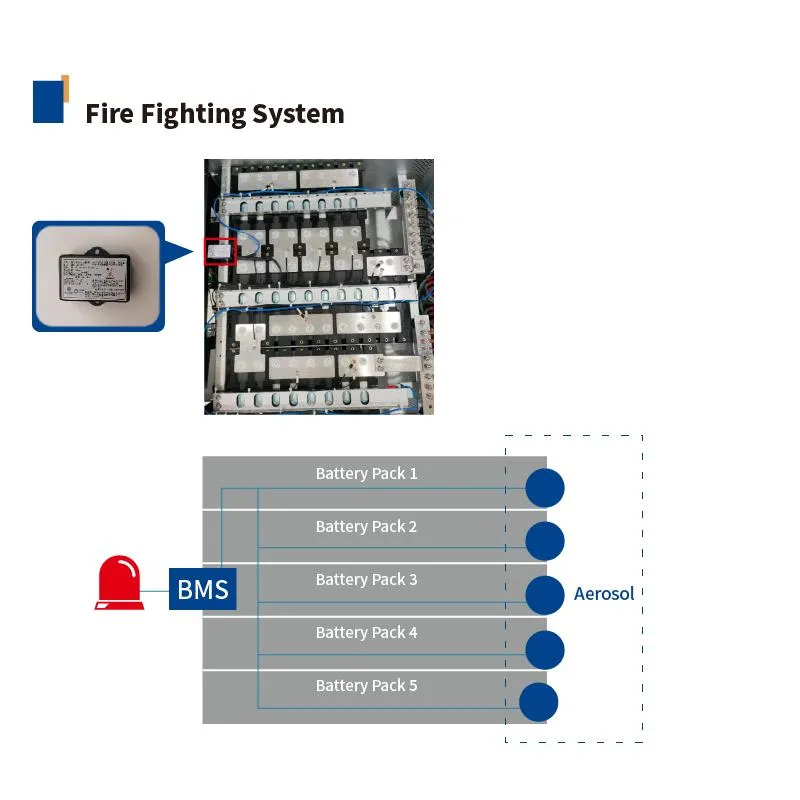

Detail View 3

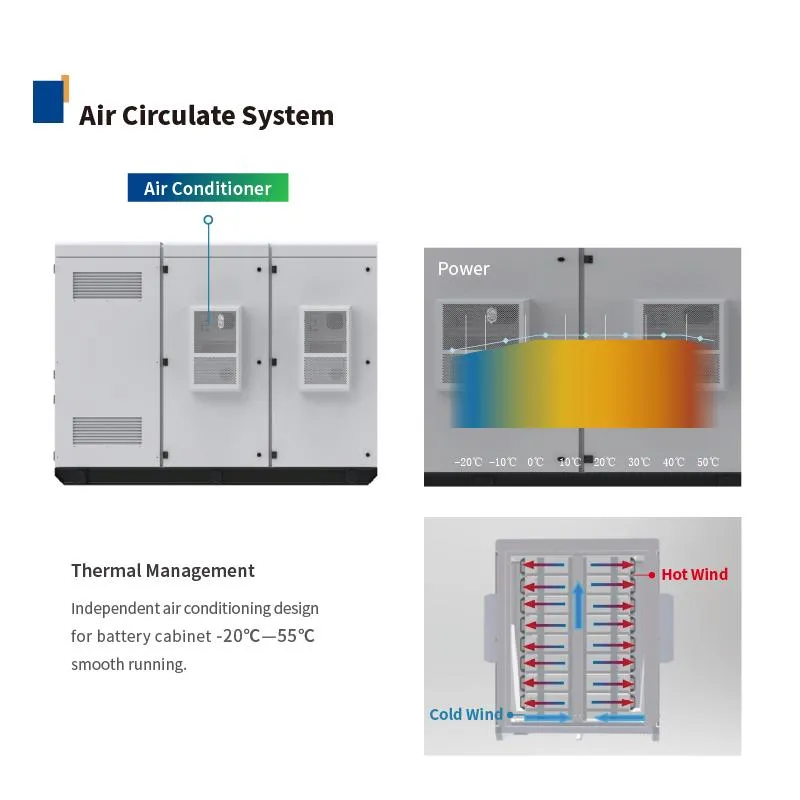

Detail View 4
Reference Design

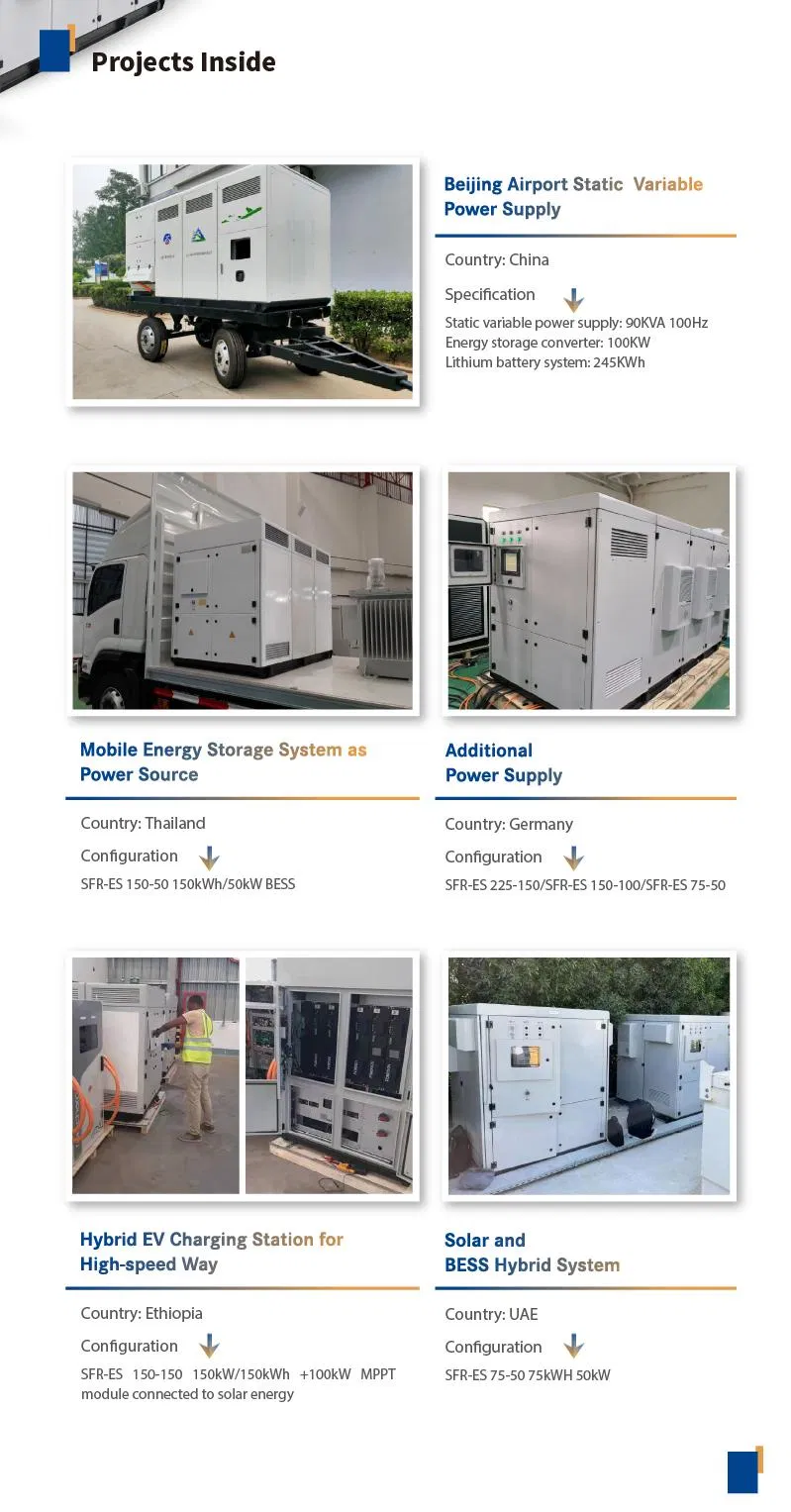

Technical Reference Diagram
Facility & Capability

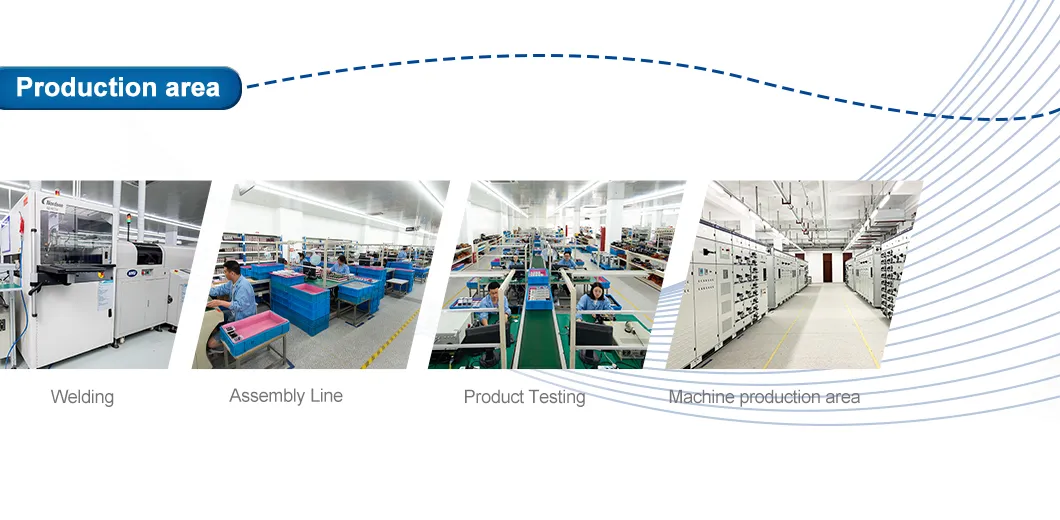

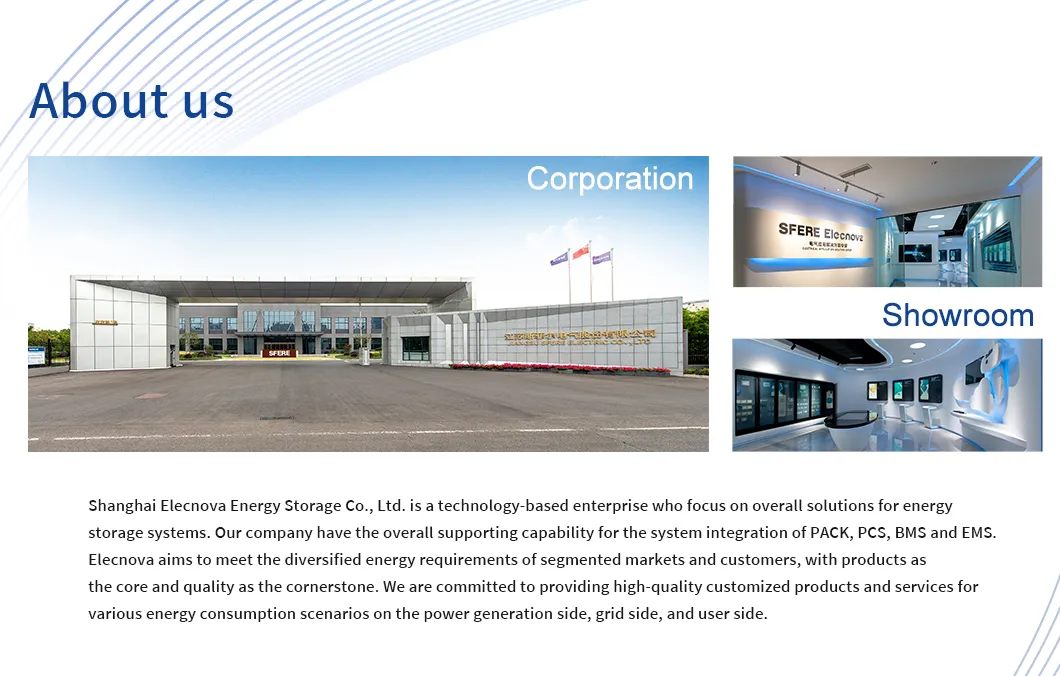

Factory Overview Manufacturing Line Quality Control Production Process
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a professional manufacturer factory.
Do you provide customized manufacturing?
Yes, we provide OEM/ODM services. Our experienced R&D team offers high-efficiency solutions tailored to customer requirements.
What is the typical delivery time?
For items in stock, the delivery time is approximately 1 month.
Do you provide samples for testing?
Yes, samples can be provided; however, customers are required to pay for the sample cost and freight charges.
What is the cycle life of the battery energy storage system?
The system features high-quality LiFePO4 cells with a cycle life of over 4000 cycles at 25°C (0.5C/0.5C 100%DOD EOL80%).
What are your standard terms of payment?
For orders under $3000, 100% payment is required before shipment. For orders over $3000, a 30% deposit is required, with the remaining 70% due before shipment.
