Product Description

Basic Specifications

Model NO.MS08A-10A

LocationPublic Use

Charging InterfacesMultiple Charges

Start ModeRFID, Credit Card, Mobile Operation

Dimensions900mm X 700mm X 1900mm

Weight440kg

Cable Length5m-7m

ConnectorsGBT, CCS2, CCS1, CHAdeMO, NACS

Input Voltage400VAC / 480VAC

Rated Power240-480kW

Output Voltage200 - 1000VDC

ProtectionIP54 IK10

Product Overview

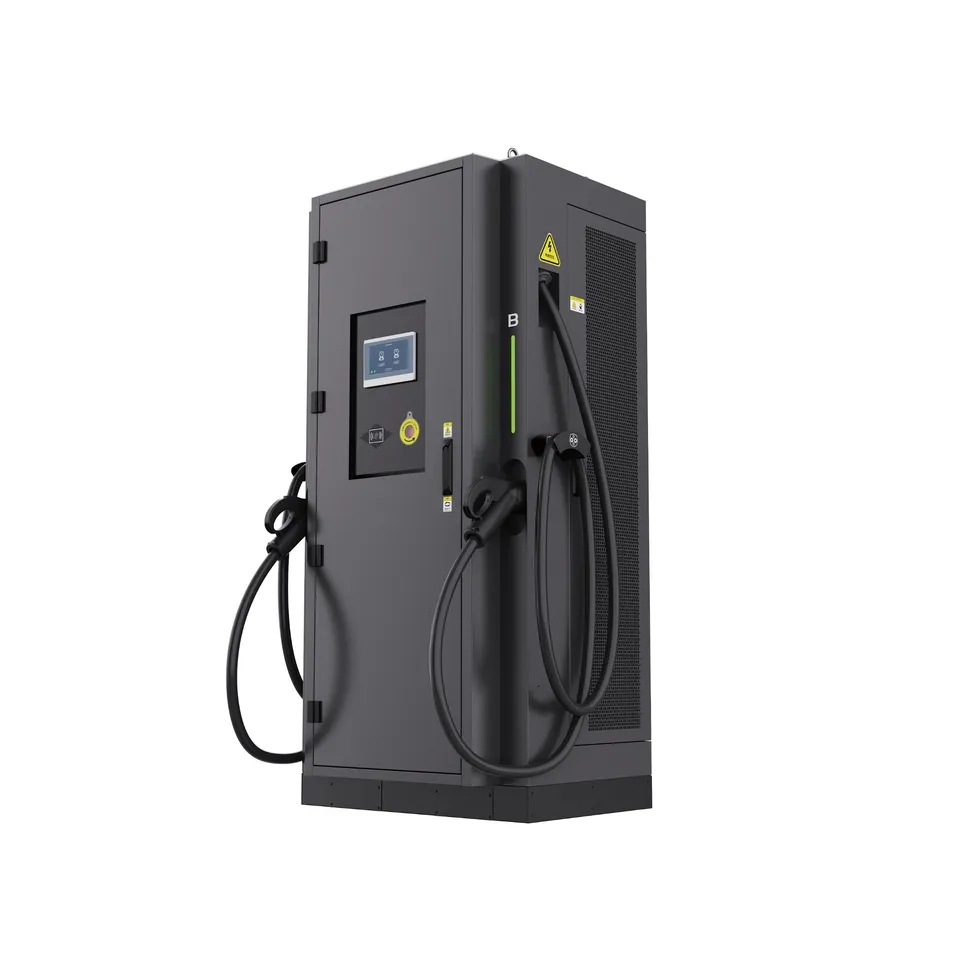

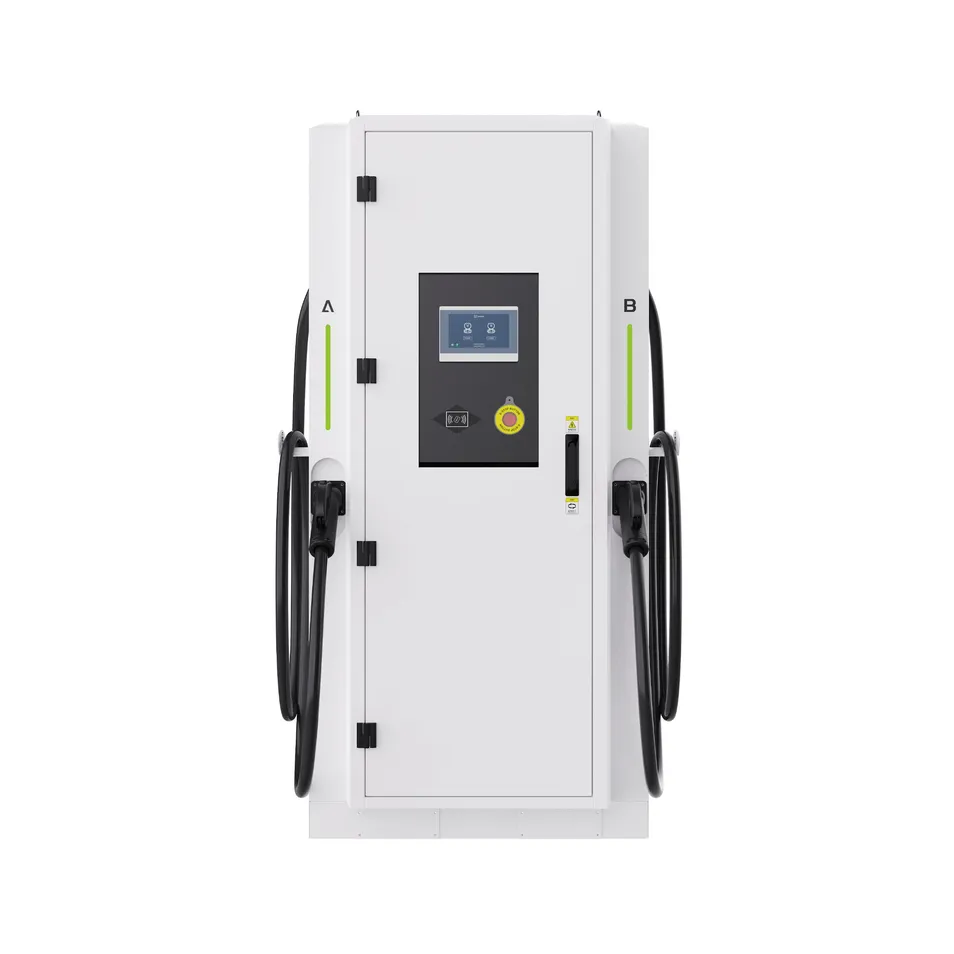

240kW-480kW High-Power Commercial/Heavy-Duty Truck Charging Station

This next-generation ultra-high-performance DC charging station is designed to empower the future of heavy-duty electrification. As the commercial vehicle sector accelerates toward green energy, the demand for reliable and high-power infrastructure is more urgent than ever. This station serves as a core power engine for logistics, engineering, and specialized port operations.

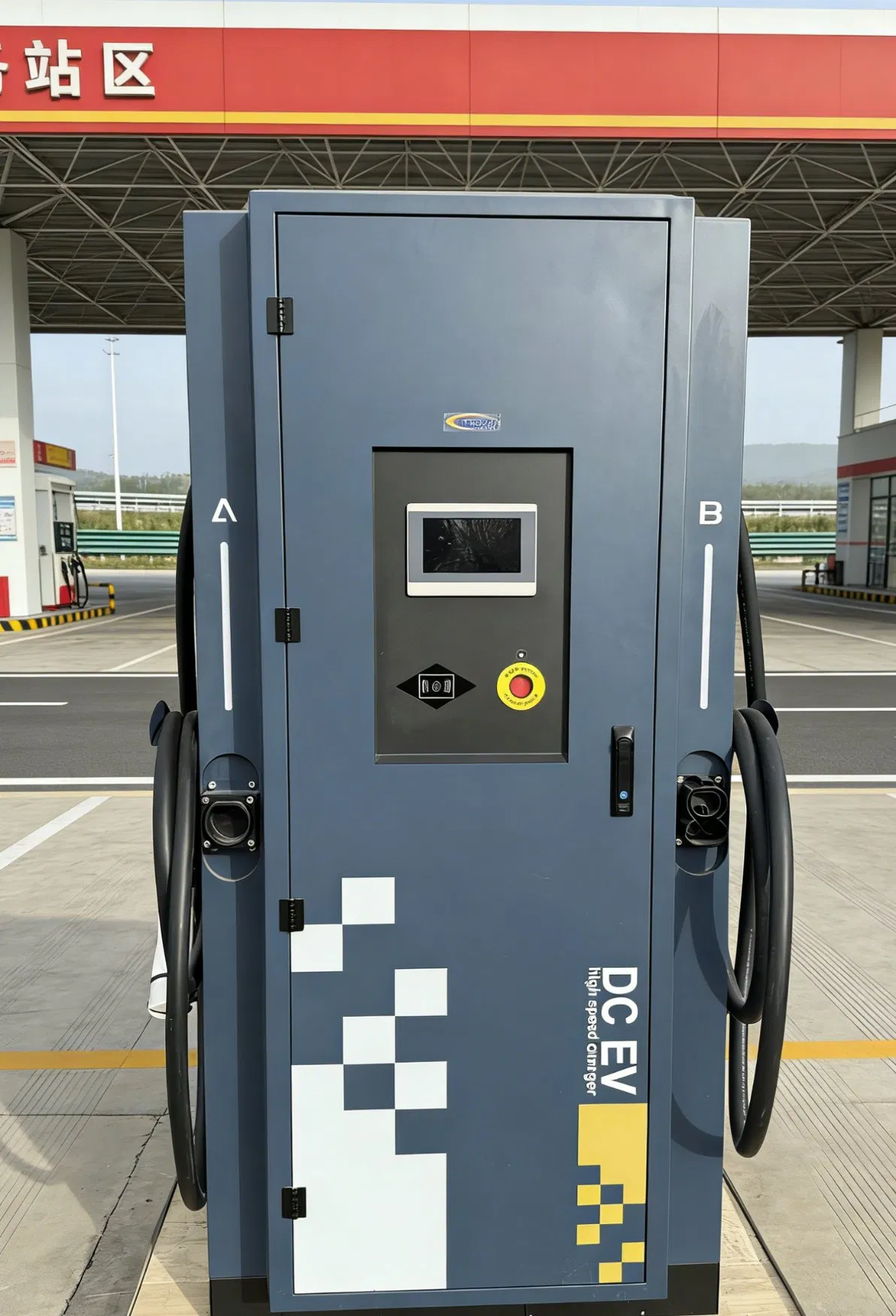

Featuring "functional aesthetics," the station exude industrial strength with clean, sharp lines and rugged contours. It is built for complex environments like mines and busy highway supply stations, offering outstanding physical protection and professional reliability.

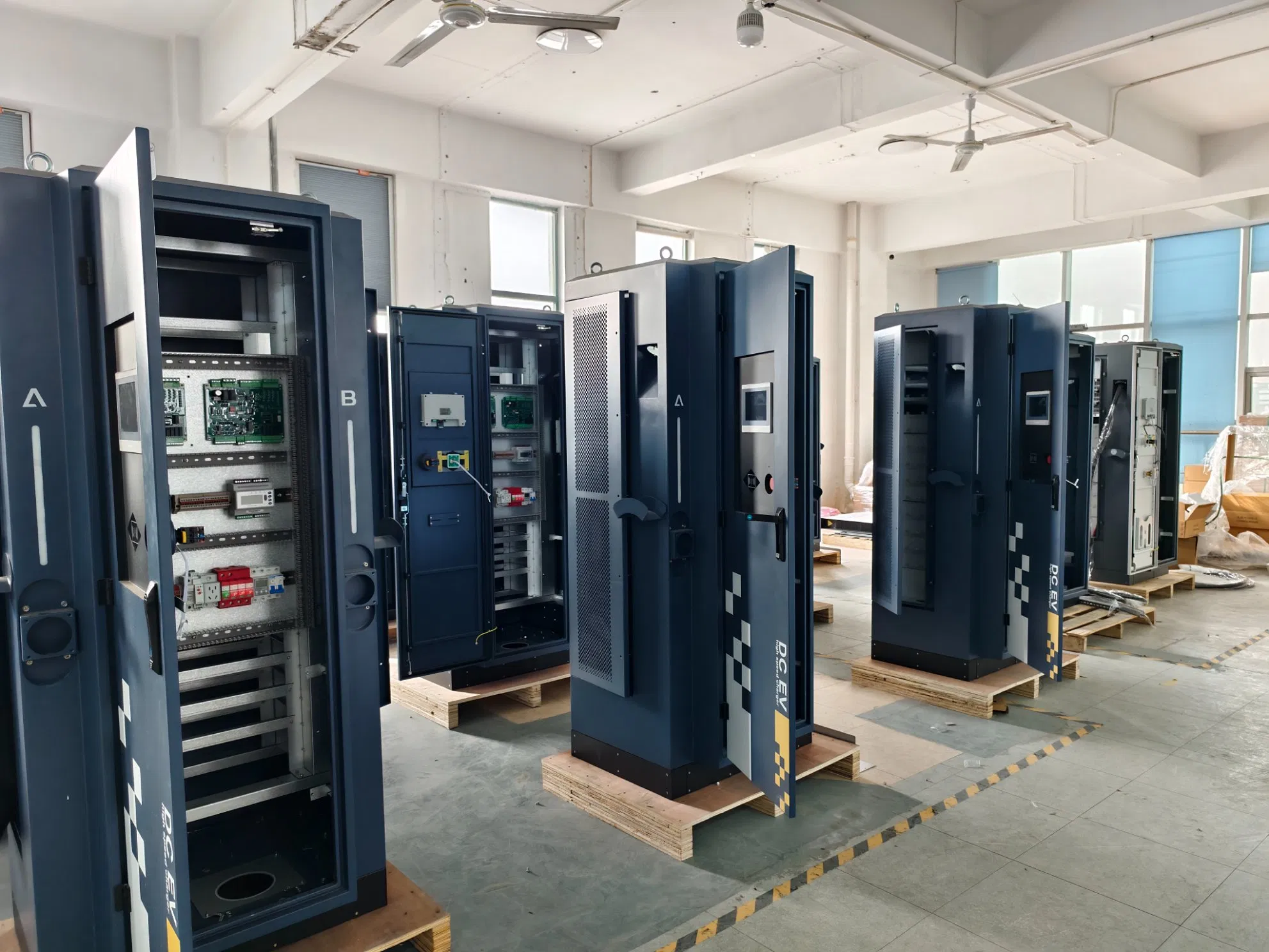

The core architecture adopts a modular design with 12 high-efficiency power module slots, allowing power expansion up to 480kW. This scalable model protects long-term investment and ensures adaptability to evolving vehicle requirements.

Technical Specification

Category	Parameter	Details
Appearance	Dimensions	900mm x 700mm x 1900mm
	Weight	440kg
	Cable Length	5m - 7m
	Connectors	GBT, CCS2, CCS1, CHAdeMO, NACS
Electrical	Input Voltage	400VAC / 480VAC (3P+N+PE)
	Output Voltage	200 - 1000VDC
	Rated Power	240kW - 480kW
	Peak Efficiency	≥ 96%
	Power Factor	> 0.99
Environment	Operating Temp	-30°C to 75°C
	Protection	IP54 / IK10
	Cooling	Air Cooled

Packaging & Delivery

Package Size100cm * 80cm * 200cm

Gross Weight600kg

Packaging TypeWooden Case

Product FAQ

Q1: What is the maximum output power of this charging station?

The station is highly scalable, featuring a modular design that supports power outputs from 240kW up to a maximum of 480kW.

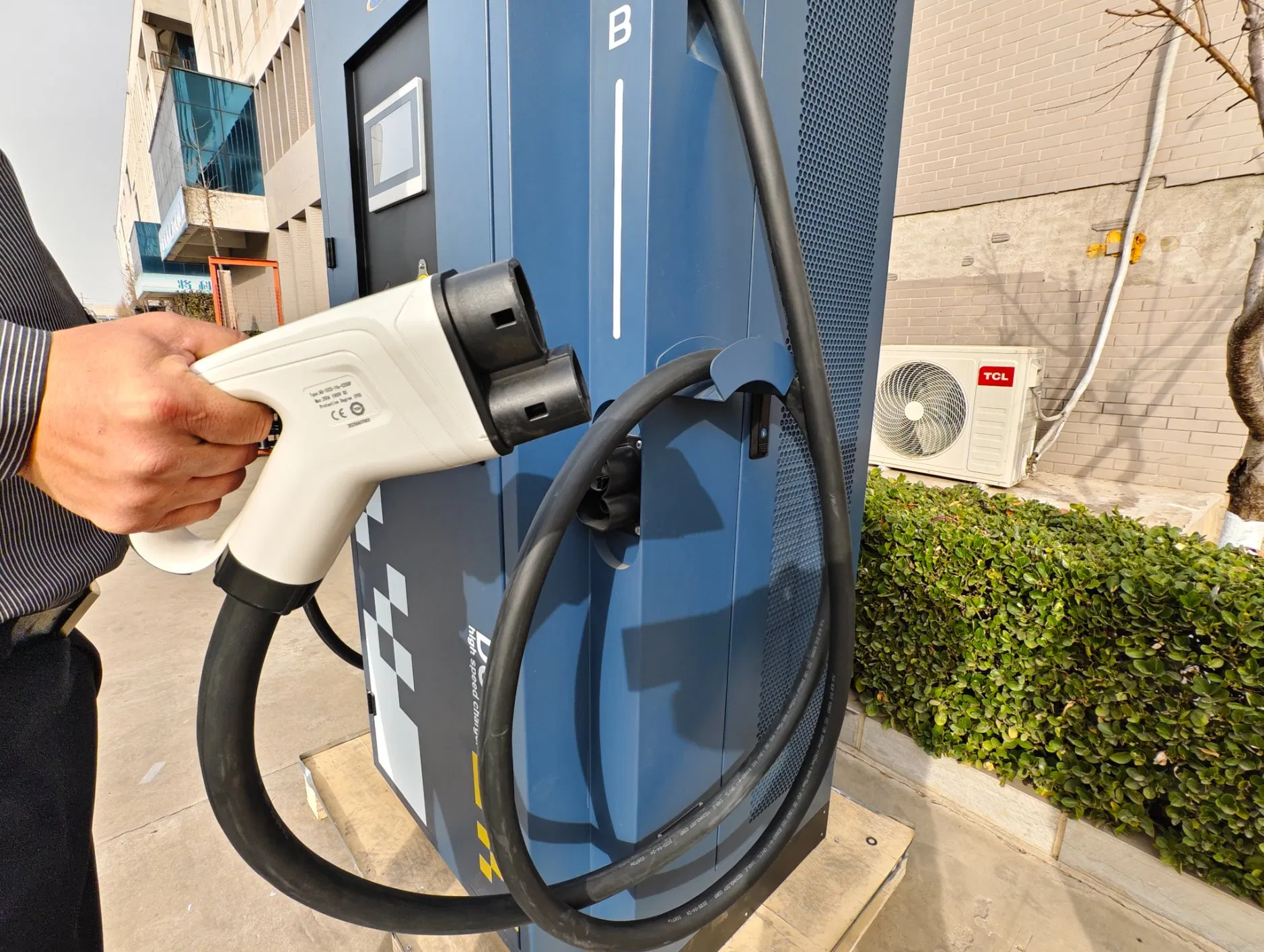

Q2: Which charging connector standards are supported?

It is compatible with all major global standards, including GBT, CCS2, CCS1, CHAdeMO, and NACS.

Q3: Is the station suitable for extreme weather conditions?

Yes, it is designed with an IP54 and IK10 rating, operating efficiently in temperatures ranging from -30°C to 75°C.

Q4: How can users initiate a charging session?

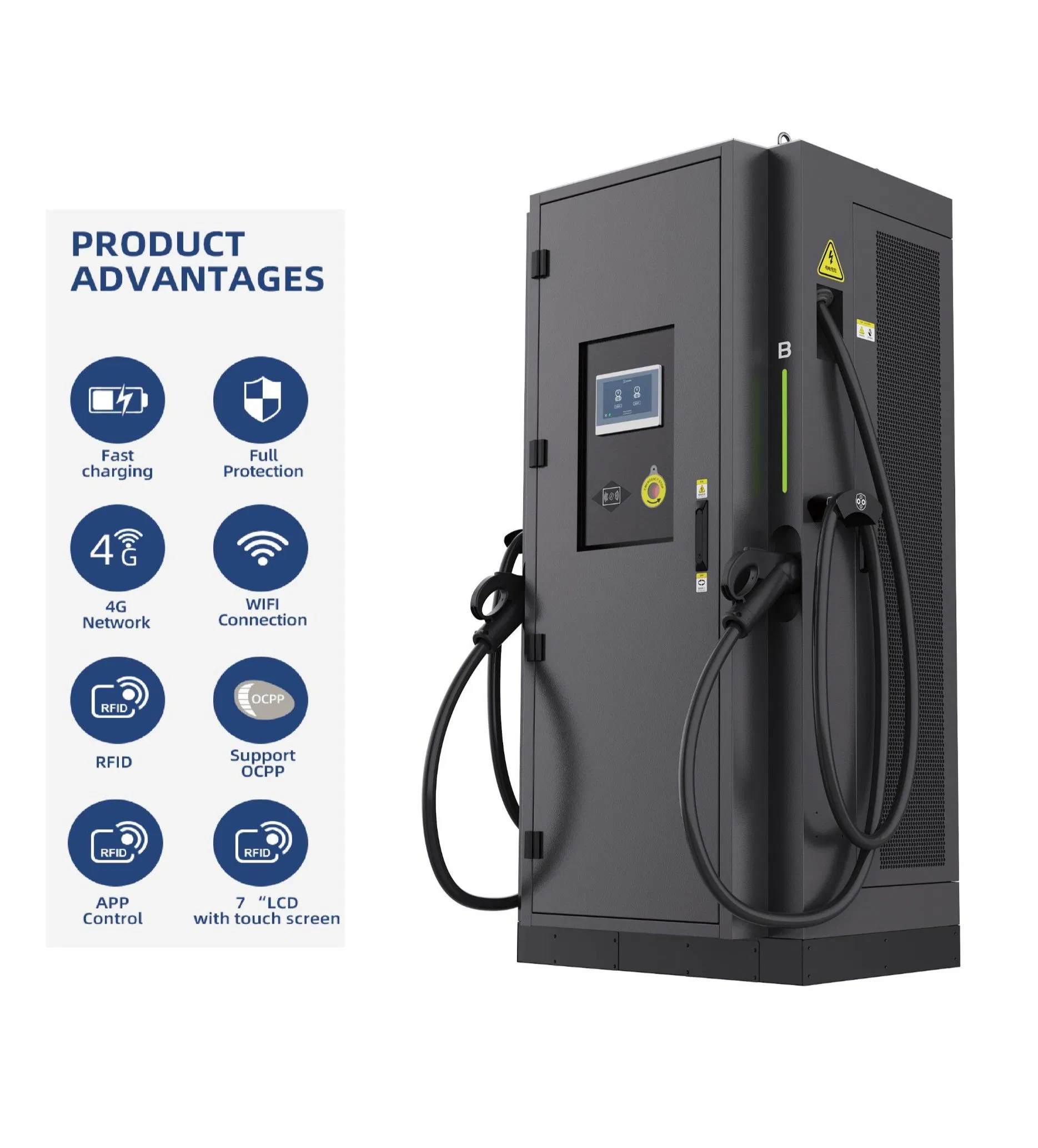

The station supports multiple start modes, including RFID card authentication, mobile app remote operation, and credit card payments.

Q5: Does it support remote monitoring and management?

Yes, it utilizes the OCPP protocol, allowing it to connect with various operating platforms via Ethernet, Wi-Fi, or optional 4G modems.

Q6: What safety protections are built into the hardware?

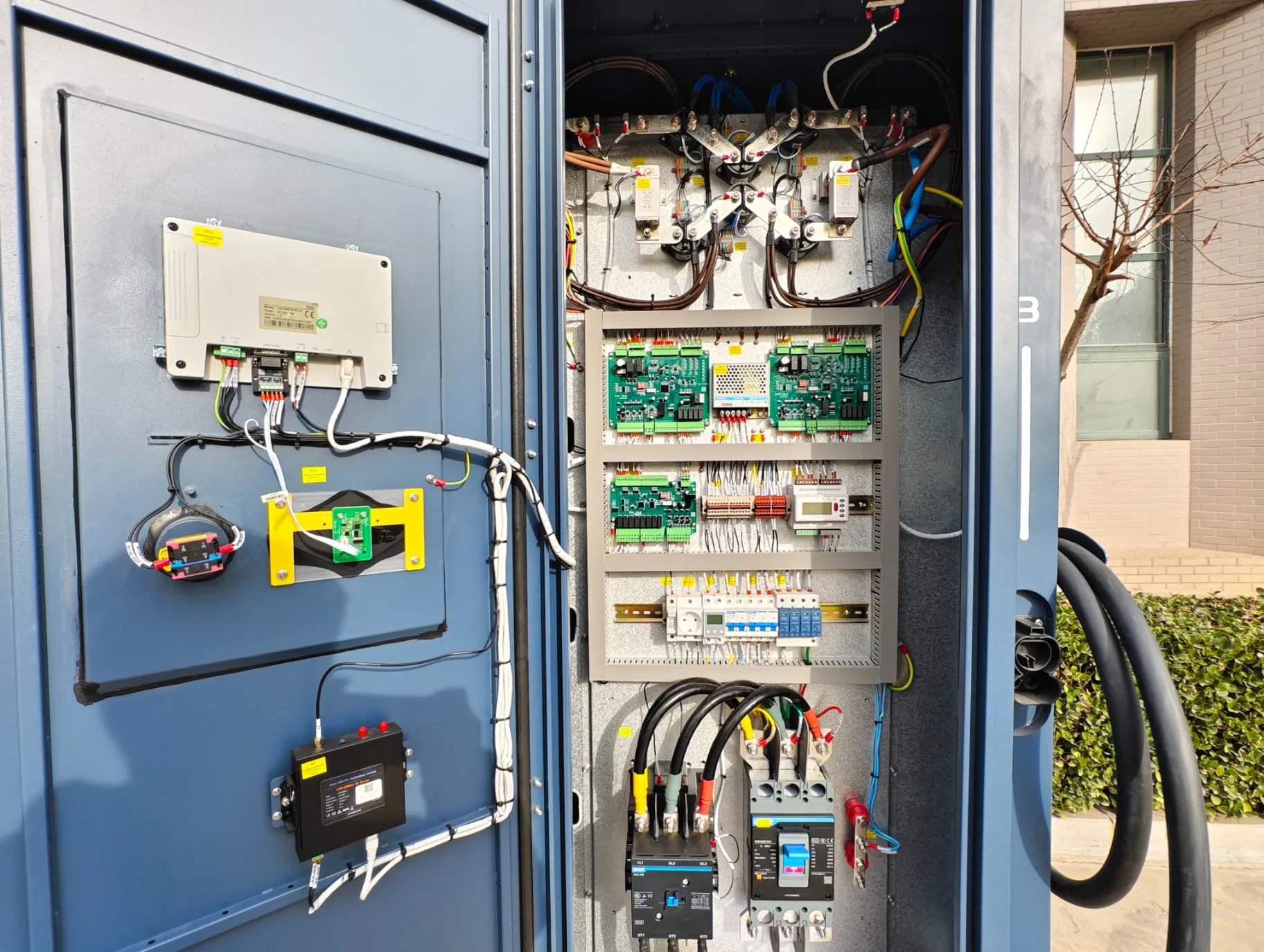

The station includes comprehensive safety features such as overvoltage, lightning, overcurrent, and leakage protection, along with a dedicated emergency stop button.
