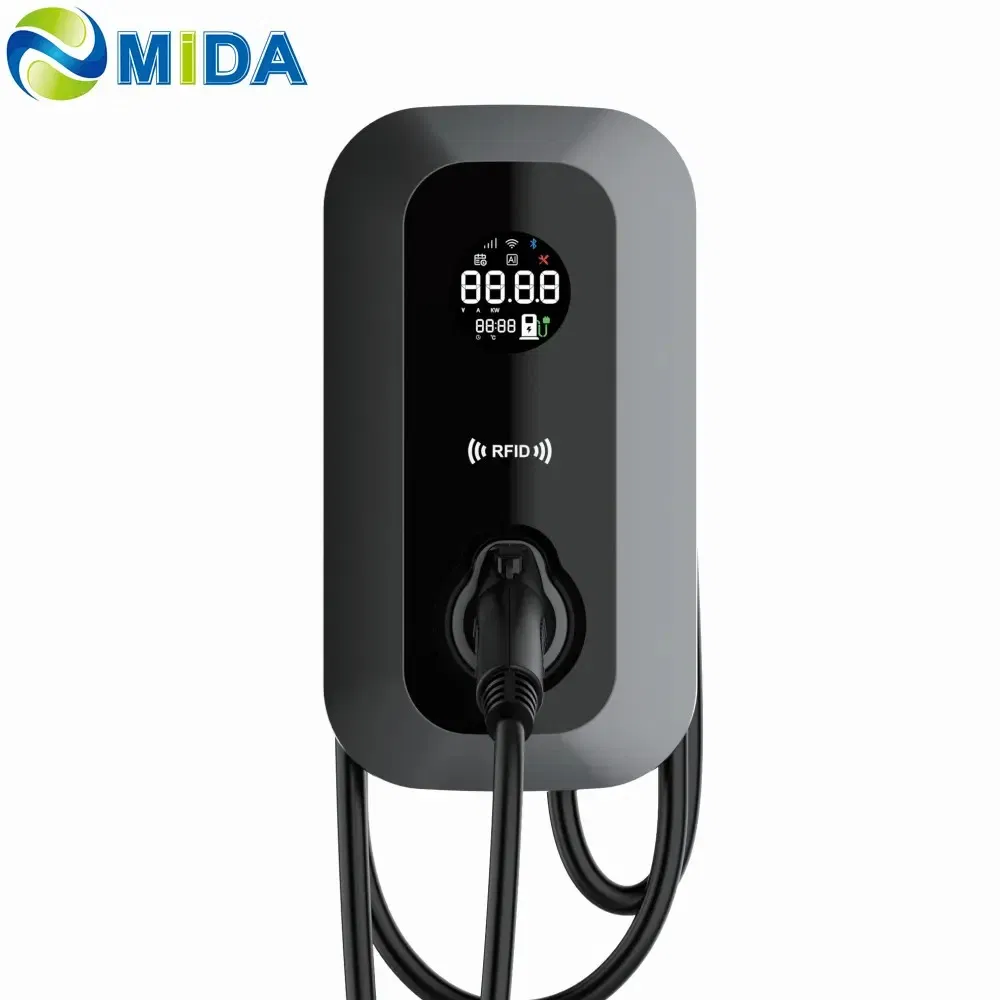

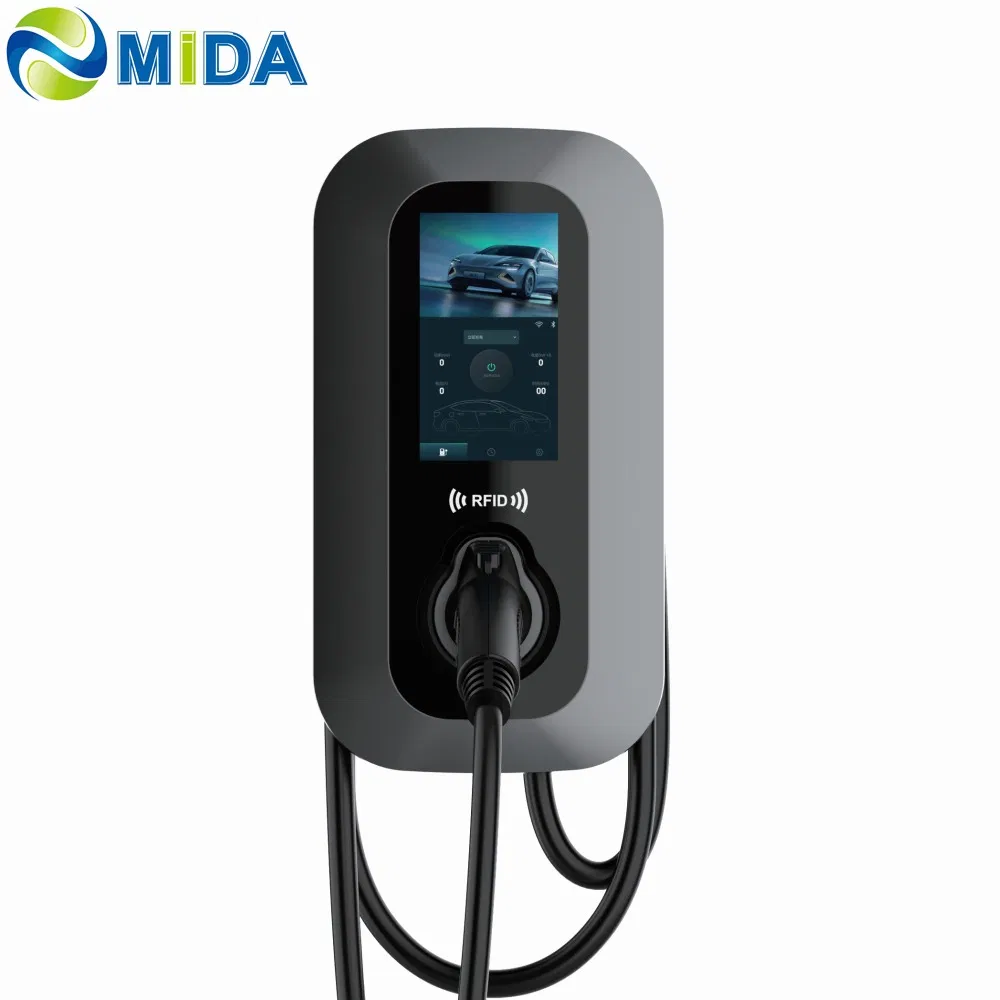

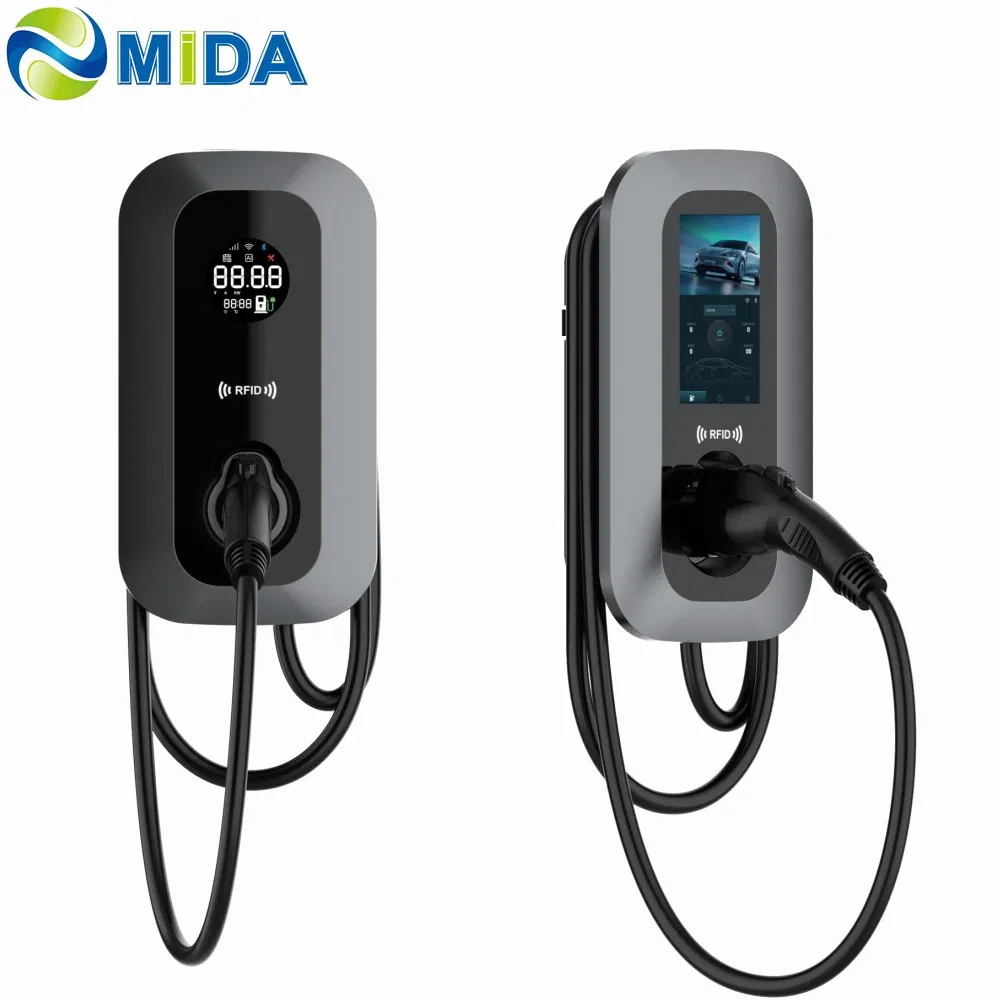

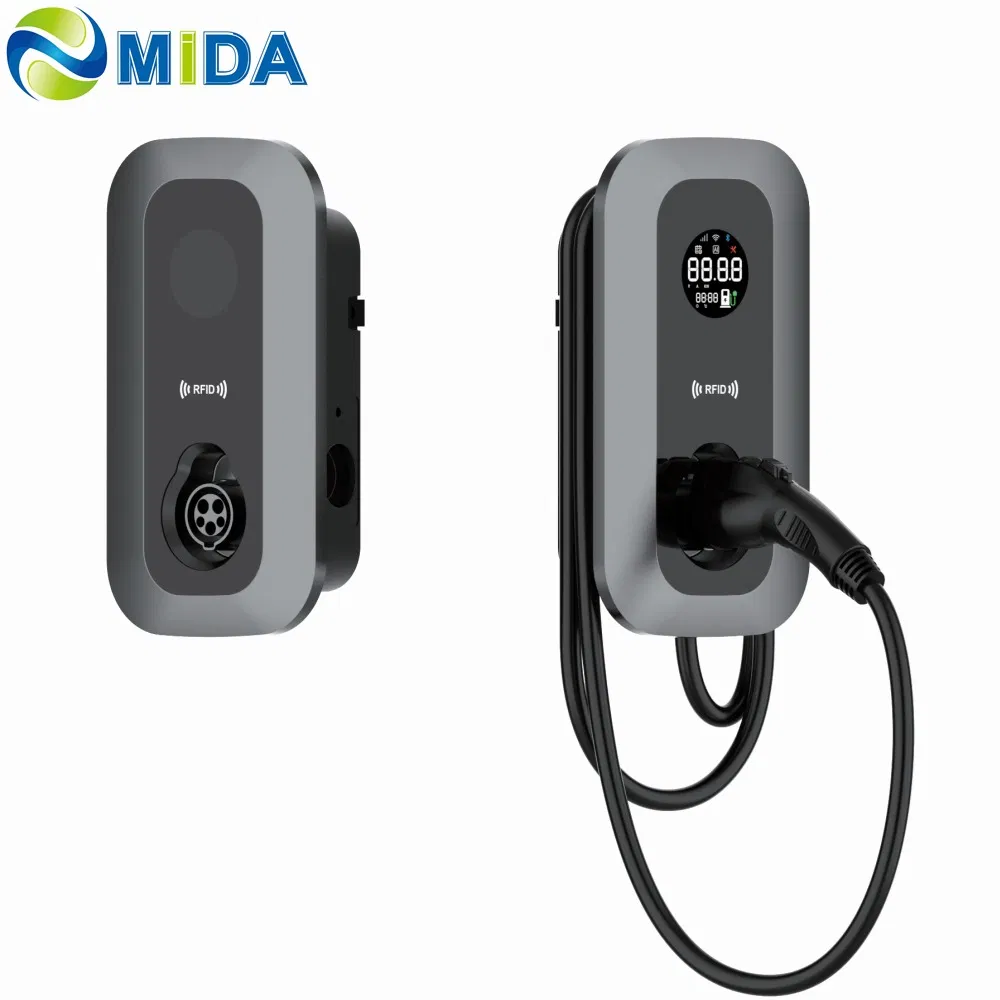

Smart EV Charger Point 12kw 50AMP 240V with APP Commercial EV Charging Station

1 / 4

Smart EV Charger Point 12kw 50AMP 240V with APP Commercial EV Charging Station

Customization:	Available
Start Mode:	APP Control, Book Charging, Remote Control, RFID Card
Number of Charging Interfaces:	One Pile with Multiple Charges

Send Inquiry

Product Description

Core Specifications

Model

MIDA-EVST-12KW

Installation

Wall Mounted

Rated Current

32AMP / 50AMP Optional

Voltage

AC 250V Single Phase

Protection

IP55 / Type B RCD

Material

Aluminum Alloy

Temperature

-30°C to +60°C

Certification

TUV, CE, FCC, ETL

Smart EV Charging Station Overview

12kw 50Amp 240V Commercial Grade Smart Point

Key Features

Heavy Duty and Outdoor-Ready Construction
Bluetooth & WiFi Connectivity with Mobile App Support
OTA Remote Firmware Updates for Future Compatibility
Breathing LED Status Indicator to avoid glare
Universal Compatibility: J1772/Type 2 connectors

Versatile Applications

Residential Use
Reliable and convenient charging for homeowners with single or multiple EVs.

Workplace Charging
Perfect for offices and factories to support employee green commuting.

Public & Commercial
Suitable for public parking garages and common commercial areas.

Fleet Management
High power output (7KW-12KW) to keep commercial fleets productive.

Technical Specifications

Electrical Parameters
Max Output	12KW at 240 VAC / 50A Max
Input Voltage	Nominal 230VAC 50-60 Hz (Single Phase)
Cable Length	16.4FT (5.0m) Standard / 26.2FT (8.0m) Optional
Connectivity	Built-in Wi-Fi (2.4GHz) / Bluetooth / 4G Optional
Standards	IEC 61851-1, IEC 62196-2, OCPP 1.6 Compliance
Enclosure Size	300mm × 160mm × 120mm
Warranty	2 Years Limited Product Warranty

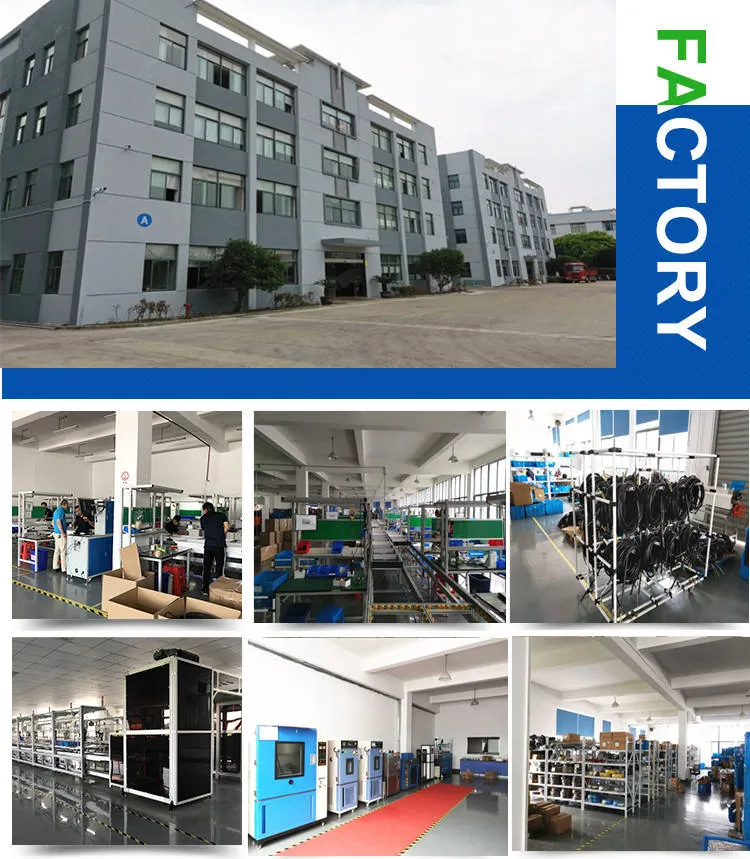

Product Details & Production

Frequently Asked Questions

Is this charger compatible with my electric vehicle?

Yes, it uses the standard J1772/Type 2 connector, making it compatible with virtually every electric vehicle available on the market.

Can I install this charging station outdoors?

Absolutely. The station features an IP55 waterproof rating and an aluminum alloy shell, designed to withstand outdoor environments and temperatures from -30°C to +60°C.

How does the Smart App connectivity work?

The station includes built-in Wi-Fi and Bluetooth. You can connect via a mobile app to monitor charging status, schedule sessions, and receive OTA (Over-the-Air) firmware updates.

What safety protections are included?

The charger is equipped with Type B RCD/RCCB 30mA leakage protection and meets international safety standards including CE, TUV, and FCC.

Does the charger support fast charging?

With a maximum output of 12KW and 50Amp, it provides a "Normal" to "Fast" AC charge, significantly reducing charging time compared to standard household outlets.

Is professional installation required?

Yes, for safety and warranty purposes, the input cord should be hard-wired by a licensed electrician.
