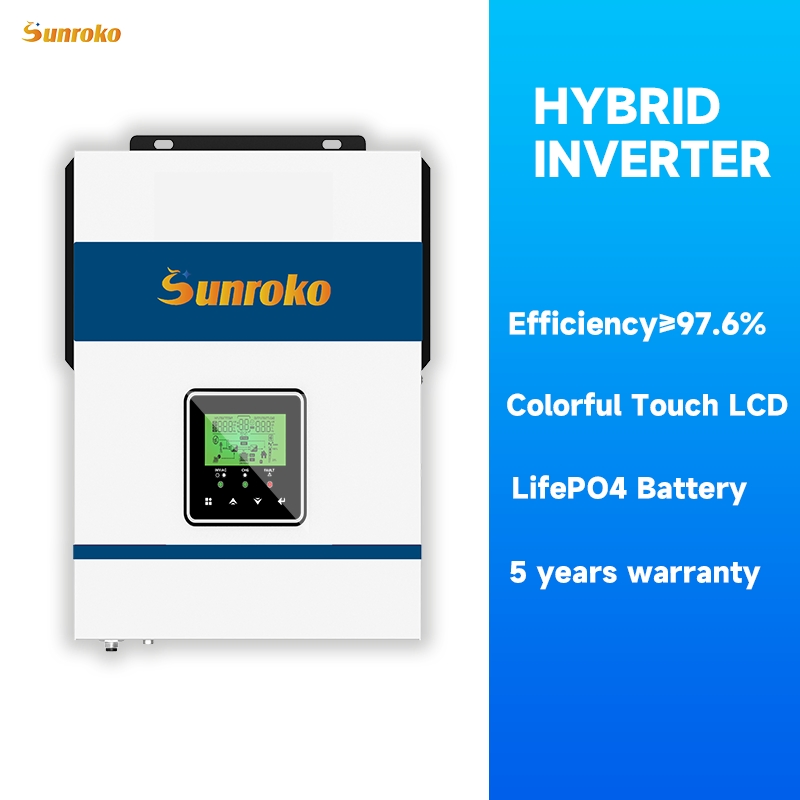

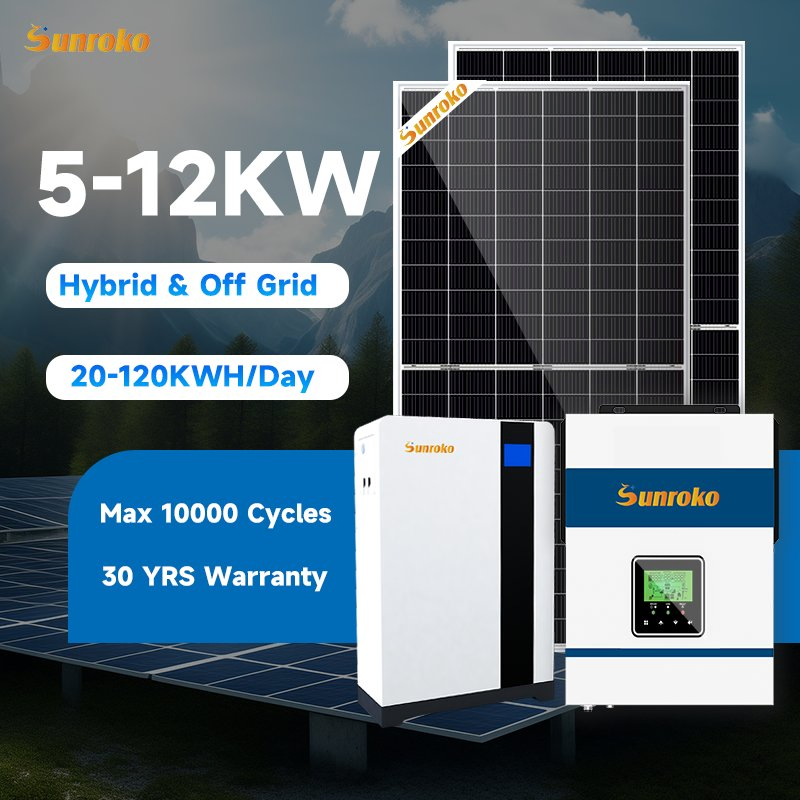

Complete Hybrid Solar Panel System 5kw 10kw 12kw Residential Energy Storage System

i

Basic Information

Condition:New

Certification:CE

Application:Home

Specification:Normal, 456× 750× 268.5

Battery Type:Lead-Acid or Lithium-Ion

Ingress Protection:IP 65

Communication:RS485/RS232/Can

Cooling Type:Intelligent Air Cooling

Max Efficiency:97.6%

Origin:China

!

Product Description

T

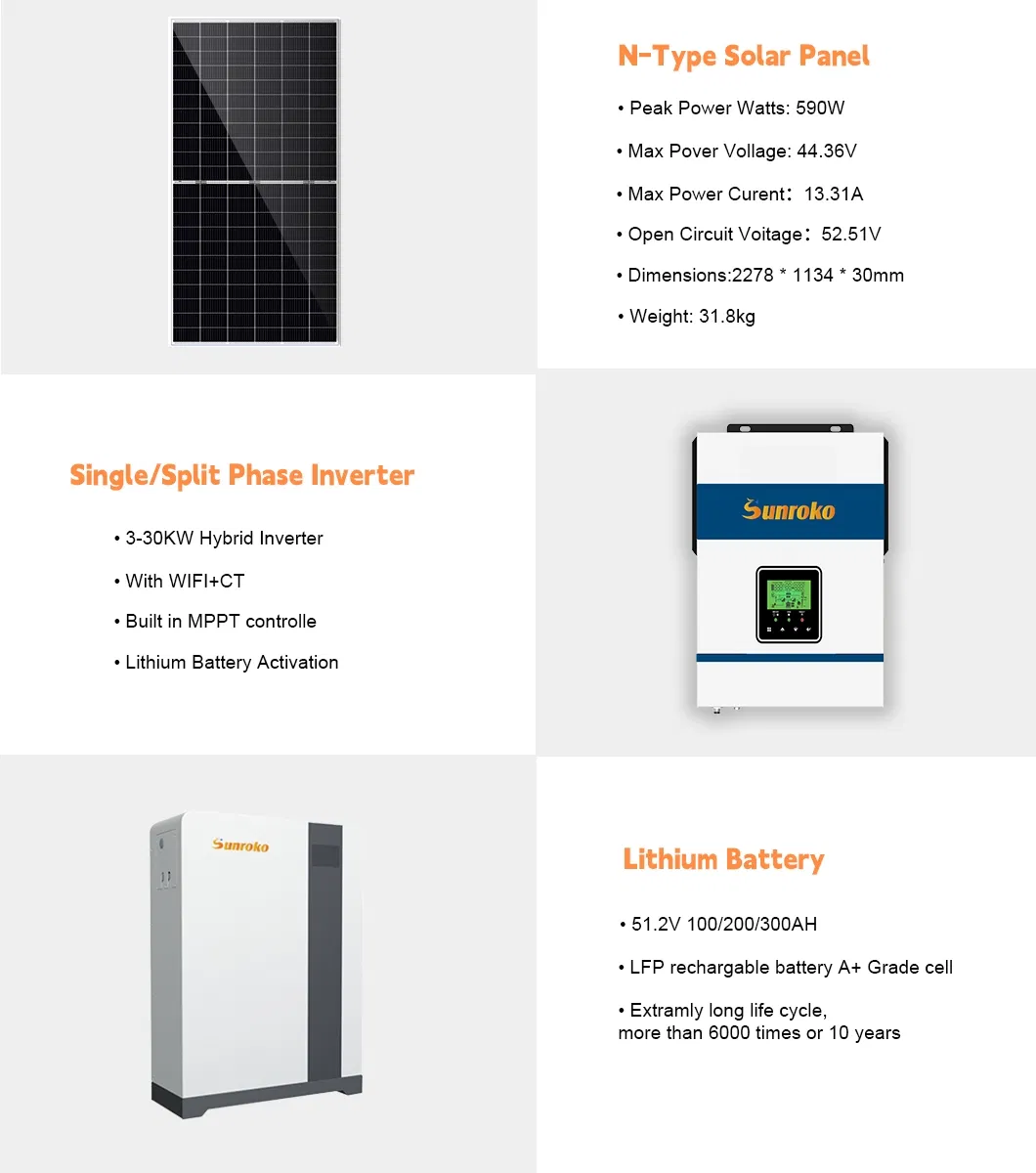

Product Parameters

Model	5KW	6KW	8KW	10KW	12KW
Battery Input Data
Battery Voltage Range (V)	40-60
Max. Charging Current (A)	120	150	190	210	240
Max. Discharging Current (A)	150	150	190	210	240
PV String Input Data
Max DC Input Power (W)	6500	7800	10400	13000	15600
MPPT Voltage Range (V)	200-650
Max PV Input Current (A)	13+13			26+13
AC Output Data
Rated Active Power (W)	5000	6000	8000	10000	12000
Max Apparent Power (VA)	5500	6600	8800	11000	13200
Peak Power (off-grid)	2 times of rated power, 10s
General Data
Operating Temp Range	-40 to +60°C
Noise	≤55 dB(A)
Weight (kg)	38

S

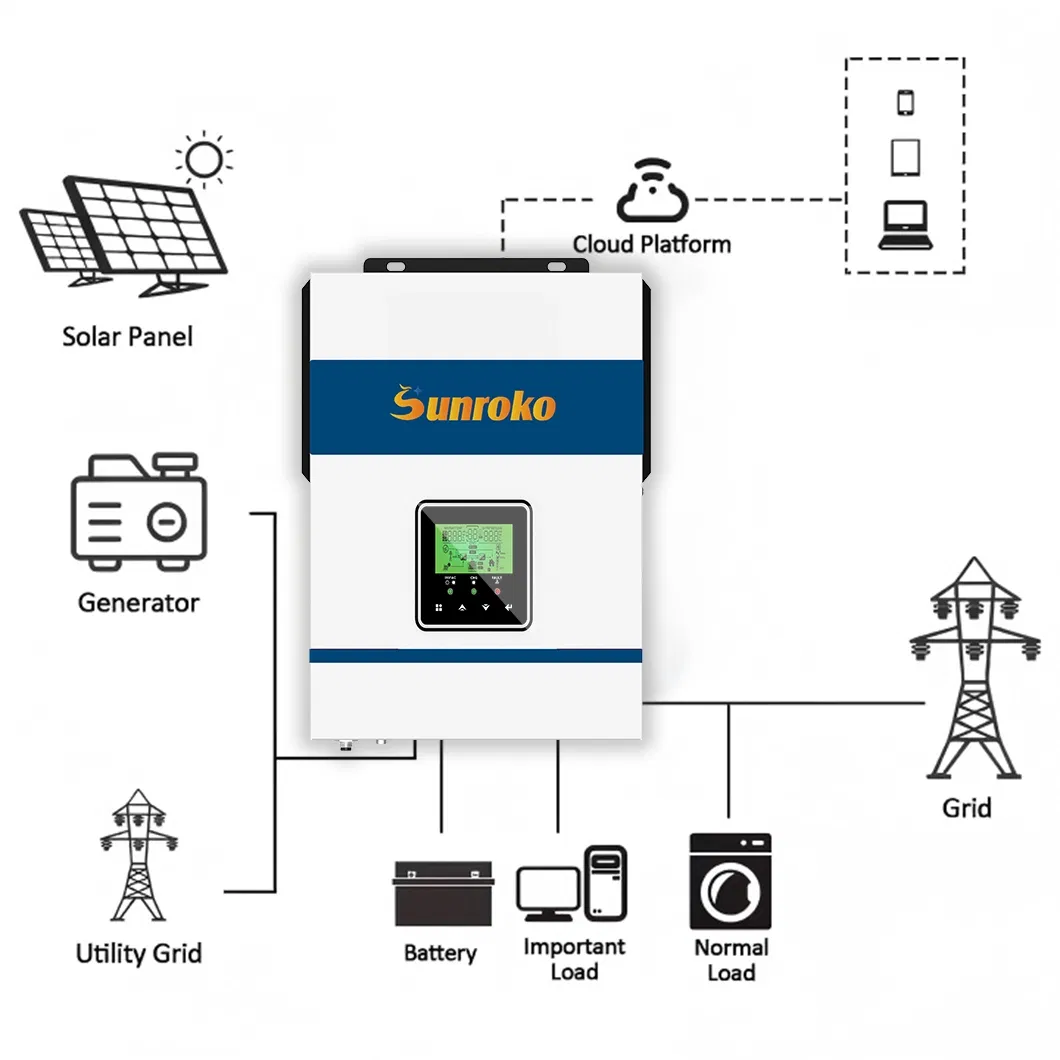

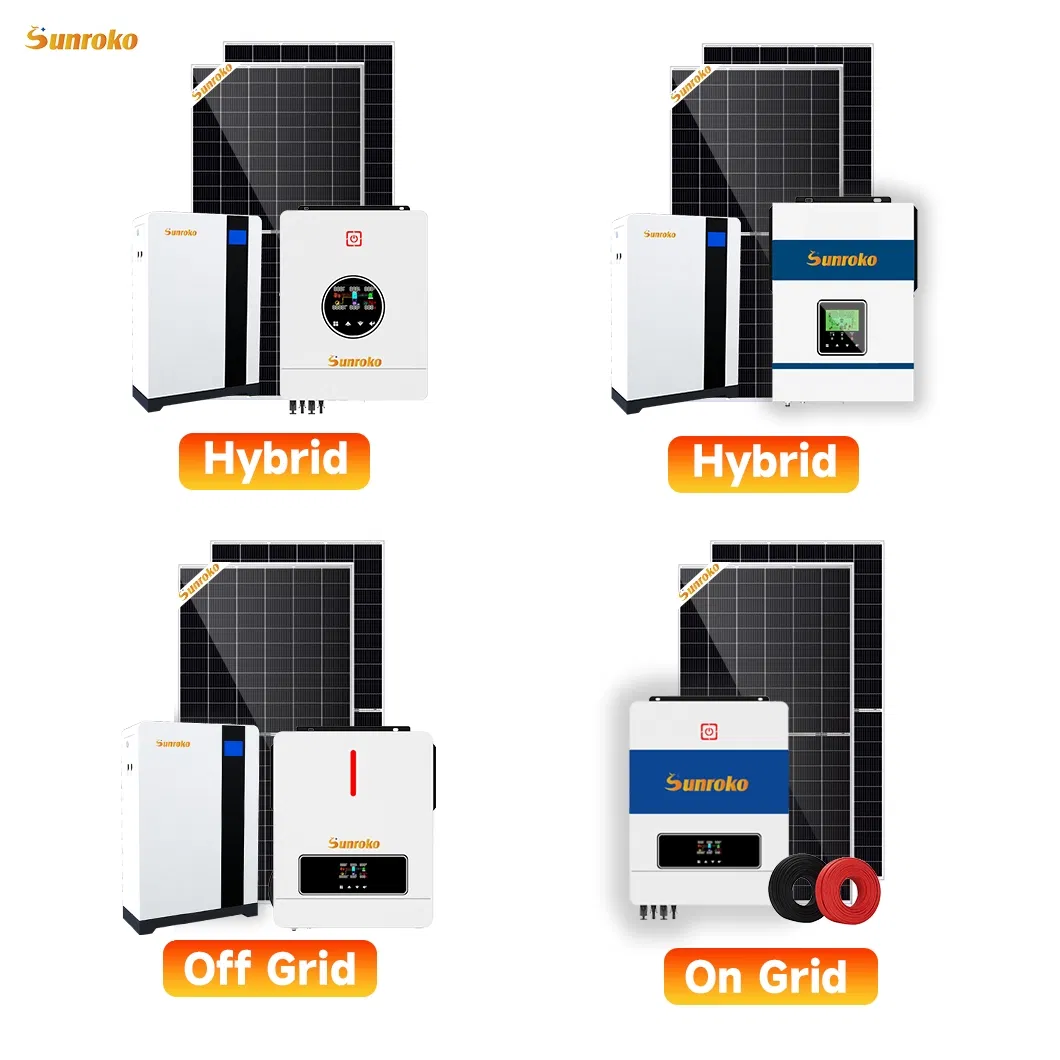

Solar System Type

F

Production Facility

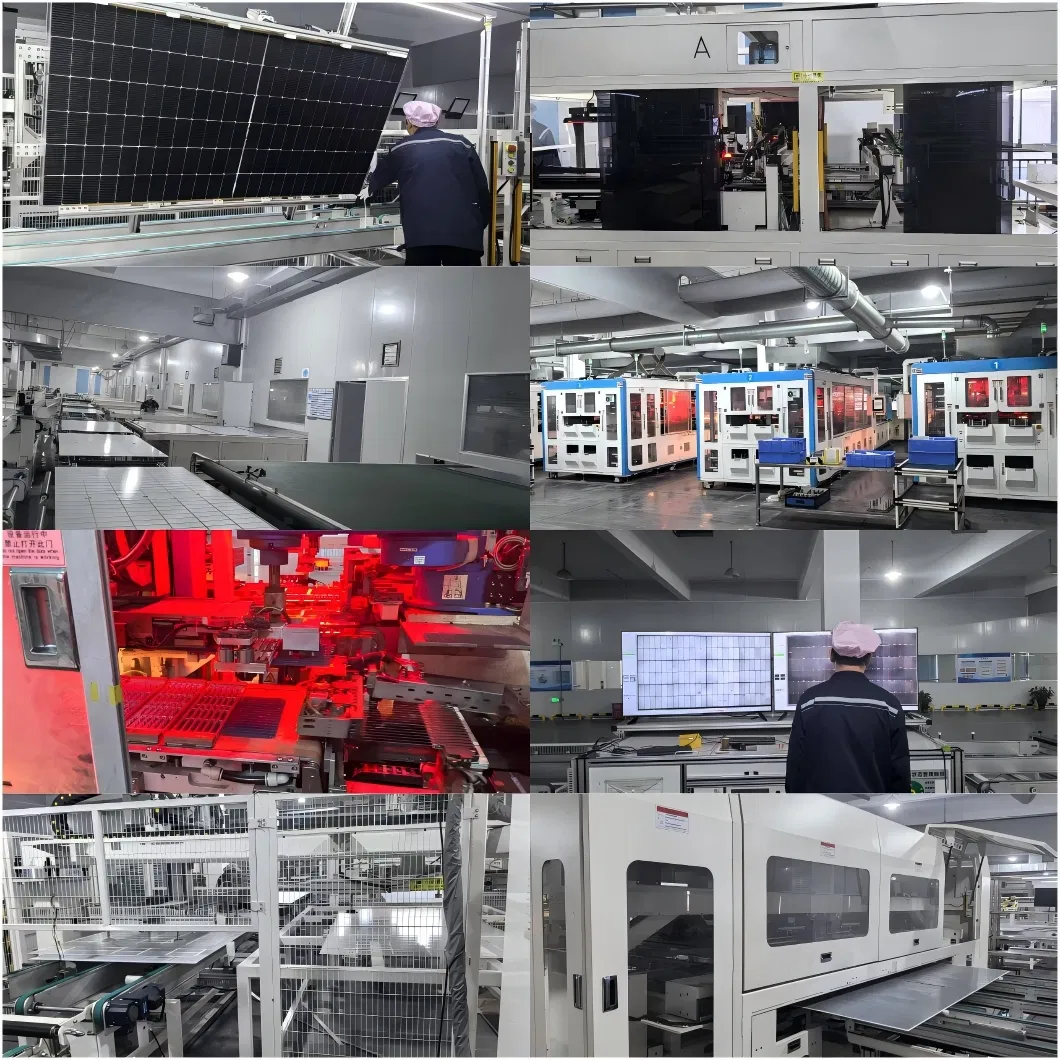

Solar Panel Production Line

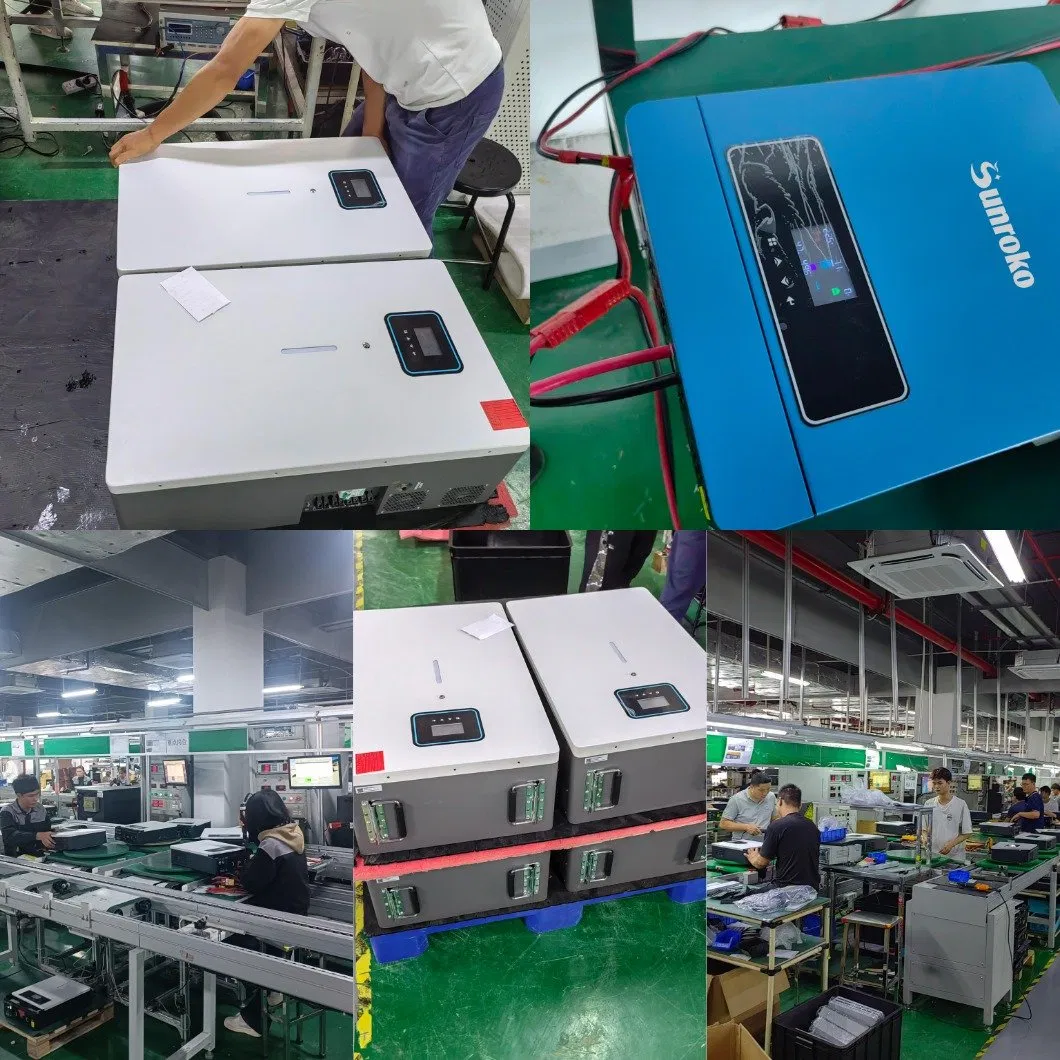

Solar Inverter Production Line

P

Packaging & Shipping

?

Frequently Asked Questions

1. Are you a factory or a trading company?

We are a factory with more than ten years of experience in the production of solar energy series products. You are welcome to visit our production facilities.

2. How do you ship the goods and how long does it take to arrive?

For small products, we usually ship by DHL, UPS, FedEx or TNT (3-5 days). For large orders, we ship by sea, which typically takes 7-30 days depending on the distance.

3. Can I customize solar generator power station products?

Yes. Please let us know your specific customization requirements and our team will get back to you with a solution as soon as possible.

4. How do you provide after-sales service?

We have a team of over 25 engineers who provide remote guidance for repair and parts replacement to ensure your system runs smoothly.

5. Can I expand the capacity of the solar power system in the future?

Yes, our systems are designed to be scalable, allowing you to add more solar panels or battery storage modules as your energy needs grow.

6. How long is the product warranty?

Our warranty periods range from 5 to 30 years, depending on the specific component and the final installation requirements.
