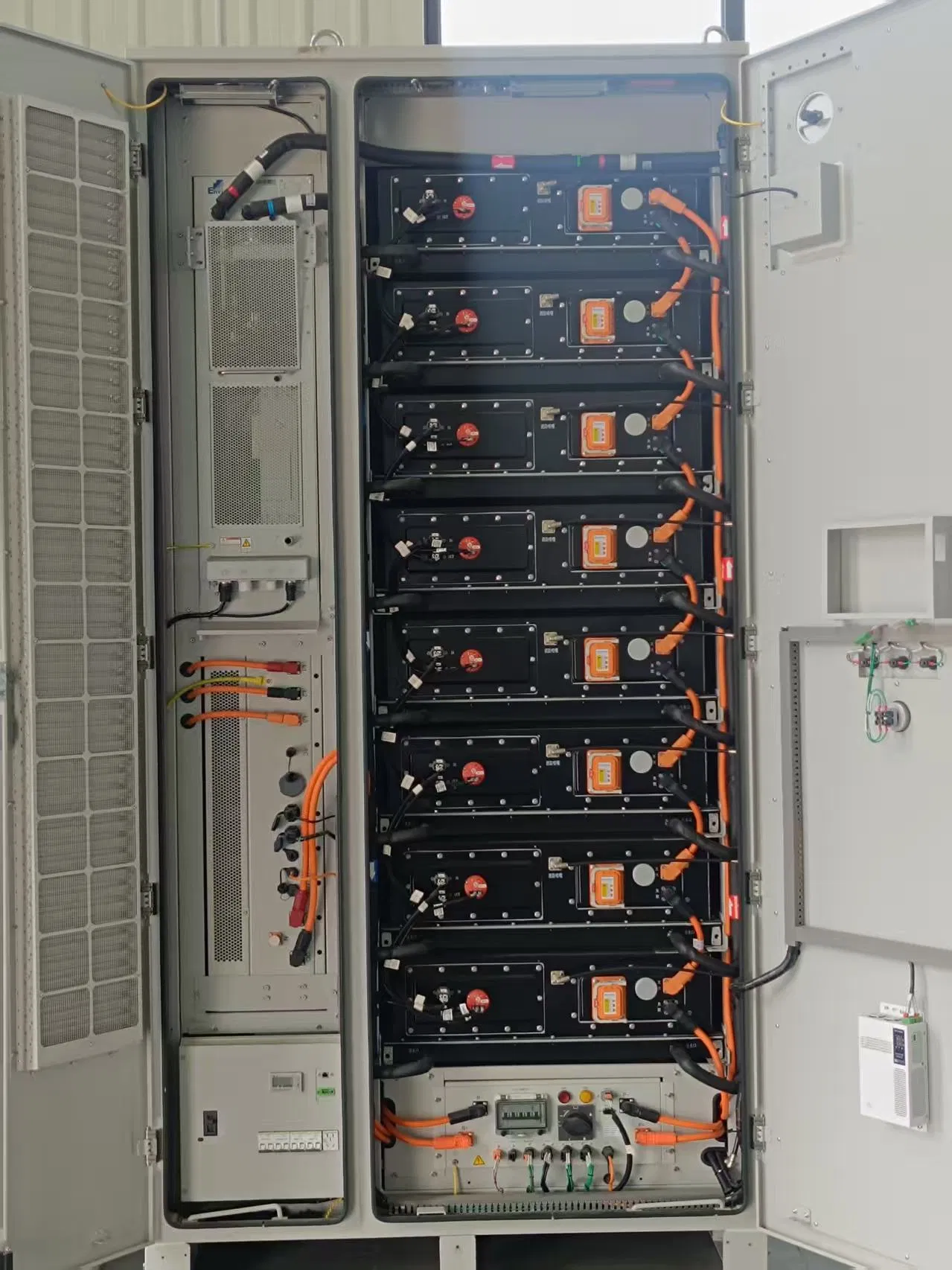

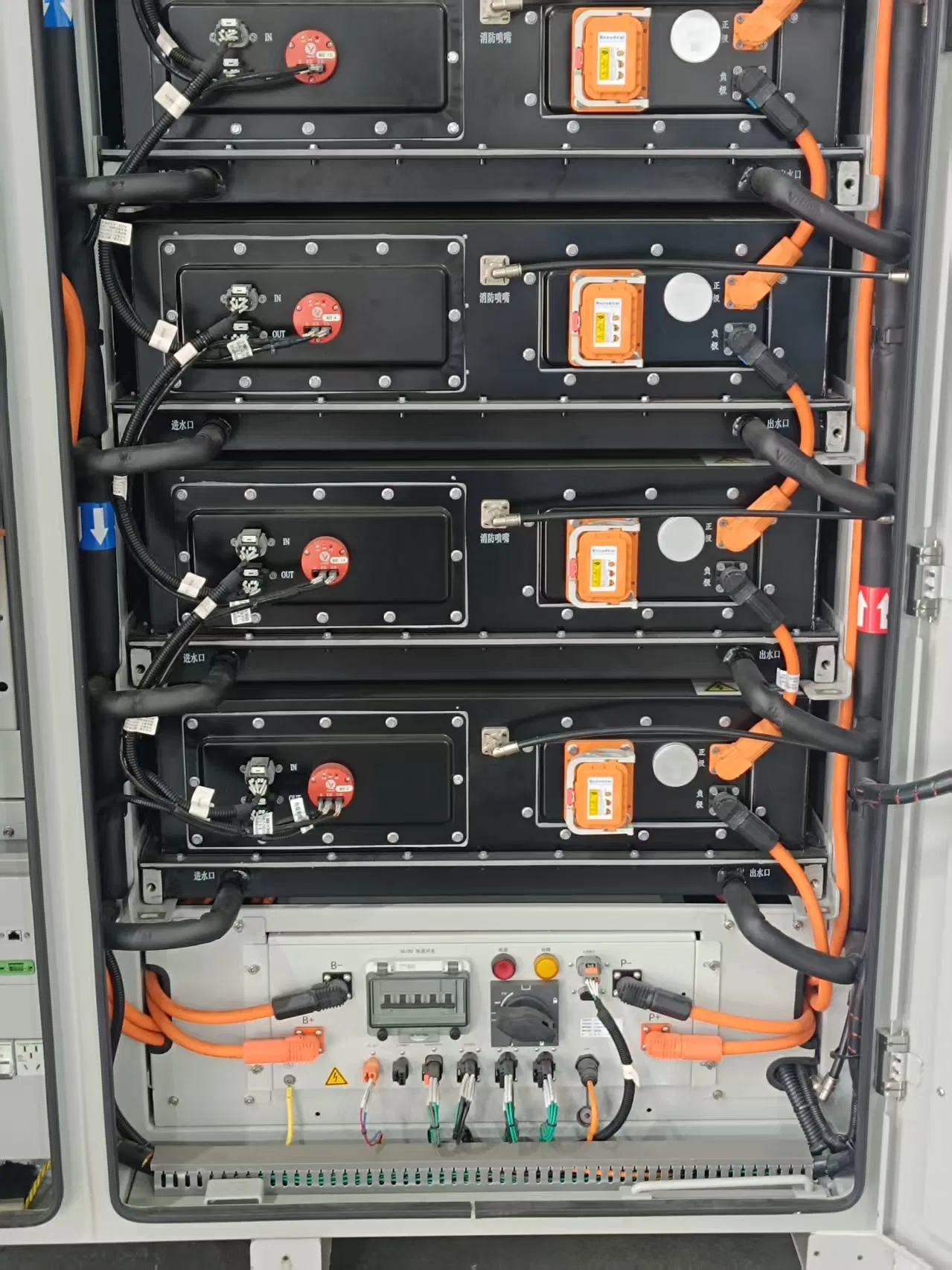

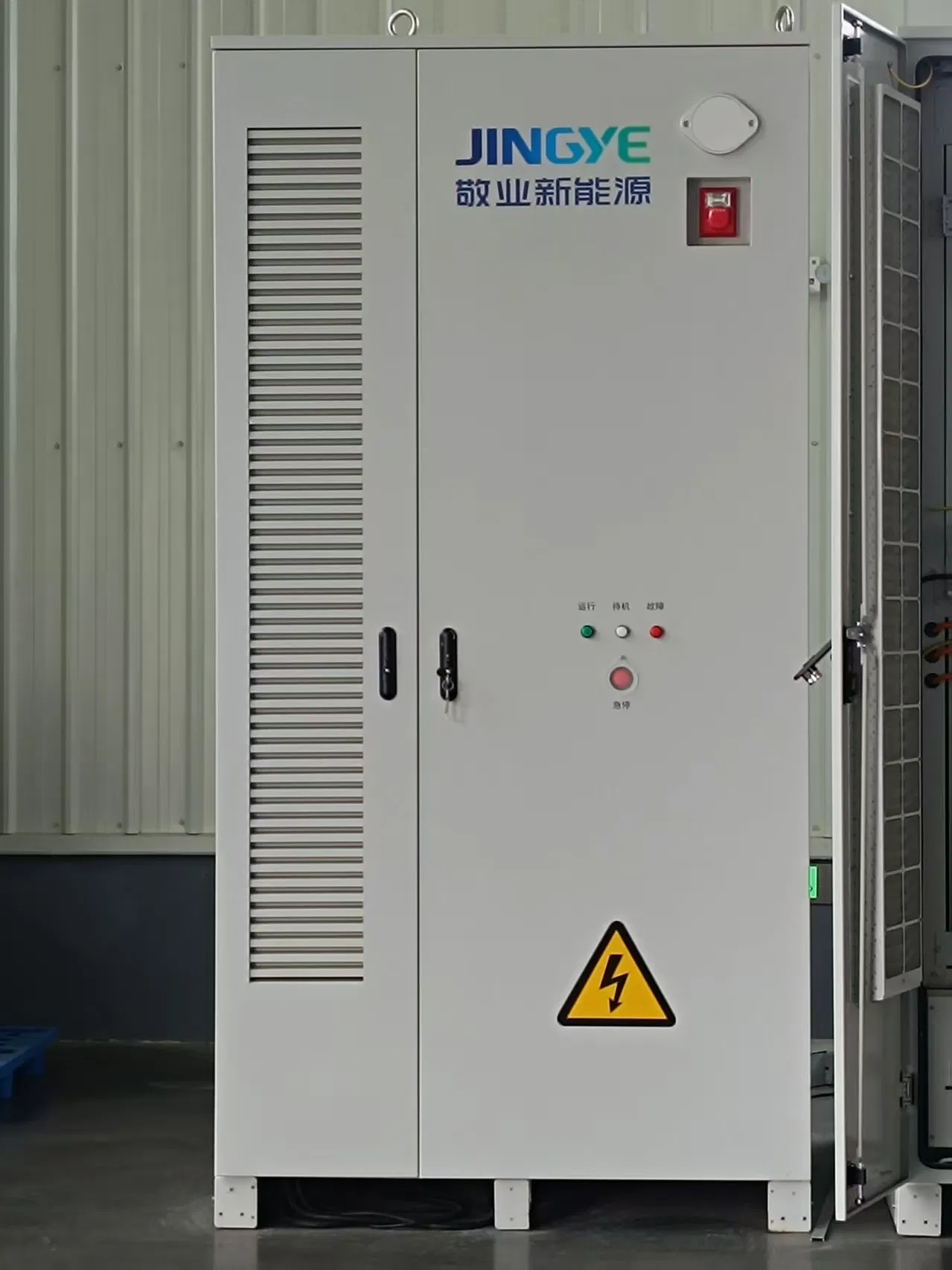

LFP-417kwh Liquid-Cooled Solar-Storage Integrated Energy System
LFP-417kwh Liquid-Cooled Solar-Storage Integrated Energy System
LFP-417kwh Liquid-Cooled Solar-Storage Integrated Energy System
LFP-417kwh Liquid-Cooled Solar-Storage Integrated Energy System
LFP-417kwh Liquid-Cooled Solar-Storage Integrated Energy System
1 / 5
LFP-417kwh Liquid-Cooled Solar-Storage Integrated Energy System
LFP-417kwh Liquid-Cooled Solar-Storage Integrated Energy System
LFP-417kwh Liquid-Cooled Solar-Storage Integrated Energy System
LFP-417kwh Liquid-Cooled Solar-Storage Integrated Energy System
LFP-417kwh Liquid-Cooled Solar-Storage Integrated Energy System

LFP-417kwh Liquid-Cooled Solar-Storage Integrated Energy System

Customization: Available
Nominal Voltage: 690
Warranty: 3 Years
Send Inquiry

Product Description

Basic Overview
Cycle Life: 10 Years (2 Charges/Discharges Daily)
Customize: Available
Battery System: Lithium Iron Phosphate
Cycle Times: >8000 Times (90%DOD)
Charging Temp: 0ºC~55ºC
Discharging Temp: -20ºC~55ºC
Storage Temp: -20ºC~60ºC
Origin: China
Commercial and Industrial Energy Storage Cabinets
Integrated Energy System

User-Side Solutions: LFP-261KWh, LFP-417KWh

◈ High Energy Density: Utilizes 314Ah high-energy density cells.
◈ High Safety: Full temperature range/voltage monitoring, chemical and water firefighting systems.
◈ High Efficiency: >90% charge-discharge efficiency.
◈ Expandability: Modular design for scalable power requirements.
◈ Intelligent: Real-time monitoring by BMS.
Technical Specifications

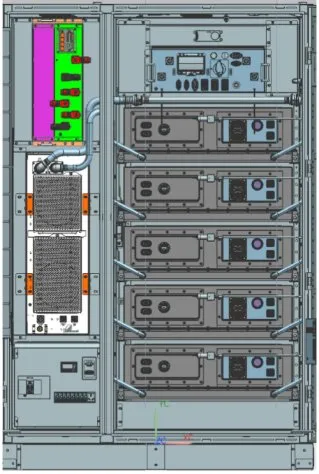

LFP-261KWh Cabinet Parameters
Storage Configuration314Ah, LFP Battery System
Combination Form5*1P52S
Nominal VoltageDC832V
Protection LevelIP55
Cooling MethodLiquid Cooling
Fire ProtectionAerosol

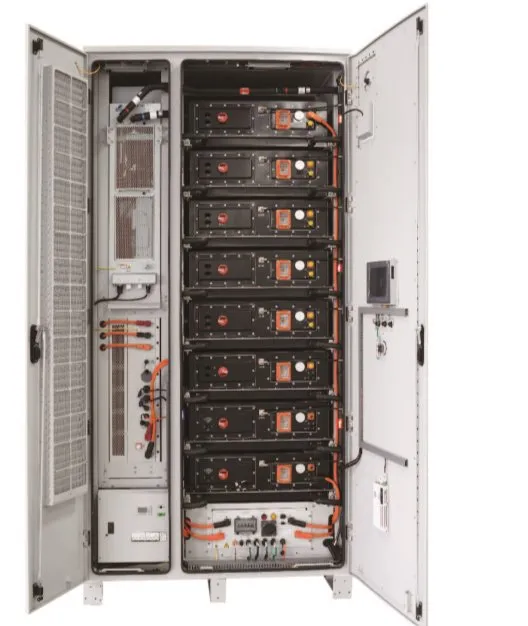

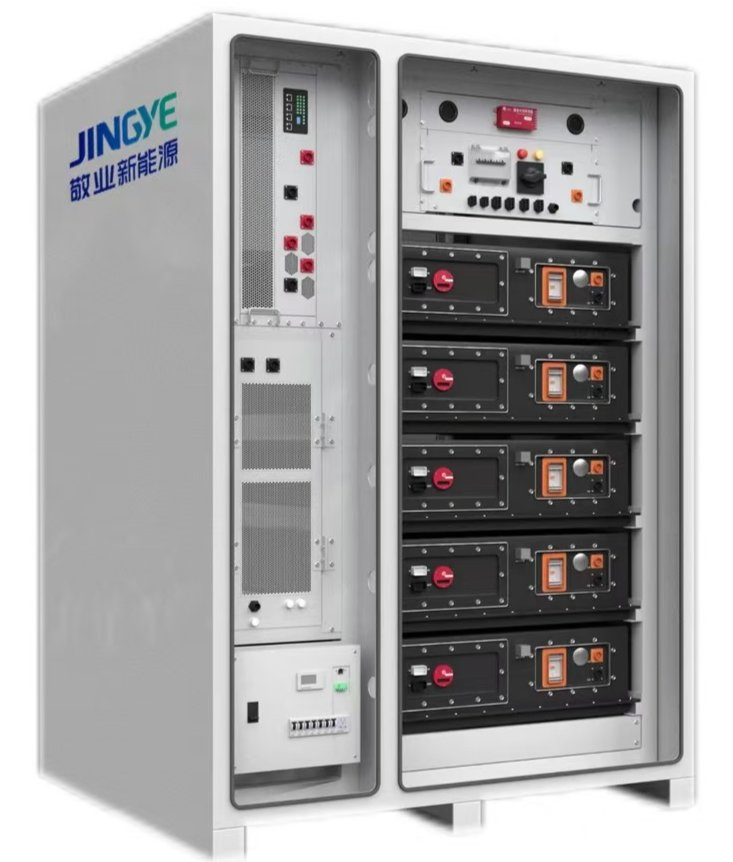

System View 1 System View 2

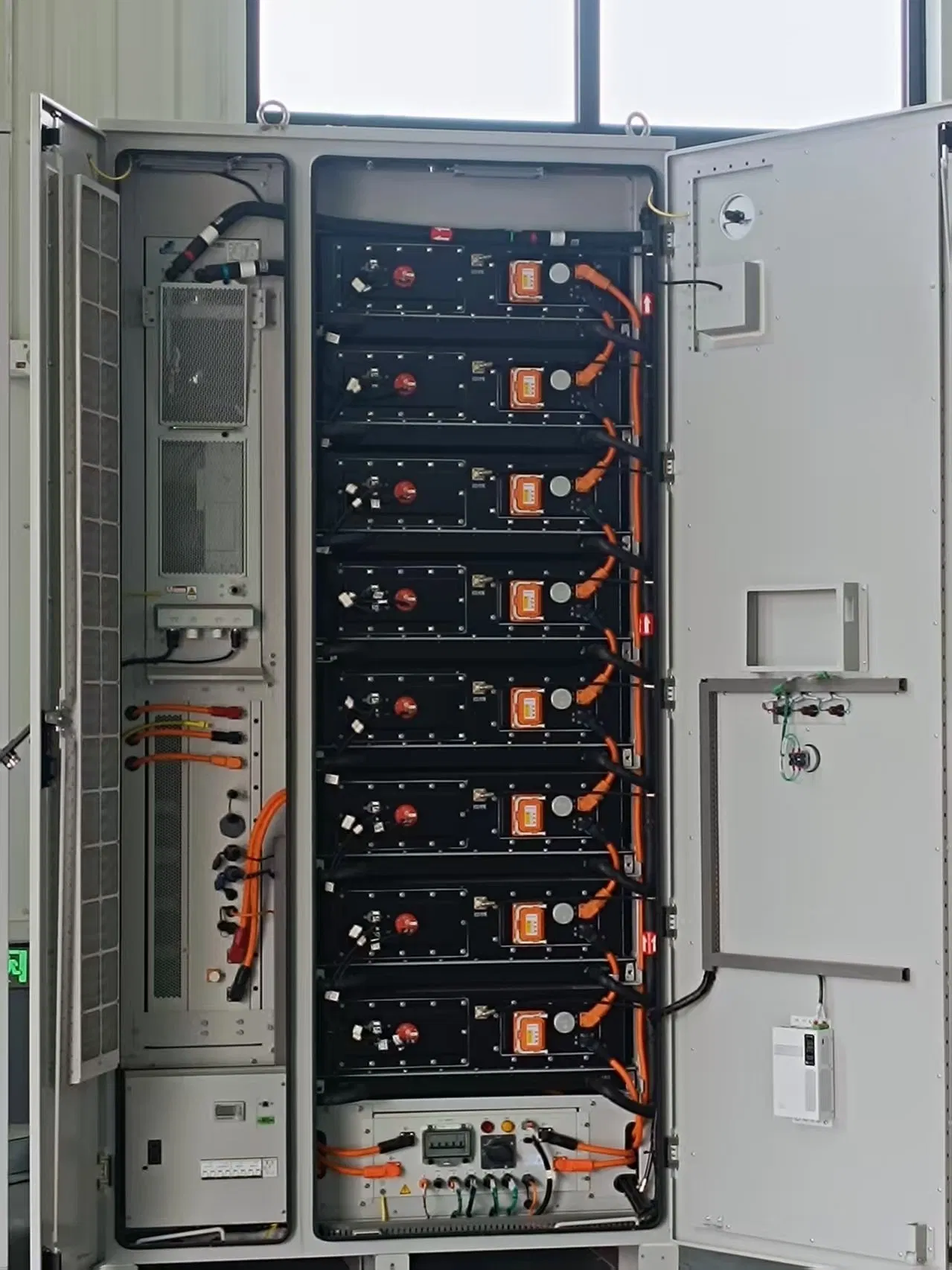

LFP-417KWh Cabinet Parameters
Storage Configuration314Ah, LFP Battery System
Combination Form8*1P52S
Nominal VoltageDC1331.2V
Operating Altitude≤4000m
CommunicationCAN/RS485/Ethernet
Lifecycle10 Years

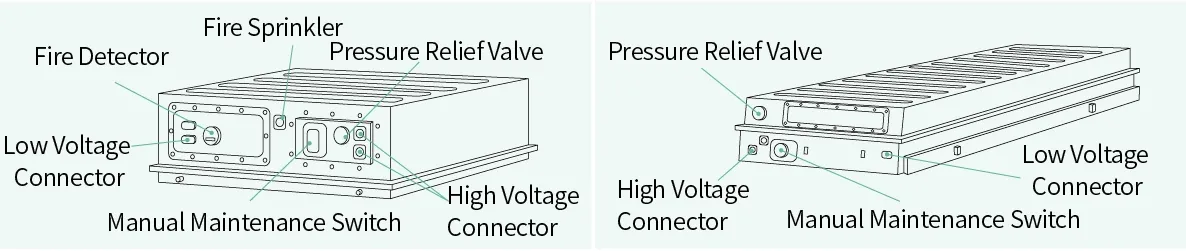

Full Product Line

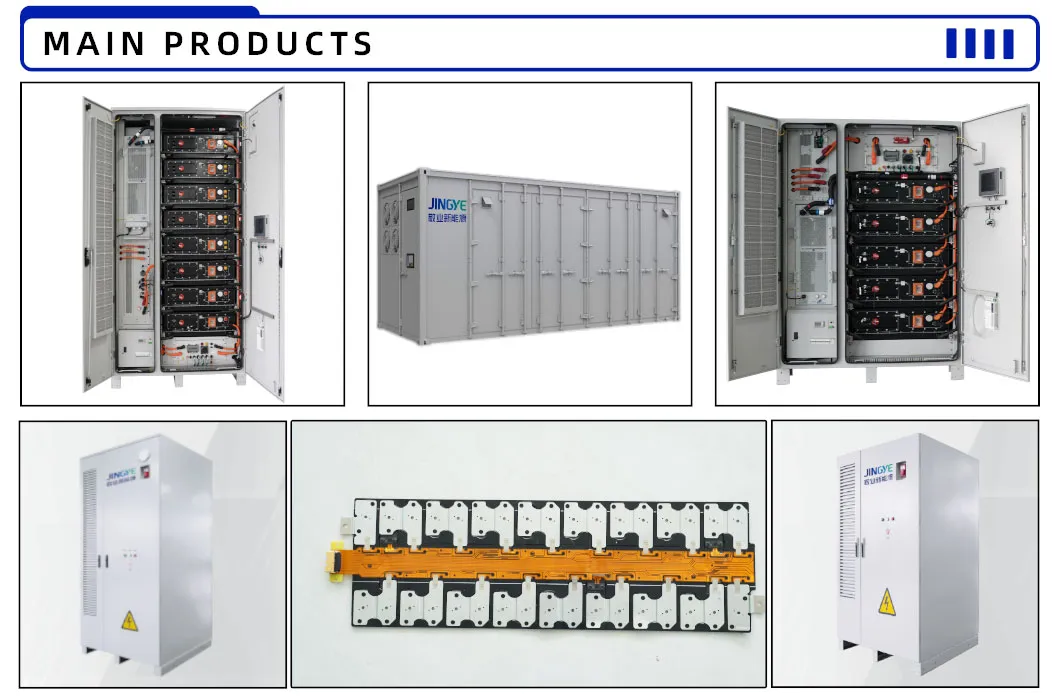

Main Products
Primary Products

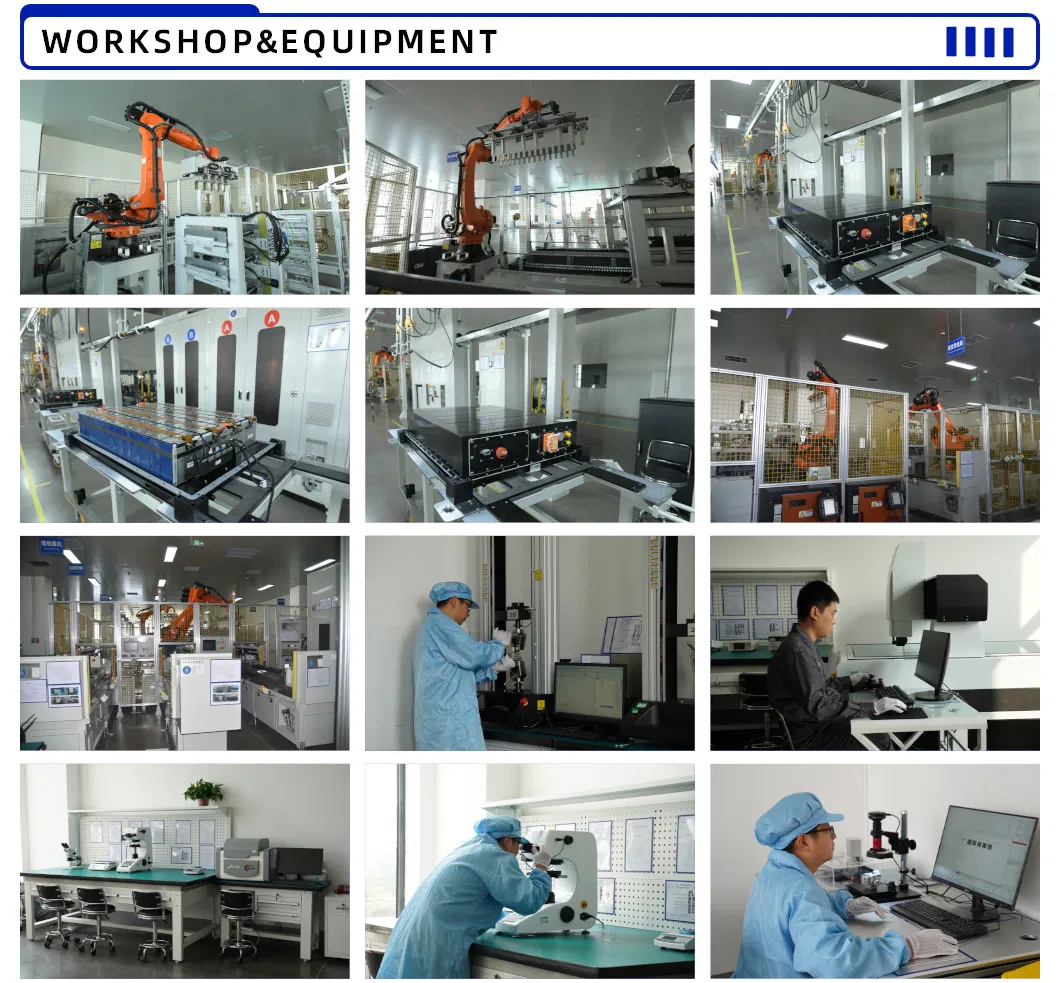

Workshop & Equipment
Advanced Production Line

The facility features advanced automated production lines with an annual capacity of 5 GWh for energy storage systems and 2.4 million pieces of CCS busbars. These products serve smart grids, wind/solar storage, industrial energy storage, and green transportation sectors globally.

Certifications
Certifications
Exhibition
Exhibition
Frequently Asked Questions
Q1: What are the main products available? A: Our core offerings include 5MWh Energy Storage Containers, Commercial & Industrial Energy Storage Cabinets, CCS Integrated Busbars, and Battery Packs.
Q2: Do you support customization services? A: Yes, we offer flexible customization services for products across diverse process types to meet specific project needs.
Q3: How do you ensure production and delivery timelines? A: Equipped with a comprehensive automated production line and proficient technical personnel, we guarantee stable production and on-time delivery.
Q4: How can we obtain detailed quotations? A: Please contact our online staff directly through the website, and they will promptly provide you with a detailed quotation.
Q5: Are you a sales company or a source factory? A: We are a formal source factory with standardized production processes, offering competitive prices and high-quality products directly.
Q6: What is the typical lifecycle of the storage systems? A: Our equipment is designed for a 10-year lifecycle based on two full charges and discharges daily, accounting for standard annual decay.
