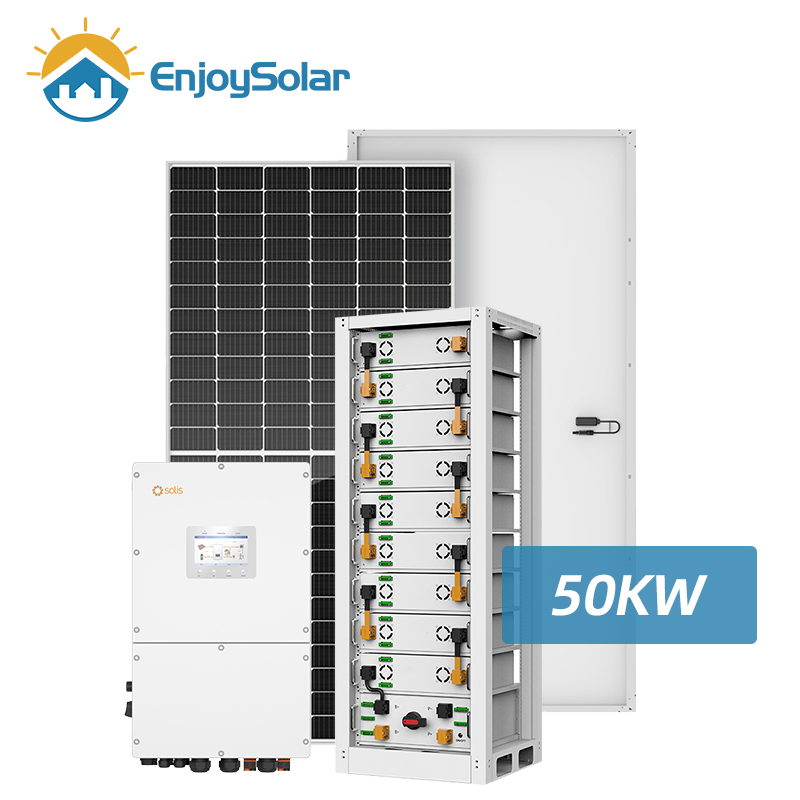

| Model | 30KW | 50KW | 100KW |
|---|---|---|---|
| Mono Half Cell Solar Panel 570W | 42PCS | 75PCS | 150PCS |

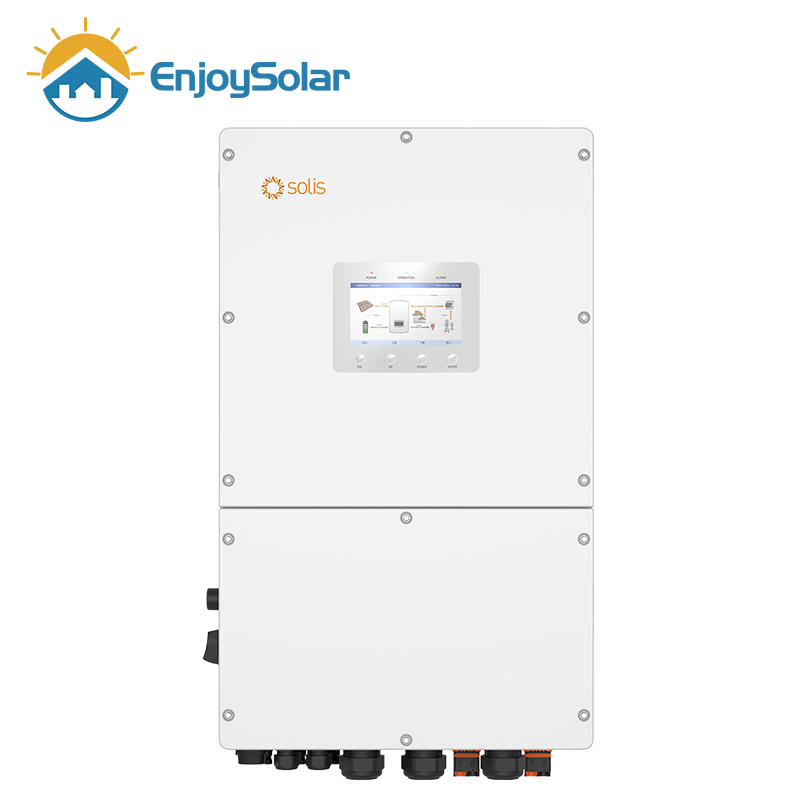

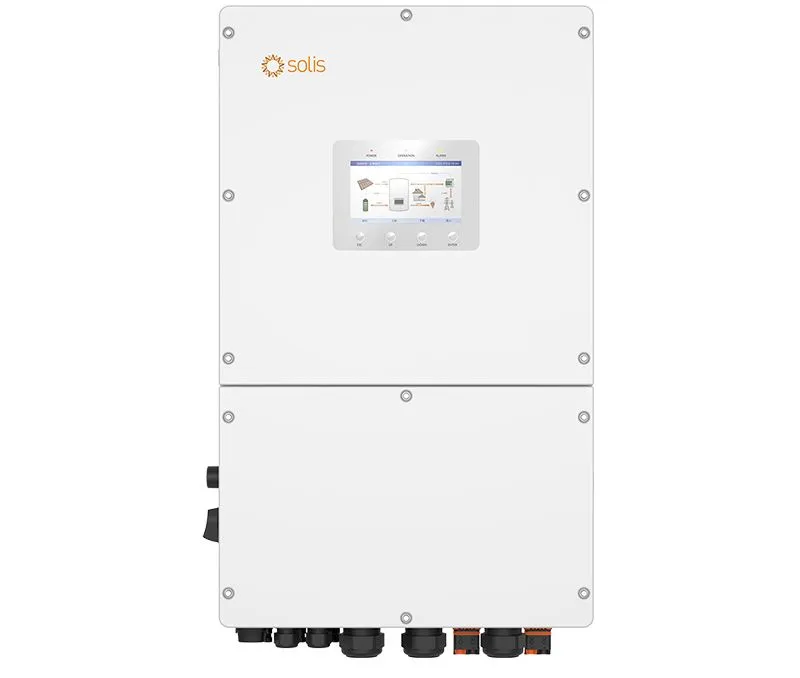

| Hybrid Inverter | 50KVA 1PC | 50KVA 1PC | 100KVA 1PC |

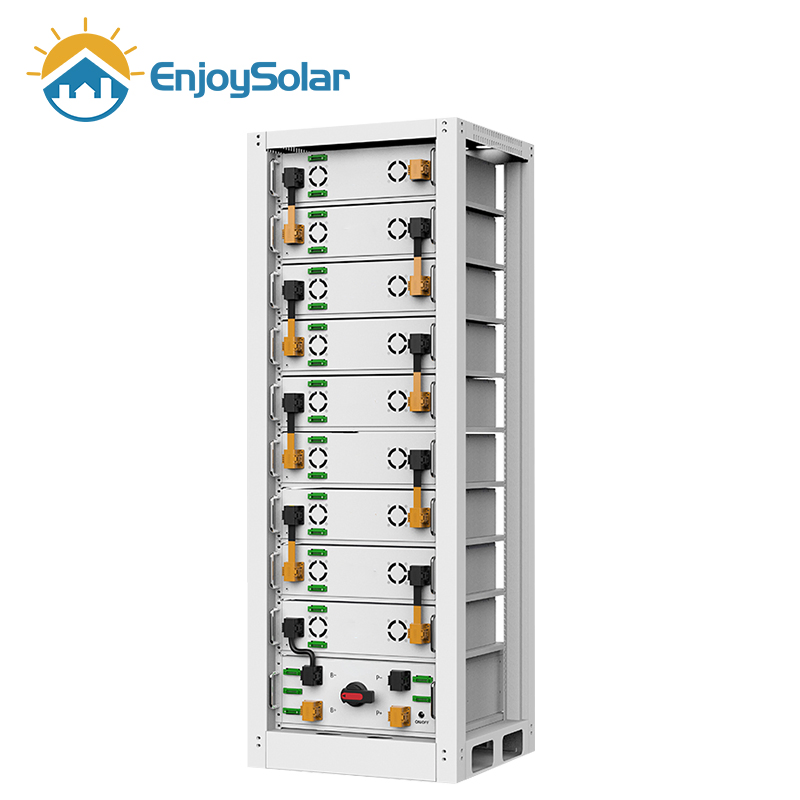

| LiFePO4 Battery | 48.8KWH (Optional) | 100.4KWH (Optional) | 200.7KWH (Optional) |
| DC Cable 1*4MM2 | 600 Meters | 800 Meters | 1000 Meters |
| MC4 Connector | 10 Pairs | 14 Pairs | 20 Pairs |
| Mounting System | Customized Designed Roof/ Ground Mounting Kits | ||
| Solar Installation Tool | 1 Set | 1 Set | 1 Set |

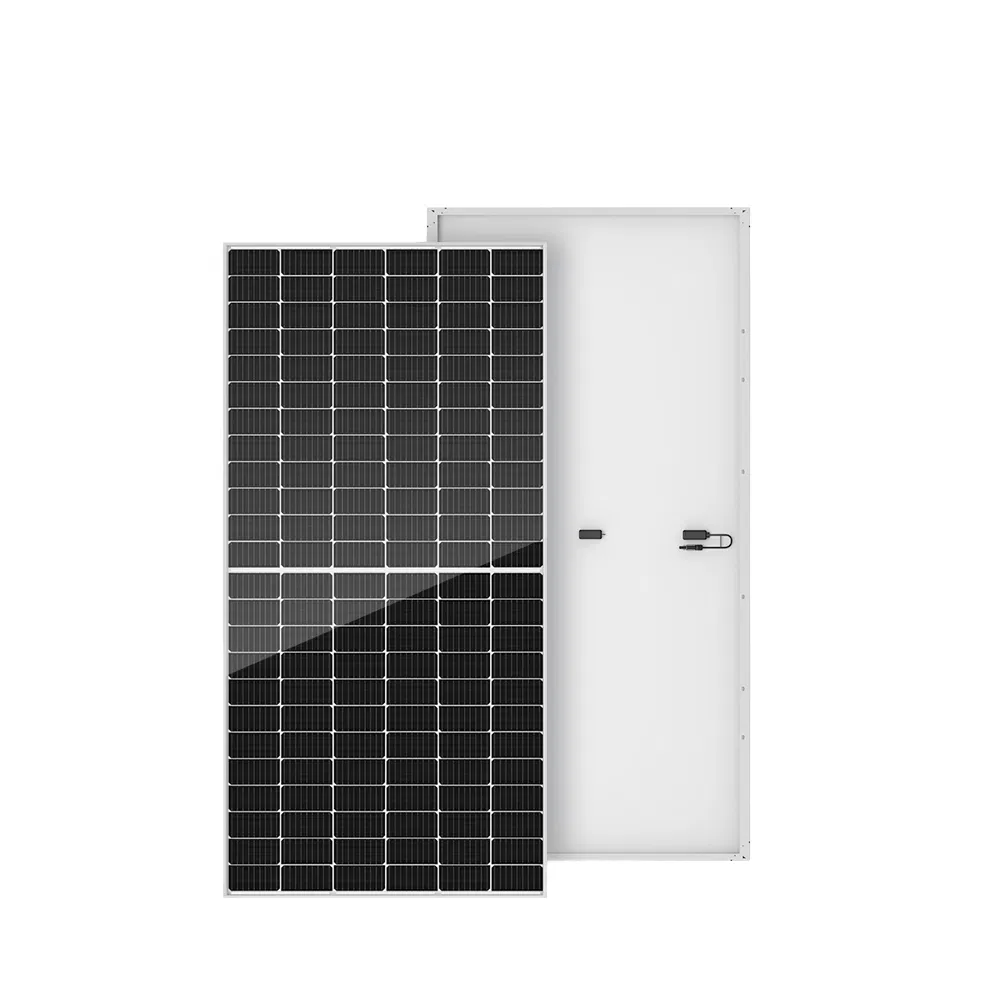

Model: ES570M-PH
Peak Power Watt: 570Wp
Open Circuit Voltage (Voc/V): 50.2V
Short Circuit Current (Isc./A): 14.34A
Voltage at Maximum Power (Vmp./V): 42.51V
Current at Maximum Power (Imp./A): 13.41A
Efficiency: 22.07%
Dimensions: 2278*1134*35mm
Weight: 28.6kg
Increases energy independence for homeowners and commercial users
Smart Monitoring & Remote Firmware Upgrade
Built-in Anti-feed-in Function
AFCI (Optional) & Rapid Shutdown Ready
Support for Time-of-use Optimization

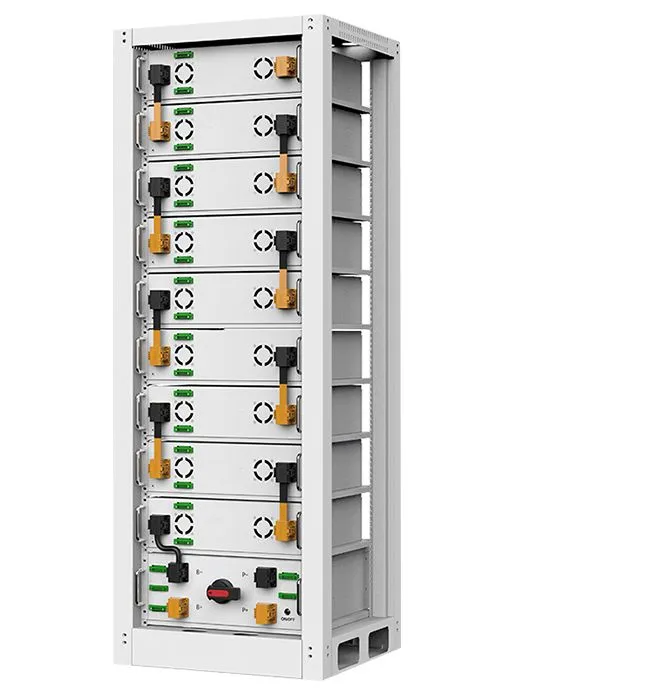

Deep Cycle long lifespan
High discharge performance
Easy installation and Maintenance-free
AGM/GEL/Lithium Ion Battery Type
High Voltage Battery
More than 6000 times, up to 90% DOD
Wide suitability of ambient temperature range

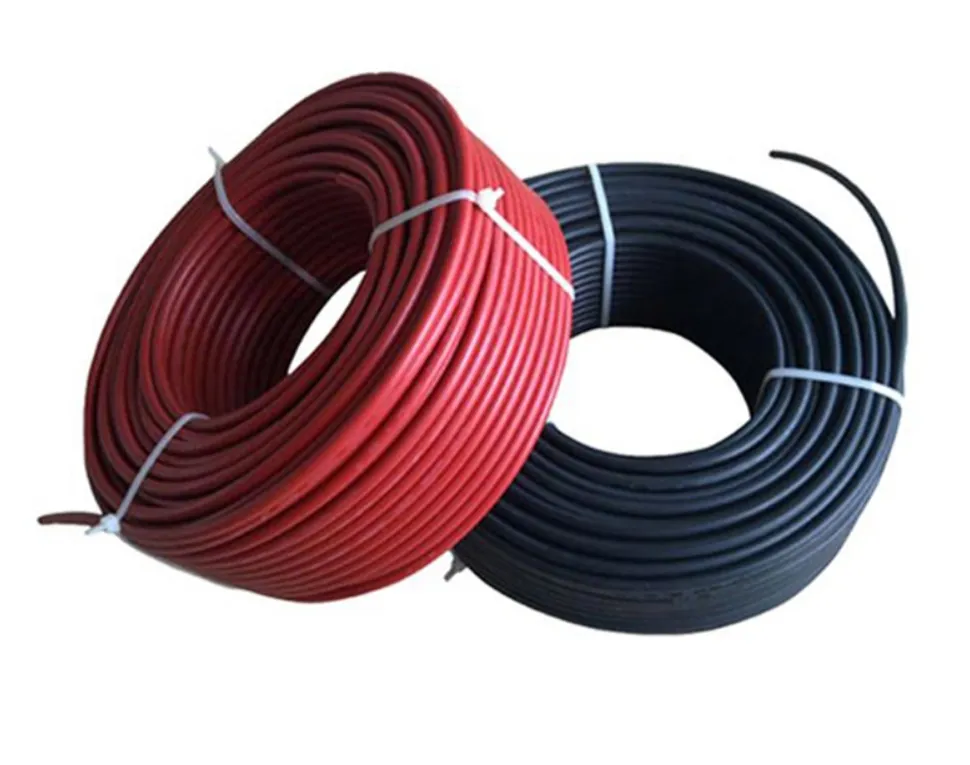

Cross Section: 4mm2, 6mm2 Optional
Rated Voltage: 600VDC /1000VDC (TUV)
Rated Current: 55A, 70A
Colors: Black For STD, Red Optional.
Lifetime: ≤25 Years

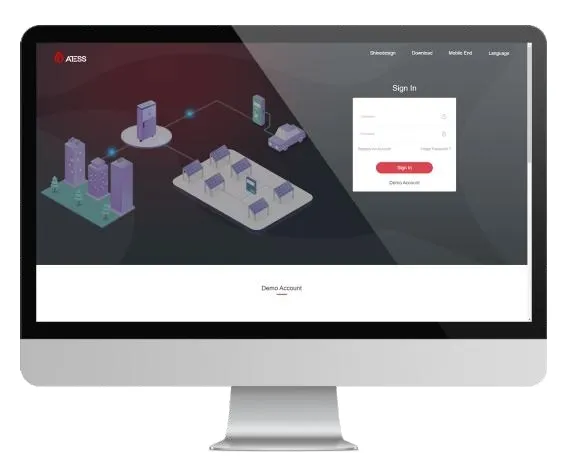

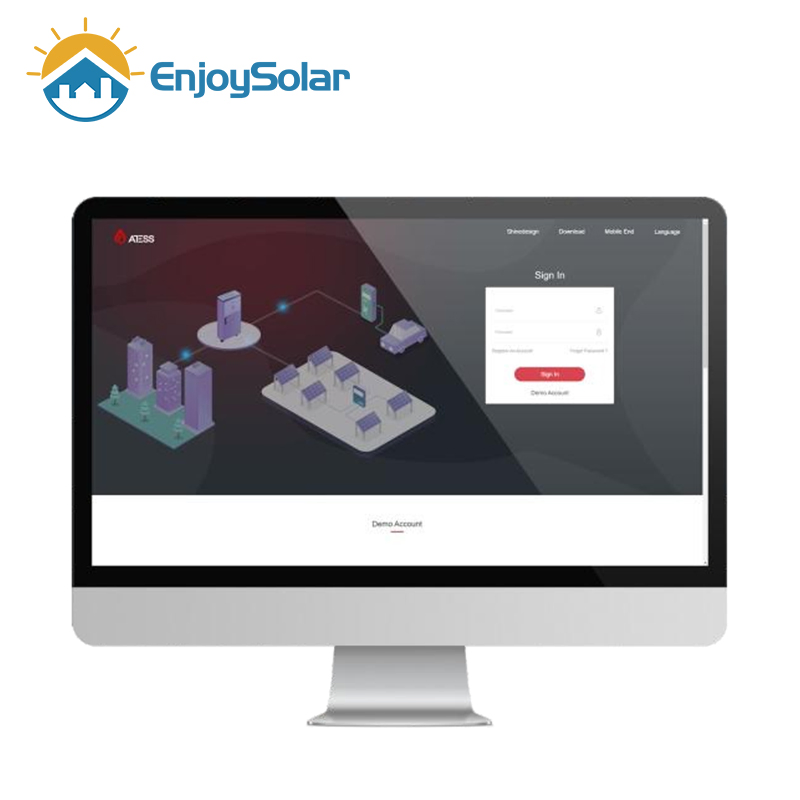

Open Station Supports one-click Installation and registration
Support one-click dispatch and navigation
Safe operation, traceable logs, etc.
Support full life-cycle data storage to ensure data security and reliability

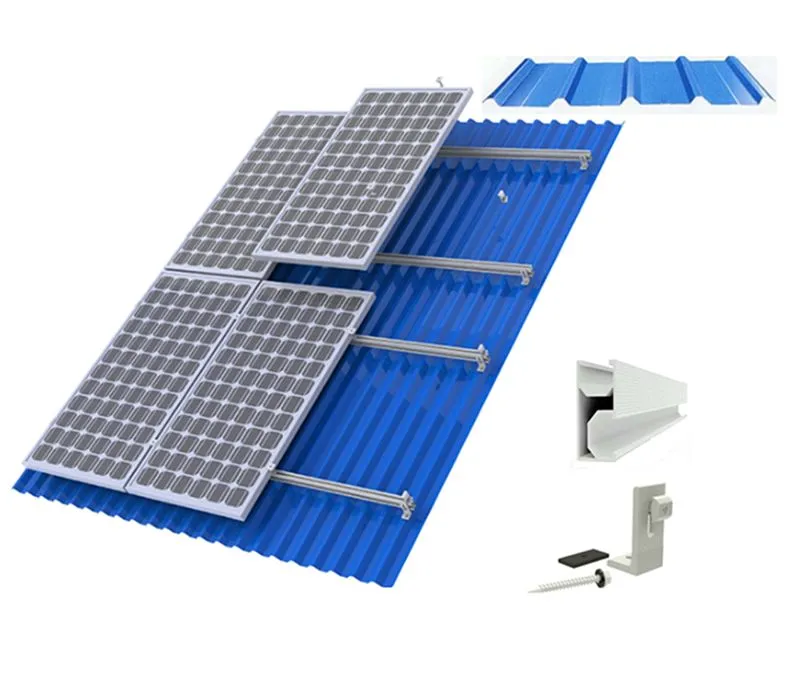

MOUNTING RAIL & RAIL SPLICE KIT: AI6005 & SUS304 BOLT
MID & END CLAMPS: 30, 35, 40MM
Optional: Roof Mounting / Ground Mounting / Carport etc. Design diagram according to customer's installation area.
