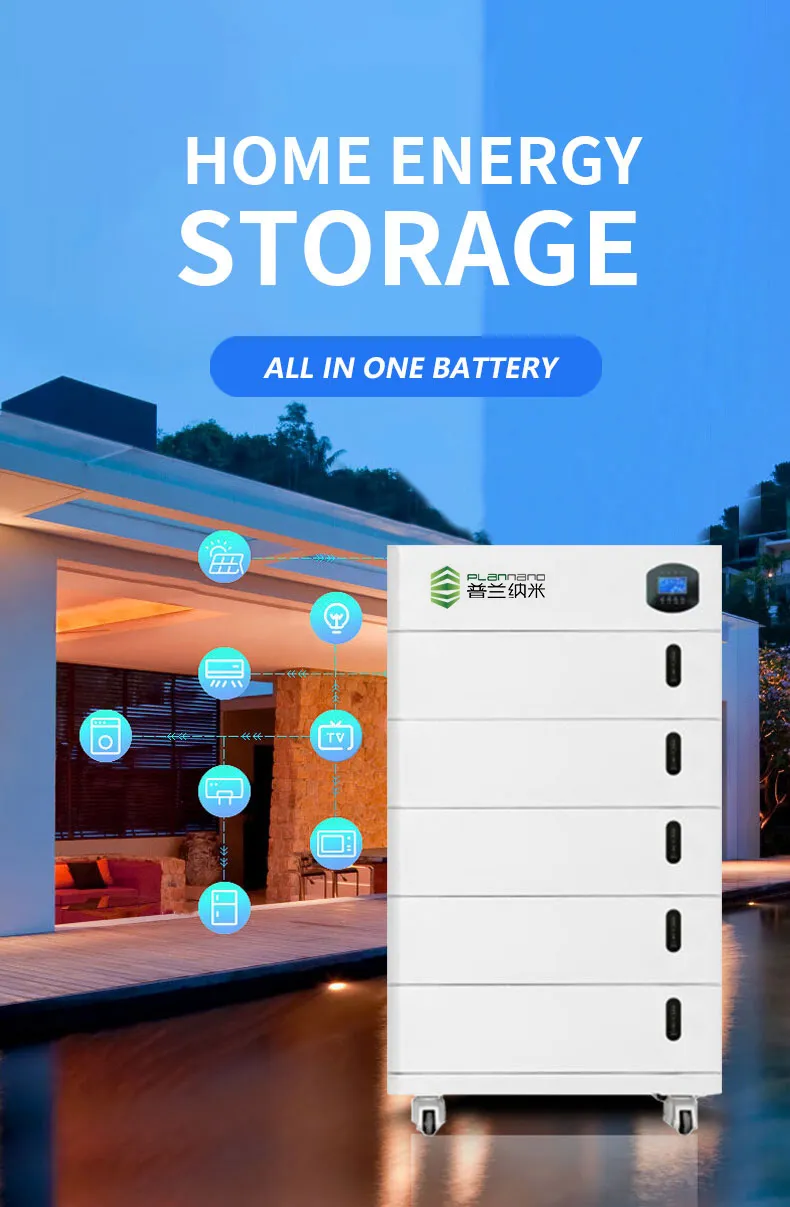

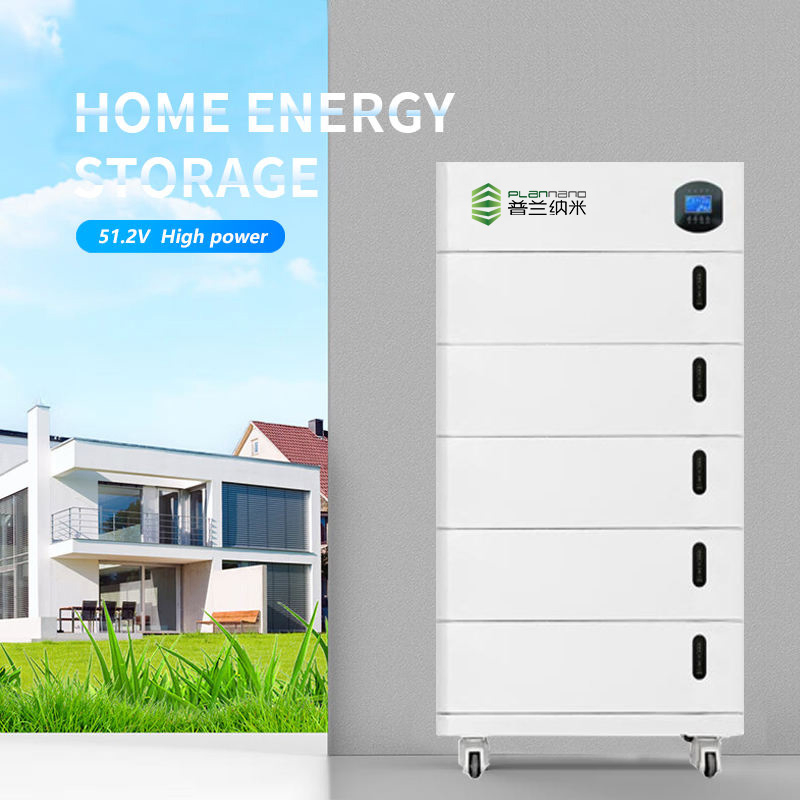

LiFePO4 Solar Energy Storage System Inverter Integrated Household Energy Storage System

1 / 5

LiFePO4 Solar Energy Storage System Inverter Integrated Household Energy Storage System

Customization:	Available
After-sales Service:	3 Years
Warranty:	12 Months

Send Inquiry

Product Description

📊 Basic Information

Model NO.

PL-5KWH-5KW-L1

Condition

New

Certification

Application

Home

Specification

Normal, 585mm*360mm*390mm

Battery Energy

5.12kwh

Rated Voltage

51.2V

Color

White Silver Blue Gray

MPPT

200~850VDC

HS Code

8507600090

Production Capacity

100,000 pieces/Year

🔍 Product Description

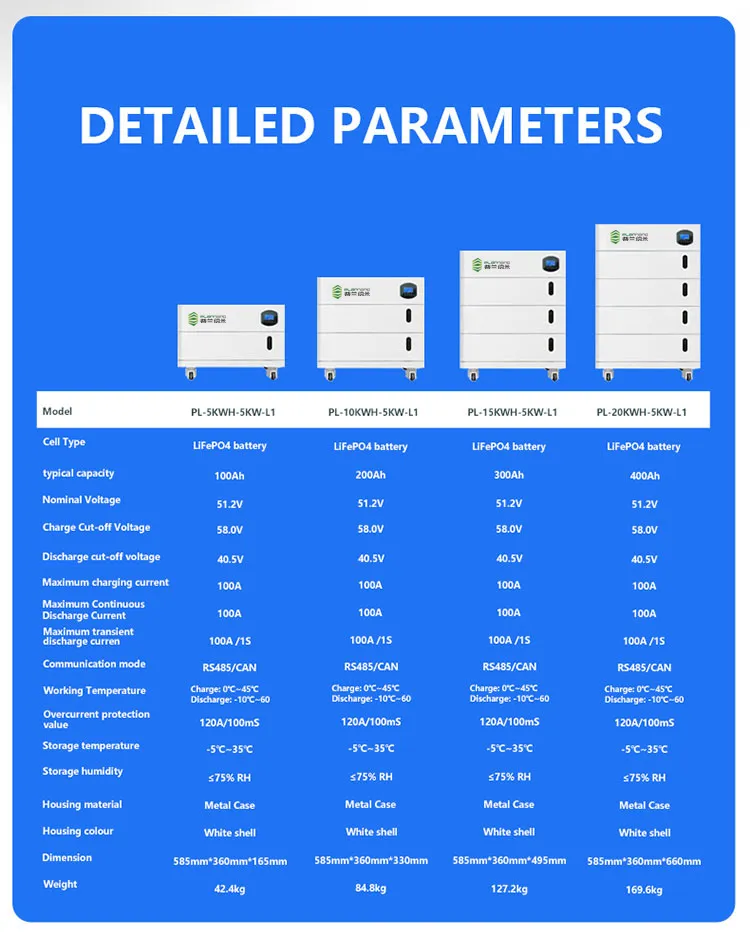

⚙️ Technical Specifications

Parameter	Details
Performance
Model	LPF4805
Battery Energy	5.12KWH
Rated Voltage	51.2V
Design Life	>15 years (25ºC)
Discharge Voltage	44.8V - 58.4V
Charging Voltage	44.8V - 58.4V
Max. Charging Current	100A
Max. Discharging Current	100A
Battery Chemistry Type	Lithium-iron phosphate (LiFePO4)

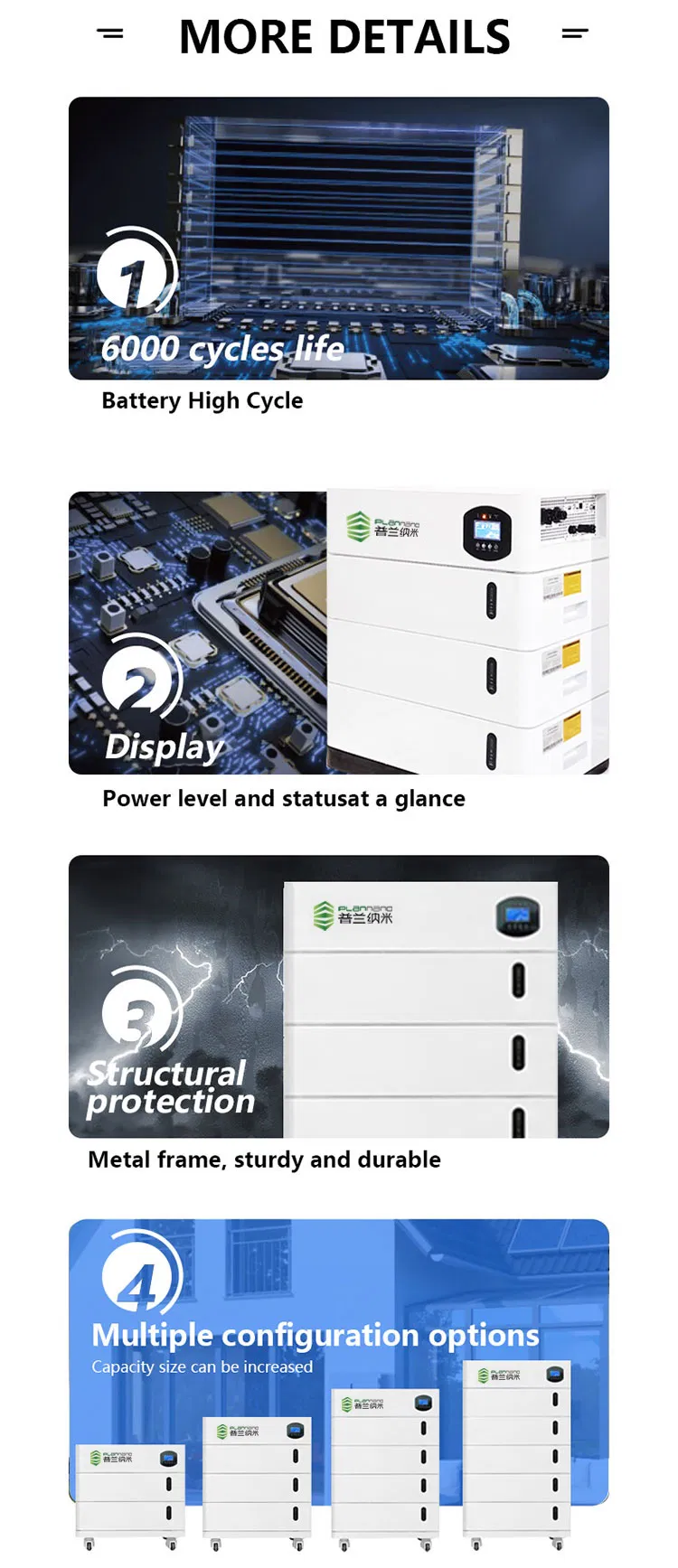

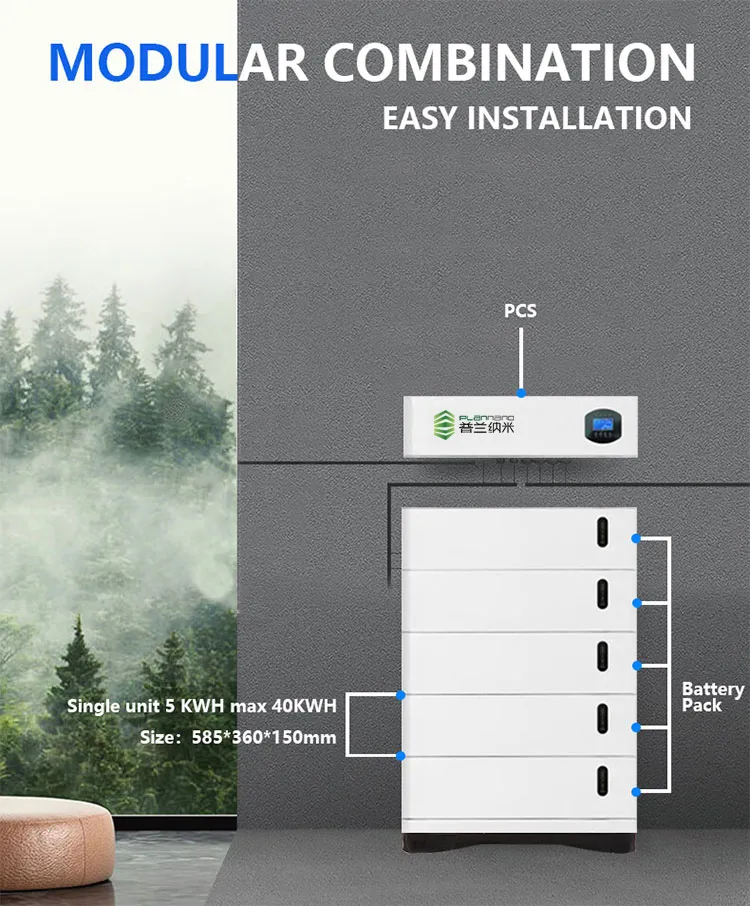

Scalability	Max. 6 strings in parallel
Interface
Display	LED indicator
Communication	CAN / RS485
General Specification
Dimension (HWD)	585mm * 360mm * 390mm
Weight	59KG
Installation	Wall Mount / Grounded
Charging Temperature	0 ~ 45°C
Discharging Temperature	-20 ~ 60°C
Max. Operating Altitude	2,000m
Protection Rating	IP5X
Relative Humidity	5% - 80%
Cooling	Passive cooling
Certificates	CE, UN38.3

❓ Frequently Asked Questions

What is the battery capacity of the PL-5KWH-5KW-L1 system?

The system features a total battery energy of 5.12kWh with a rated voltage of 51.2V, utilizing high-quality Lithium-iron phosphate (LiFePO4) chemistry.

Can I expand the storage capacity later?

Yes, the system is designed with scalability in mind. It supports connecting up to 6 strings in parallel to increase your total energy storage capacity.

What is the expected lifespan of this energy storage system?

The system has a design life of over 15 years when operated at standard conditions (25ºC), offering long-term reliability for household energy needs.

How can I install the unit?

The unit offers flexible installation options, supporting both wall-mounted and grounded setups to fit your specific space requirements.

Does the system work in extreme temperatures?

The system supports a wide operating range, with a charging temperature of 0 to 45°C and a discharging temperature of -20 to 60°C.

Which communication protocols are supported?

The system integrates standard industrial communication interfaces, including CAN and RS485, ensuring compatibility with various monitoring systems and inverters.
