All-in-One Energy Storage Battery System integrates multiple components into a single compact unit for complete energy management solutions. This system provides reliable backup power and energy storage capabilities with simplified installation and maintenance requirements.
The intelligent design features advanced battery management, high efficiency performance, and compatibility with various power sources. With extended service life and smart monitoring capabilities, these integrated systems deliver energy independence and cost savings for diverse applications.

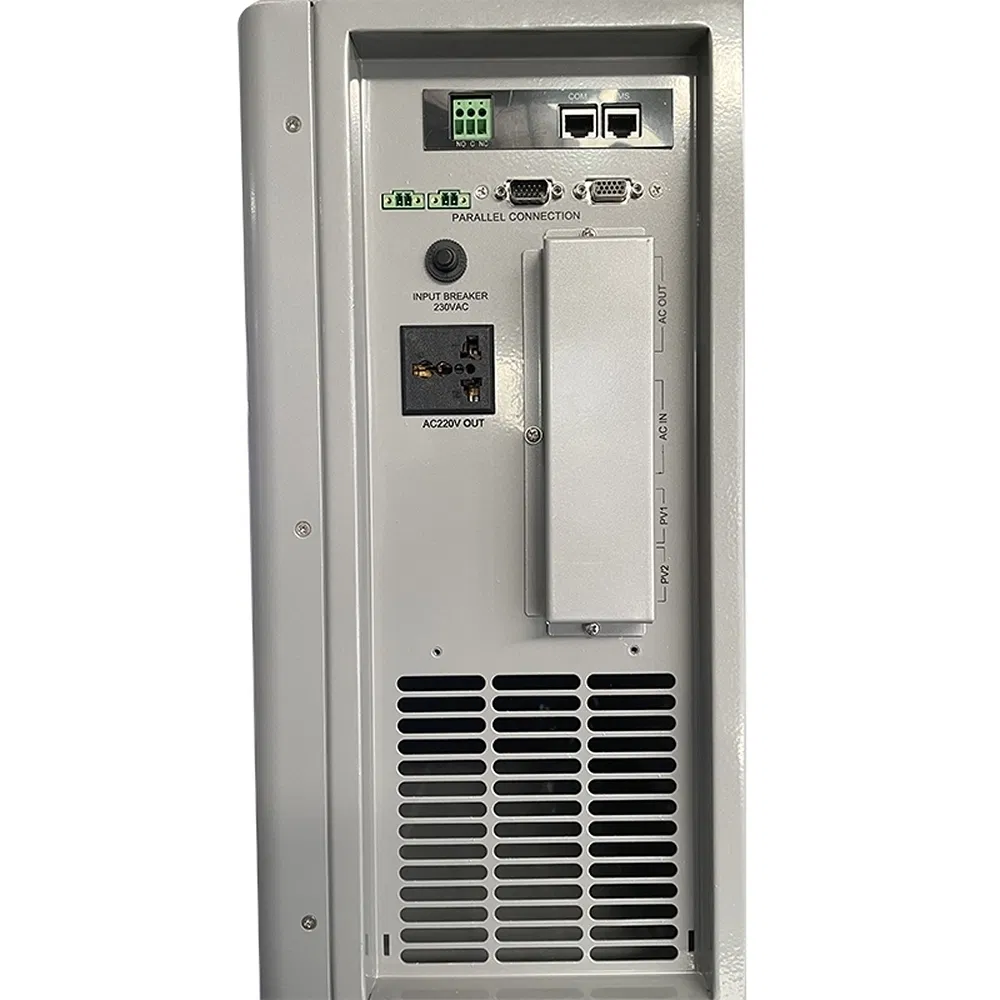

Combines inverter, battery, and control functions in a single unit, eliminating complex wiring.
Designed for residential backup power and energy independence for household consumption.
Broad input voltage range ensures seamless integration with various solar panel configurations.
| TECHNICAL SPECIFICATIONS | |
|---|---|
| INVERTER PARAMETERS | |
| Rated Power | 10kW |
| AC Rated Voltage | 230VAC |
| Efficiency | 93.50% |
| Transfer Time / Waveform | 10ms / Pure Sine Wave |
| Max. PV Array Power | 11kW |
| MPPT Voltage Range | 90-450VDC |
| BATTERY PARAMETERS | |
| Rated Capacity | 15.36 kWh |
| Nominal Voltage | 51.2V |
| Max. Charging/Discharge Current | 200A @ 25℃ |
| Communication Interface | RS485 / RS232 / CAN |
| Working Temp Range | Charge: 0~60℃ / Discharge: -20~60℃ |
| PACKAGING & WEIGHT | |
| Package Size | 750 × 310 × 865 mm |
| Gross Weight | 132kg |

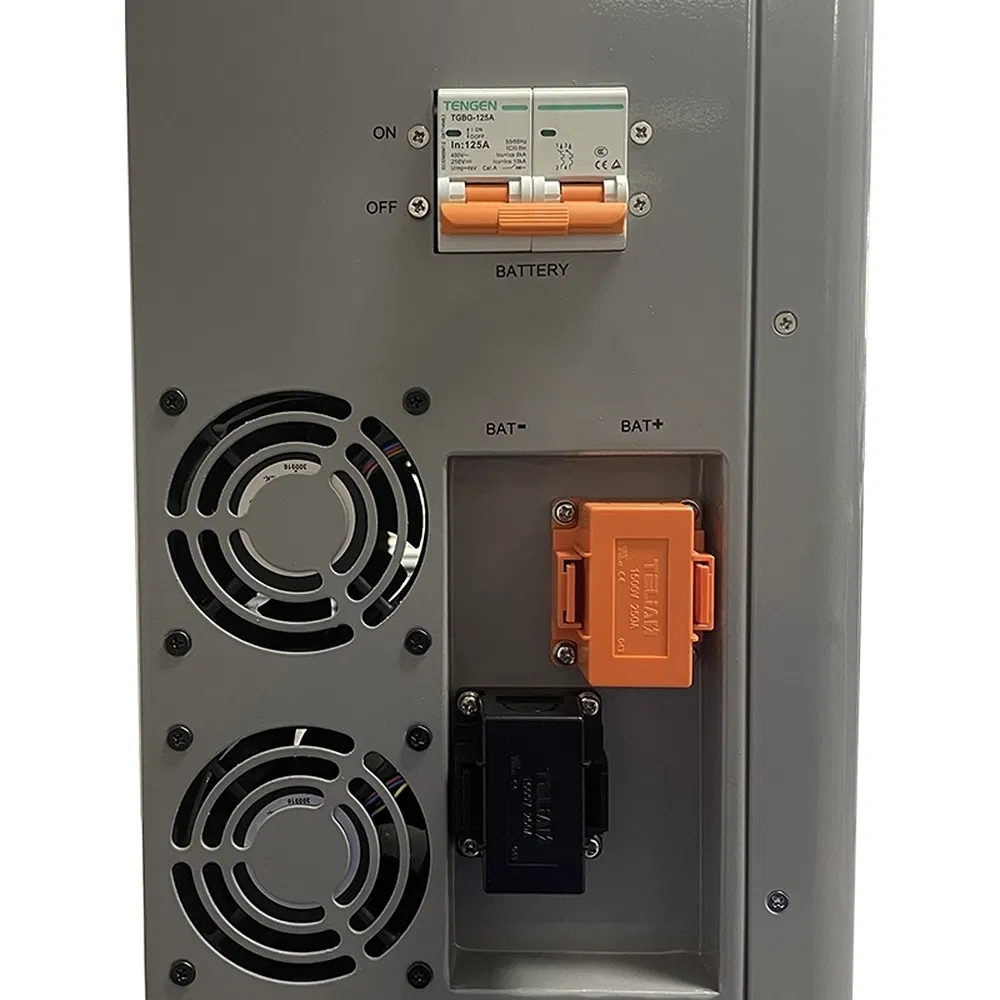

Advanced BMS provides protection, monitoring, and optimization for peak performance.
Superior conversion efficiency ensure minimal energy loss for critical home applications.
