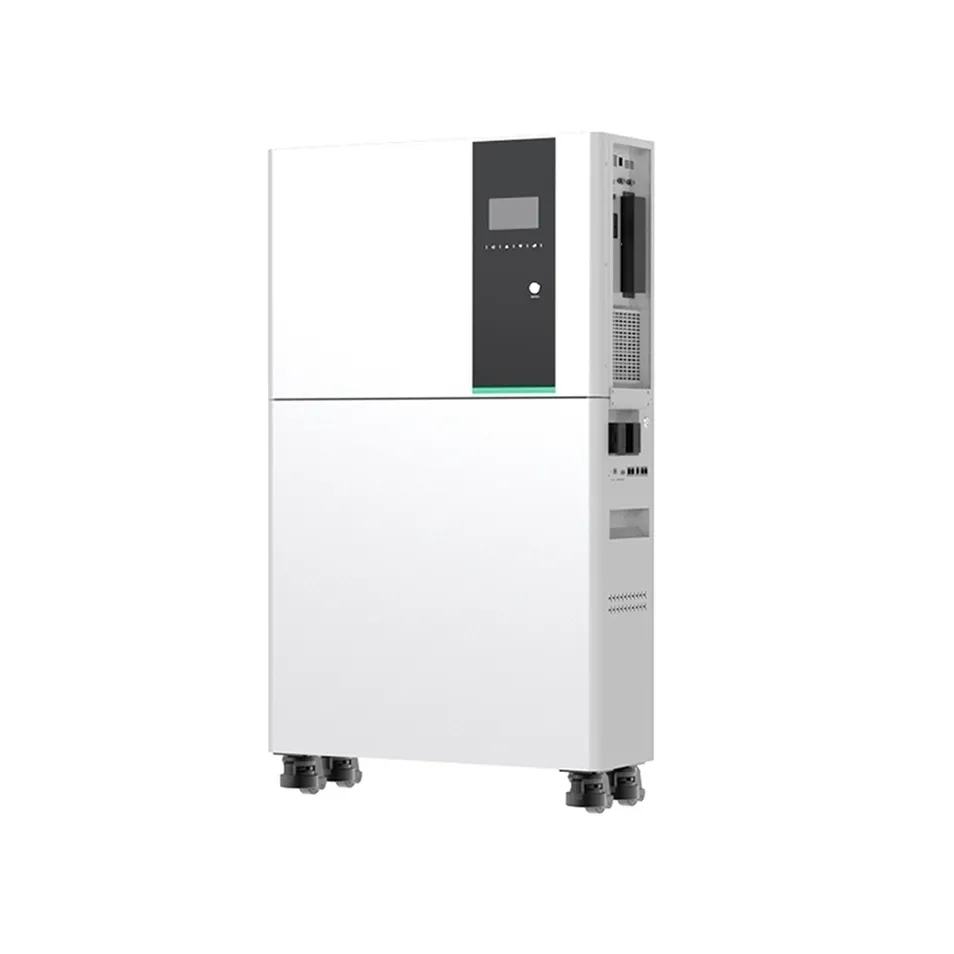

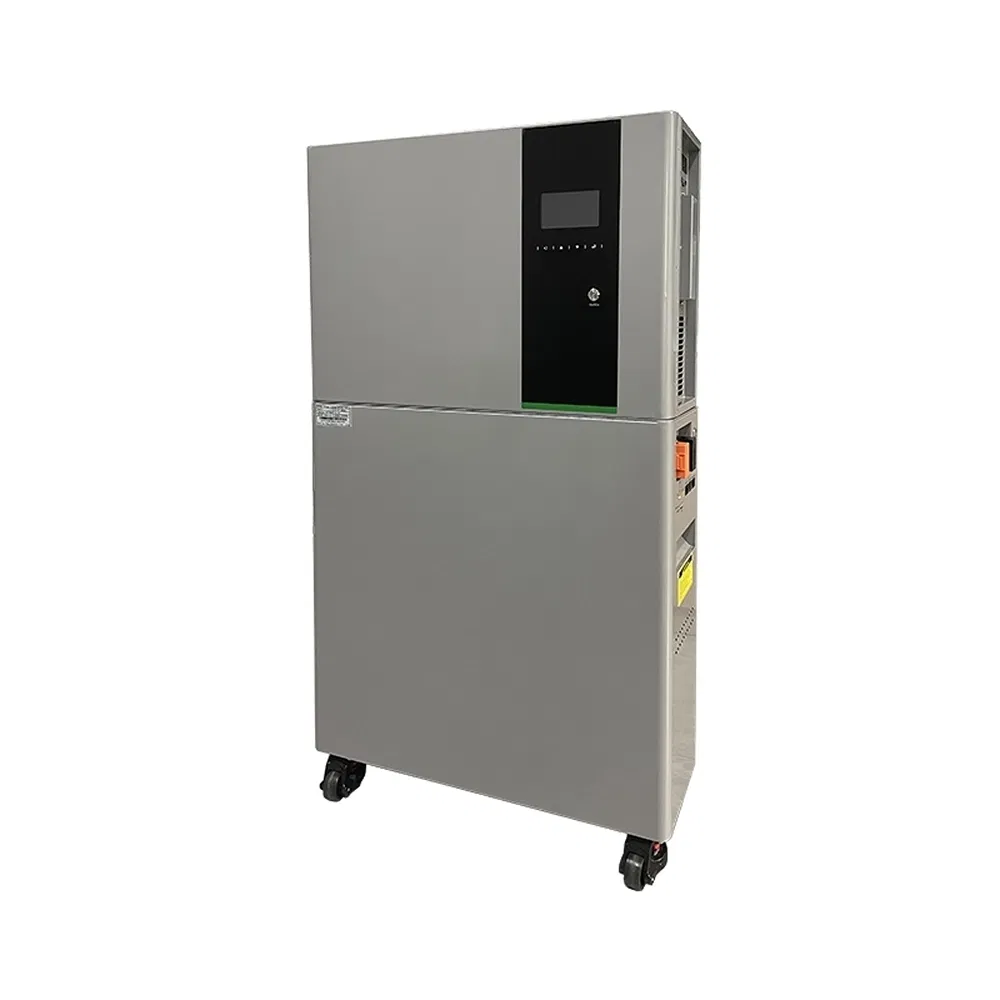

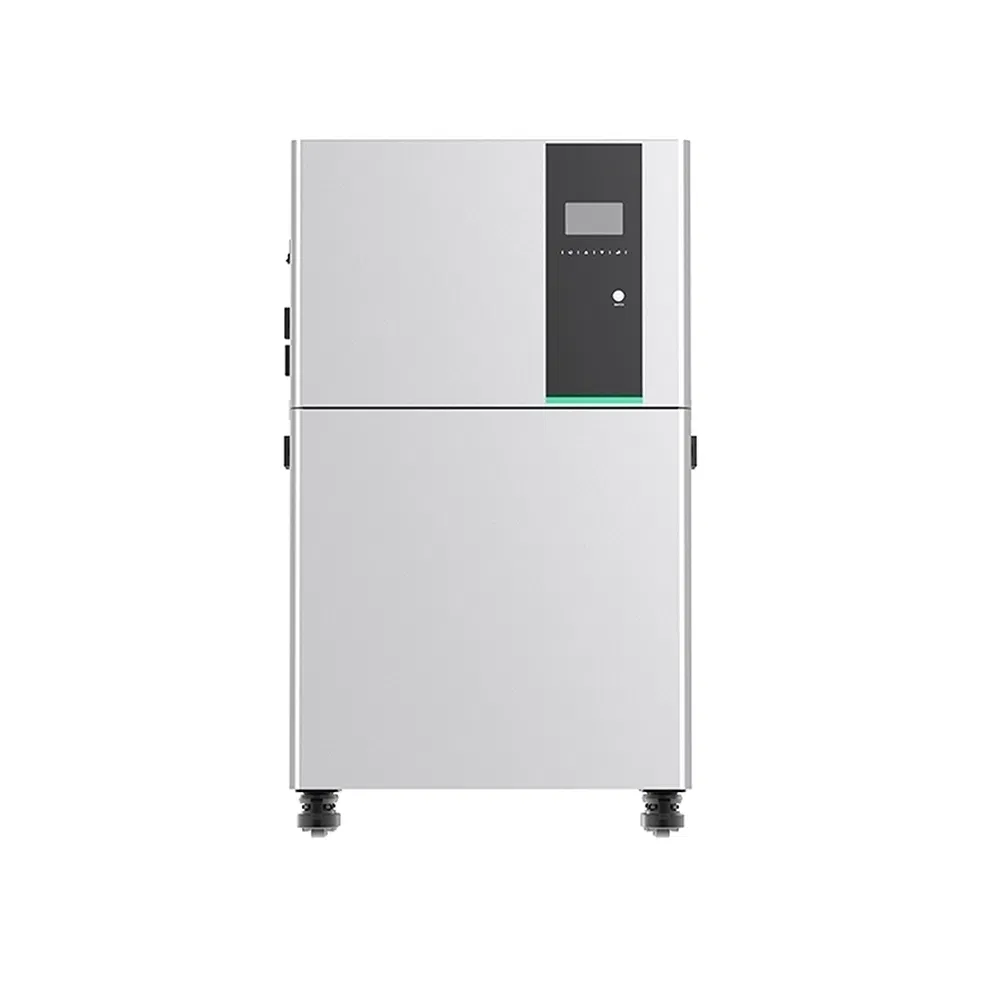

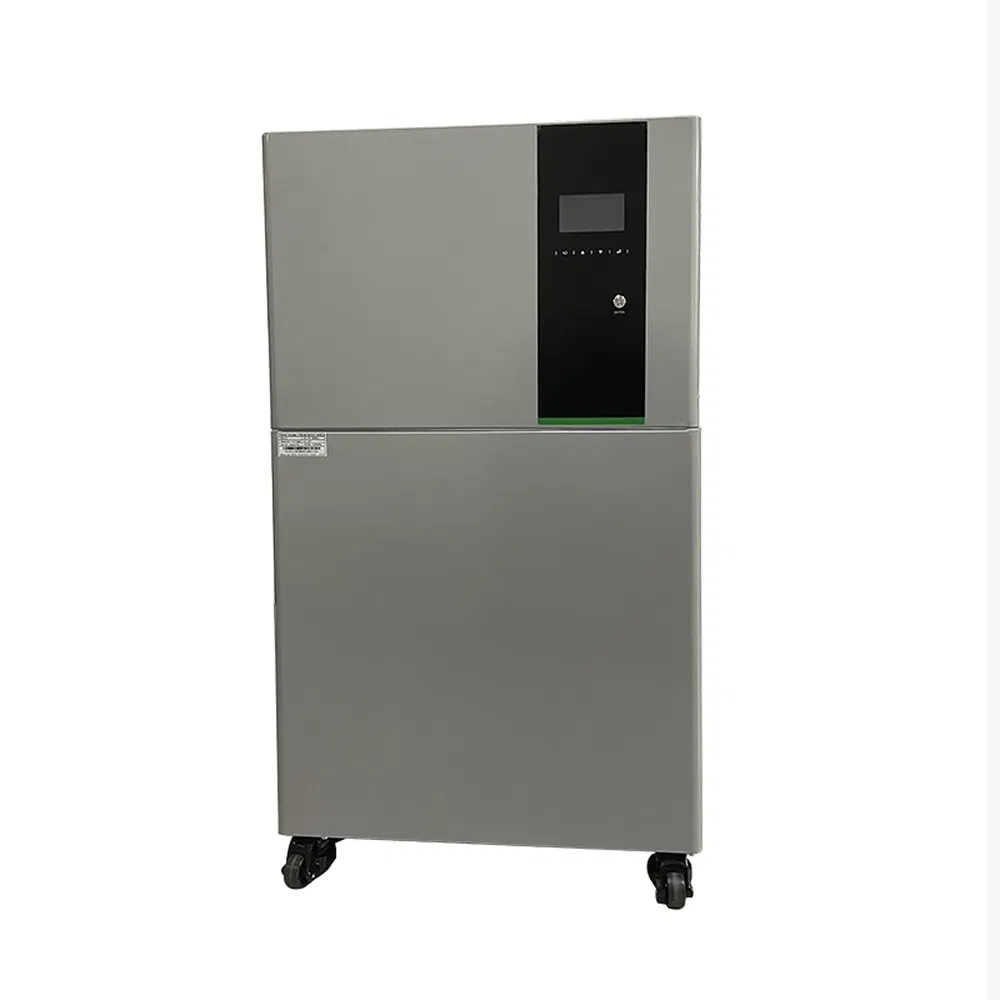

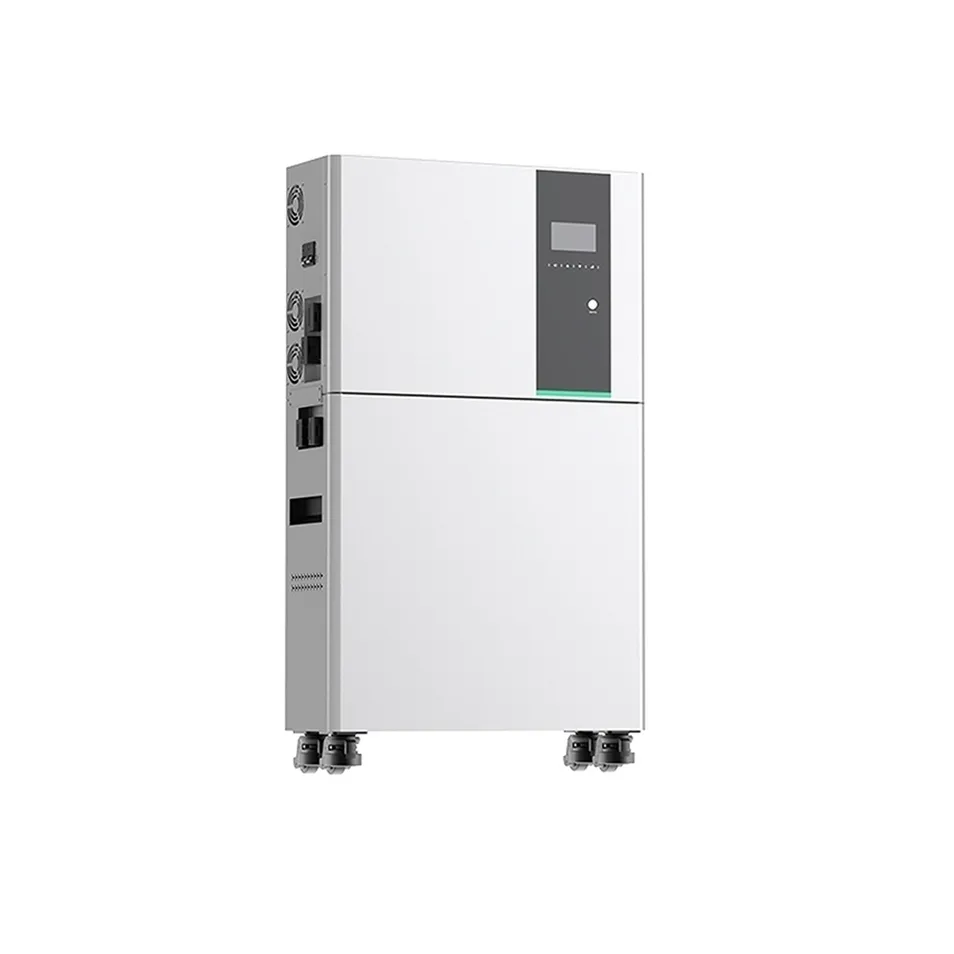

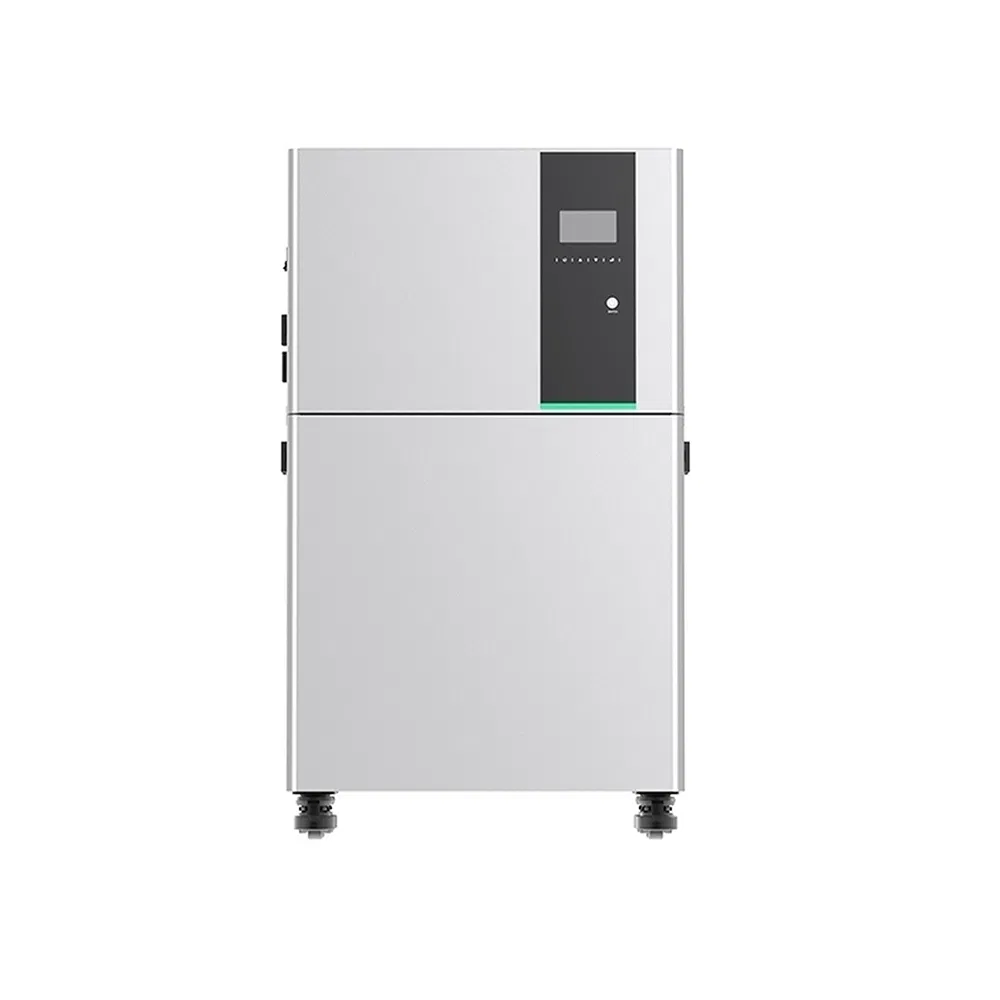

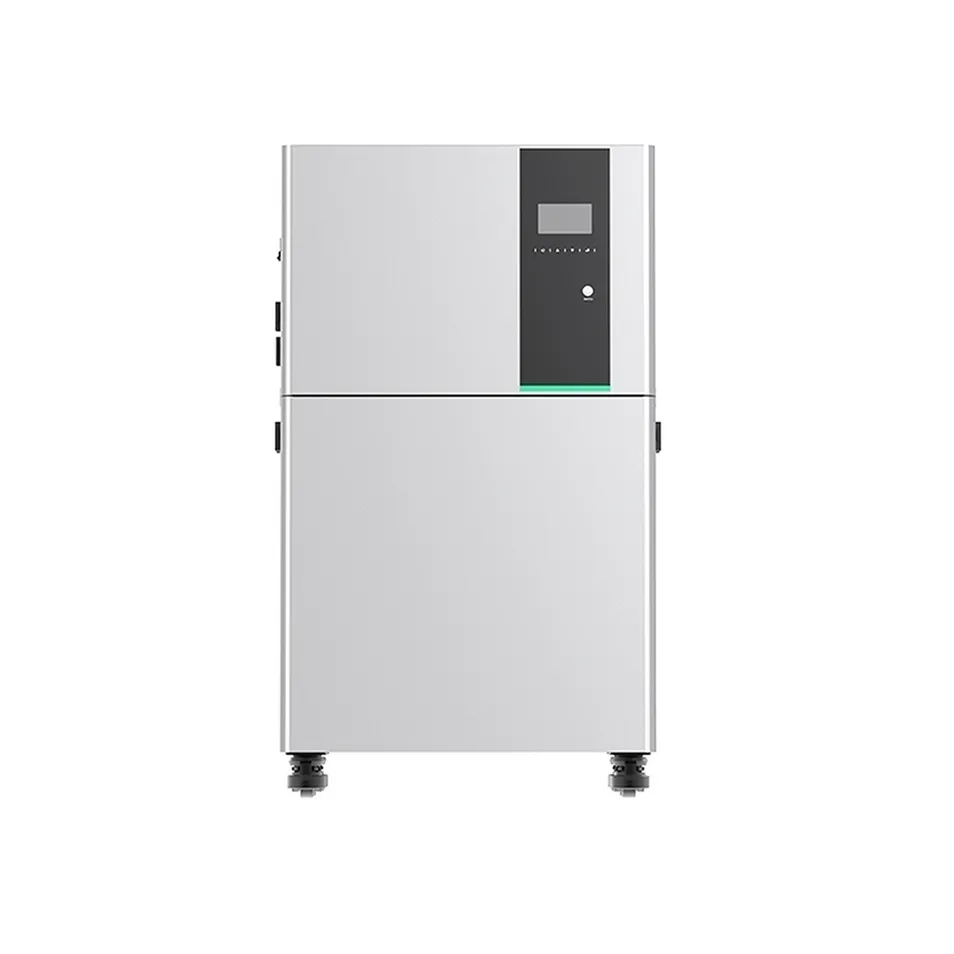

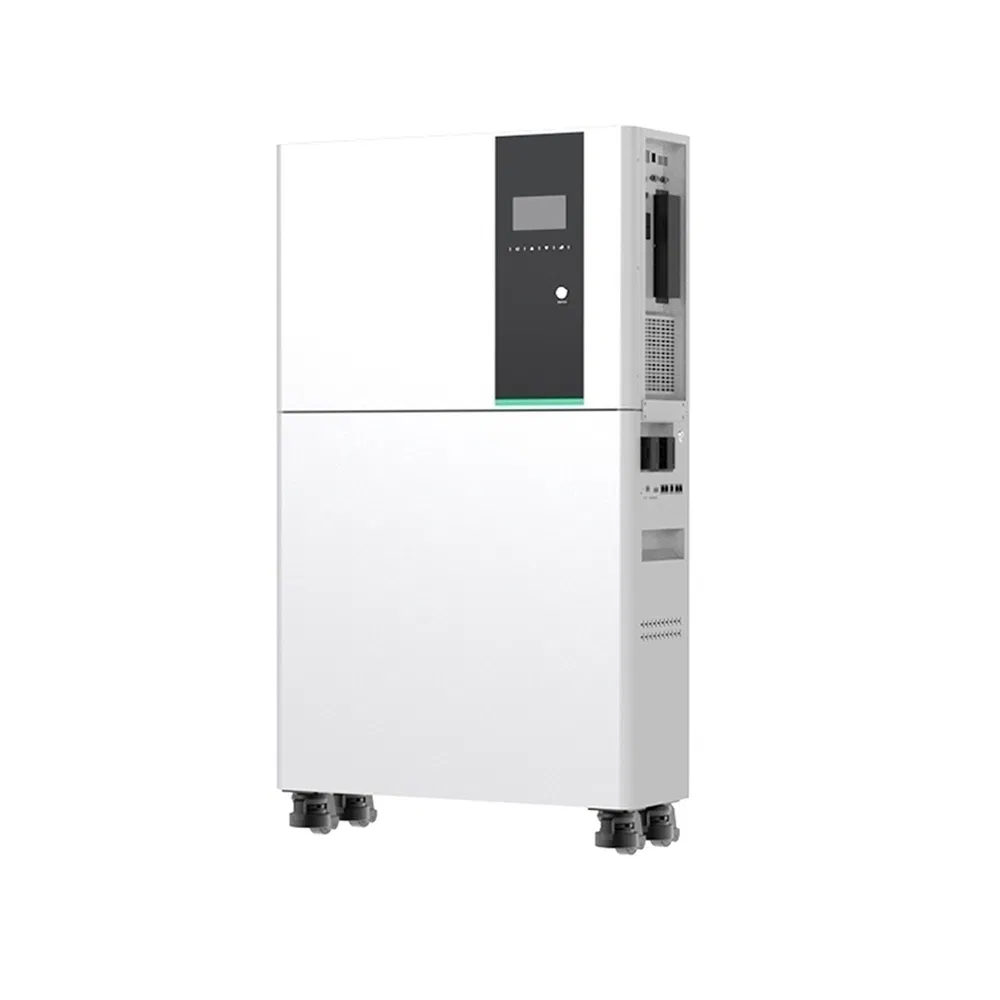

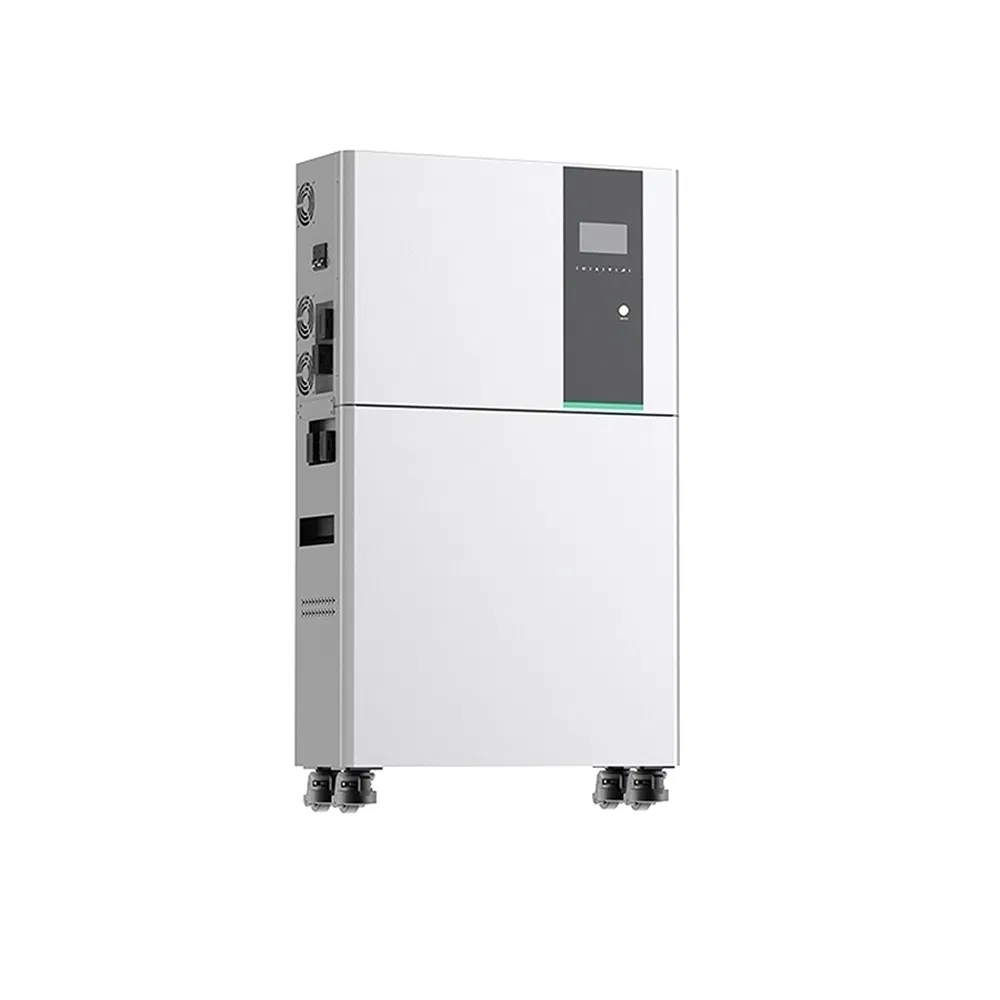

ENERGY STORAGE BATTERY SYSTEM
The All-in-One Energy Storage Battery System integrates multiple components into a single compact unit for complete energy management solutions. This system provides reliable backup power and energy storage capabilities with simplified installation and maintenance requirements.
The intelligent design features advanced battery management, high efficiency performance, and compatibility with various power sources. With extended service life and smart monitoring capabilities, these integrated systems deliver energy independence and cost savings for diverse applications.
Combines inverter, battery, and control functions in a single unit, reducing wiring and installation time.
Designed for residential applications, providing backup power and household energy independence.
Seamless integration with various solar panel configurations and existing electrical systems.
| System Specification | |
|---|---|
| Product Name | Energy Storage Battery System |
| Model | OLU-10000A-15 |
| Inverter Parameters | |
| Rated Power | 10kW |
| AC Voltage Range | 90-280VAC (230VAC Rated) |
| Transfer Time | 10ms |
| Waveform | Pure Sine Wave |
| Max. PV Array Power | 11kW |
| MPPT Operating Range | 90-450VDC |
| Battery Parameters | |
| Rated Capacity | 15.36 kWh |
| Nominal Voltage | 51.2V |
| Depth of Discharge (DOD) | 100% |

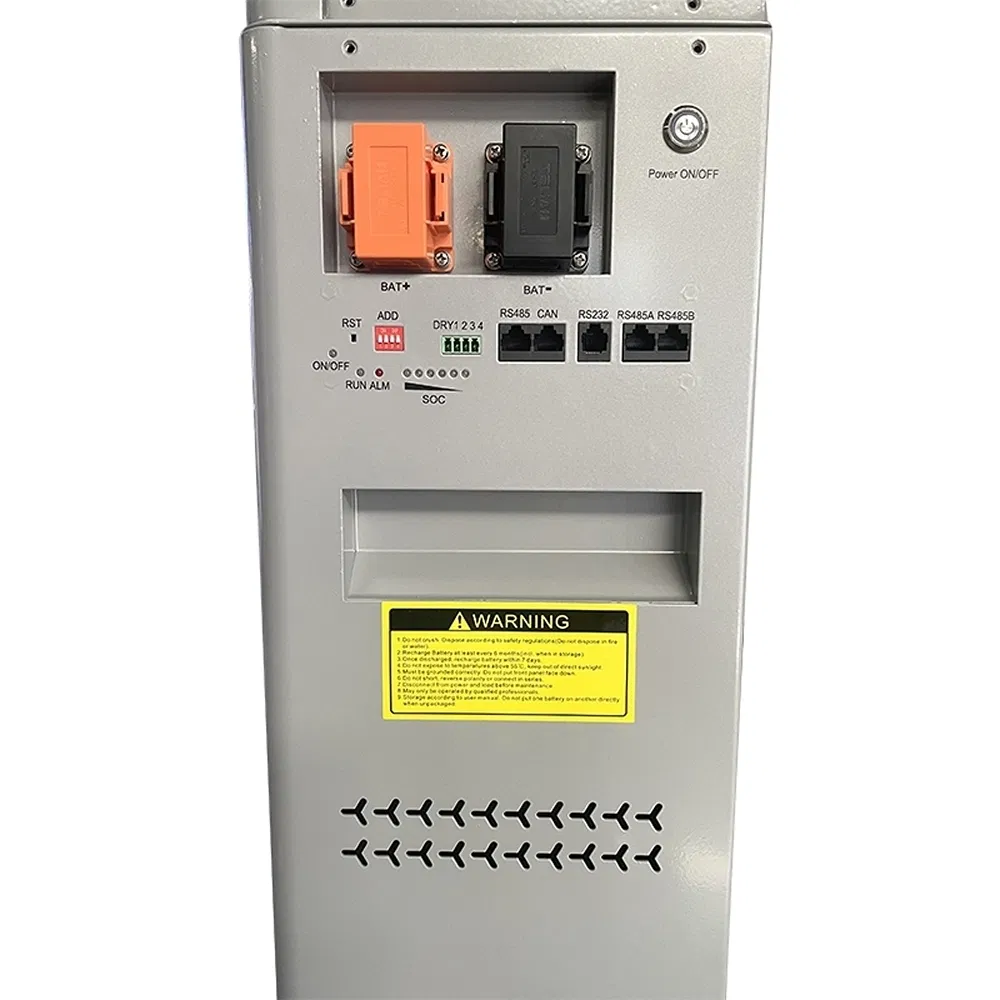

| Communication Interface | RS485/RS232/CAN |
| Working Temp. | Charge: 0~60℃ / Discharge: -20~60℃ |
| Packaging & Logistics | |
| Battery Dimensions | 750×310×865mm |
| Battery Gross Weight | 132kg |
