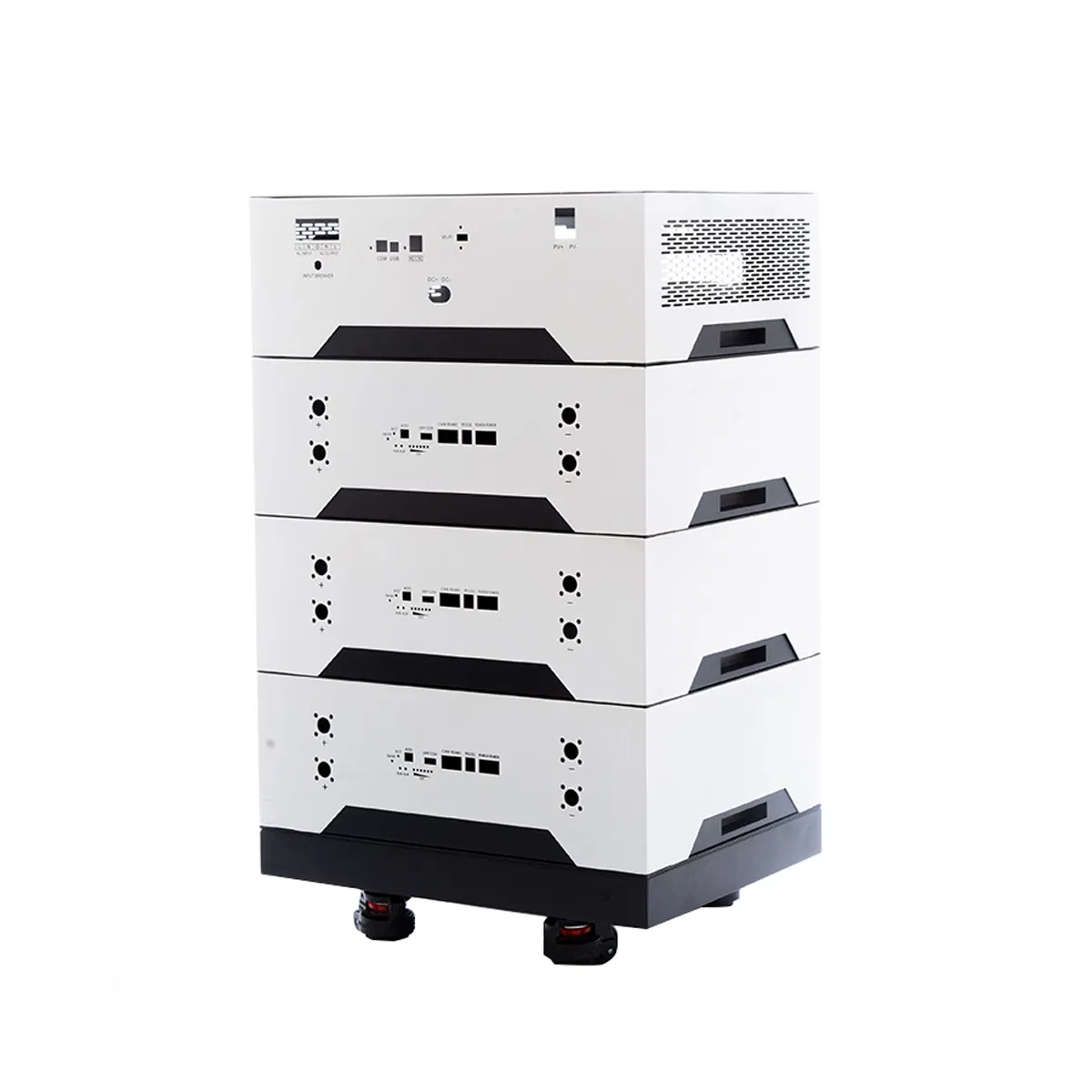

20.48kwh 51.2V 200ah Stackable Residential Energy Storage Power System LFP Battery Module
20.48kwh 51.2V 200ah Stackable Residential Energy Storage Power System LFP Battery Module
20.48kwh 51.2V 200ah Stackable Residential Energy Storage Power System LFP Battery Module
20.48kwh 51.2V 200ah Stackable Residential Energy Storage Power System LFP Battery Module
20.48kwh 51.2V 200ah Stackable Residential Energy Storage Power System LFP Battery Module
1 / 5
20.48kwh 51.2V 200ah Stackable Residential Energy Storage Power System LFP Battery Module
20.48kwh 51.2V 200ah Stackable Residential Energy Storage Power System LFP Battery Module
20.48kwh 51.2V 200ah Stackable Residential Energy Storage Power System LFP Battery Module
20.48kwh 51.2V 200ah Stackable Residential Energy Storage Power System LFP Battery Module
20.48kwh 51.2V 200ah Stackable Residential Energy Storage Power System LFP Battery Module

20.48kwh 51.2V 200ah Stackable Residential Energy Storage Power System LFP Battery Module

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
HS-10
Cycle Life
3000 Times
Nominal Capacity
200ah
Rated Voltage
51.2V (48V)
Battery Type
Prismatic LiFePO4 3.2V 200ah
Application
Off-Grid Solar System
Communication
CAN / RS485
Production Capacity
30,000 PCS Per Year

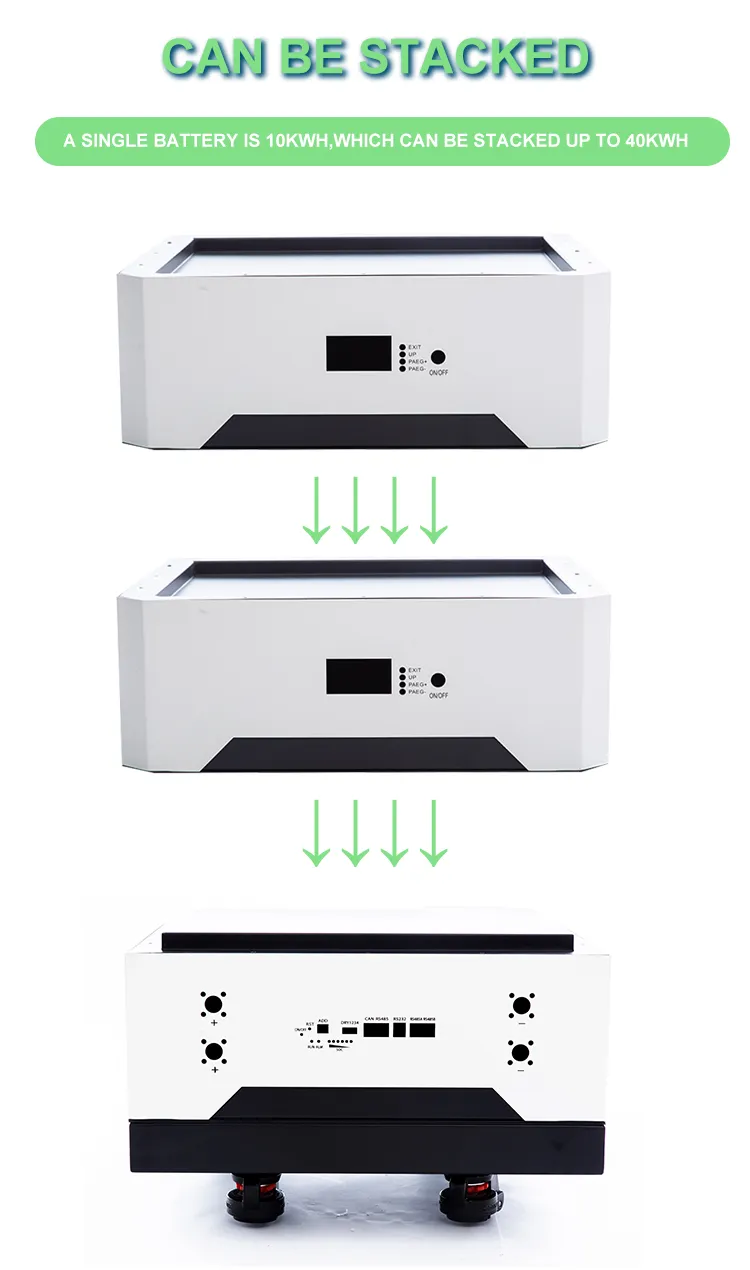

Stackable Energy Storage System

Product Description

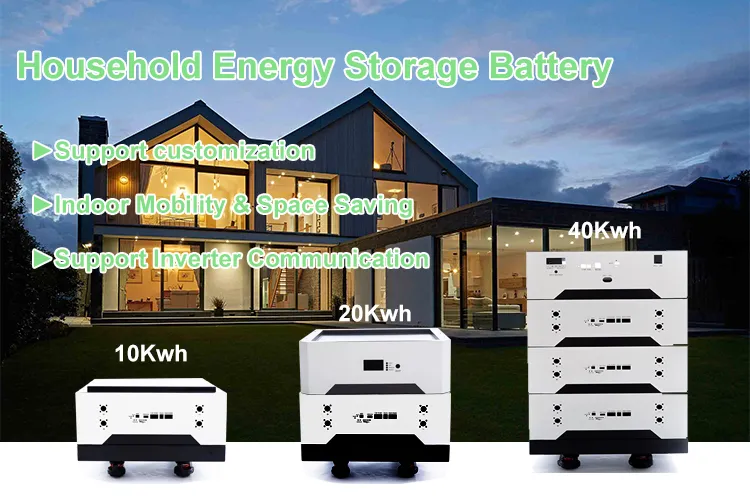

Household Off-Grid Stackable LiFePO4 Solar Energy System

Providing high-performance battery storage solutions for residential, RV, marine, and off-grid living applications. This system offers a versatile energy range from 10kwh to 40kwh based on stackable modules.

ModelHS-10
Nominal Voltage51.2V / 48V
Nominal Capacity200Ah
Energy Options10kwh / 20kwh / 30kwh / 40kwh
Charge/Discharge Current200A
Charging Cut-off Voltage58.4V ± 0.2V
Discharging Cut-off Voltage36.8V ± 0.2V
Cell TypeLiFePO4 Battery
DisplayLCD
Communication ModeRS485/CAN
Case MaterialMetal Box
Charge Temperature0 ~ 45°C
Discharge Temperature-5 ~ 55°C
Cycle Life3000 times

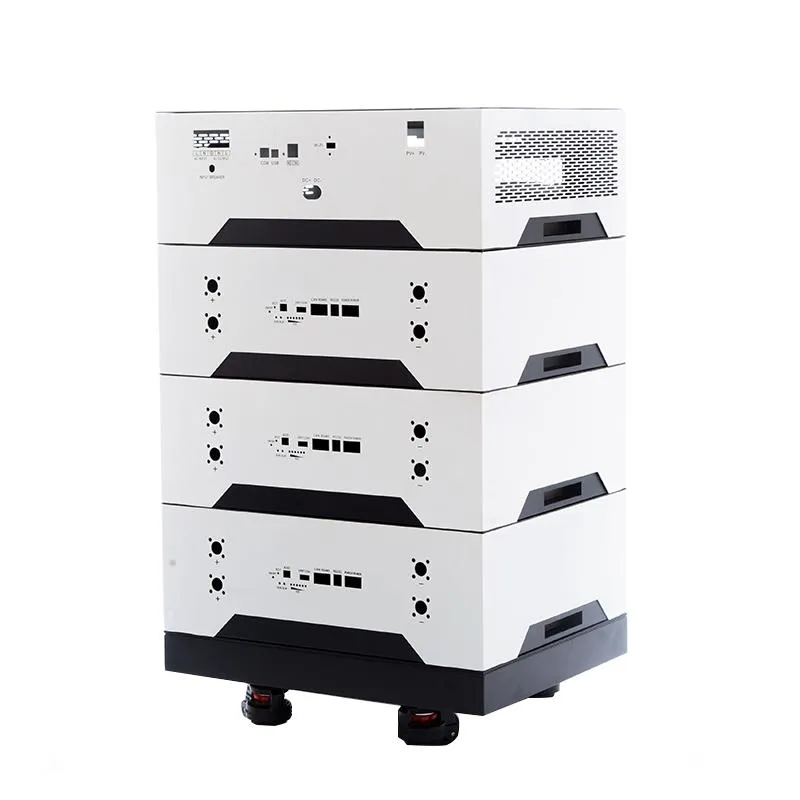

Module Detail

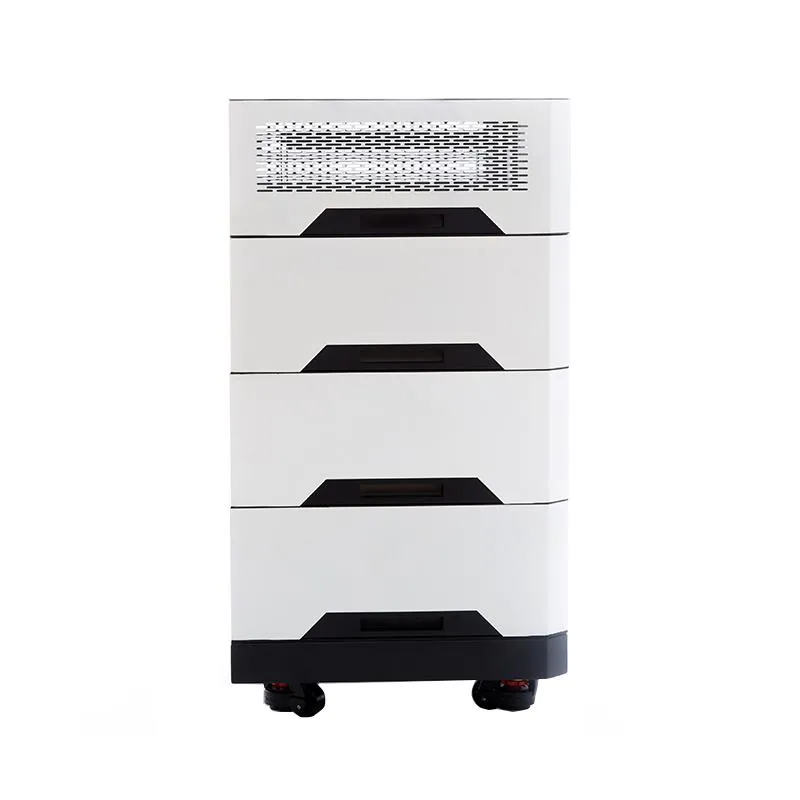

System View

Offering sustainable, safe, and high-performance battery packs for diverse applications. We provide expertise for upgrading existing batteries or building completely new power systems. All products comply with CE, ROHS, UN38.3, MSDS, and IEC certifications.

Internal Structure

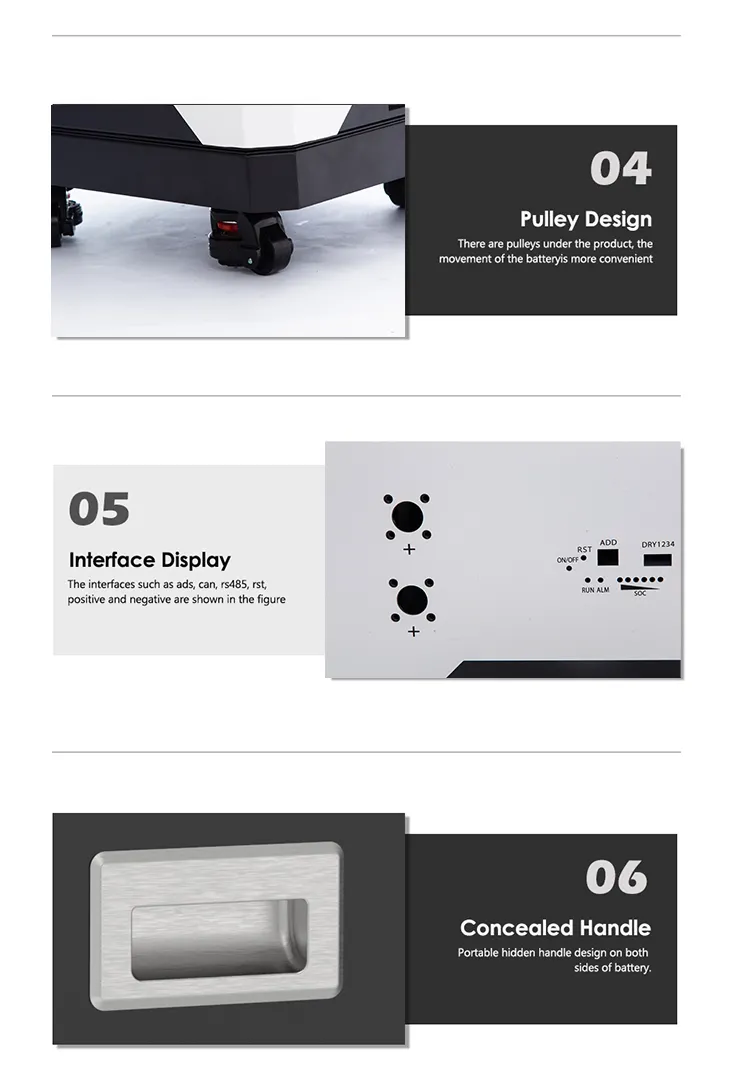

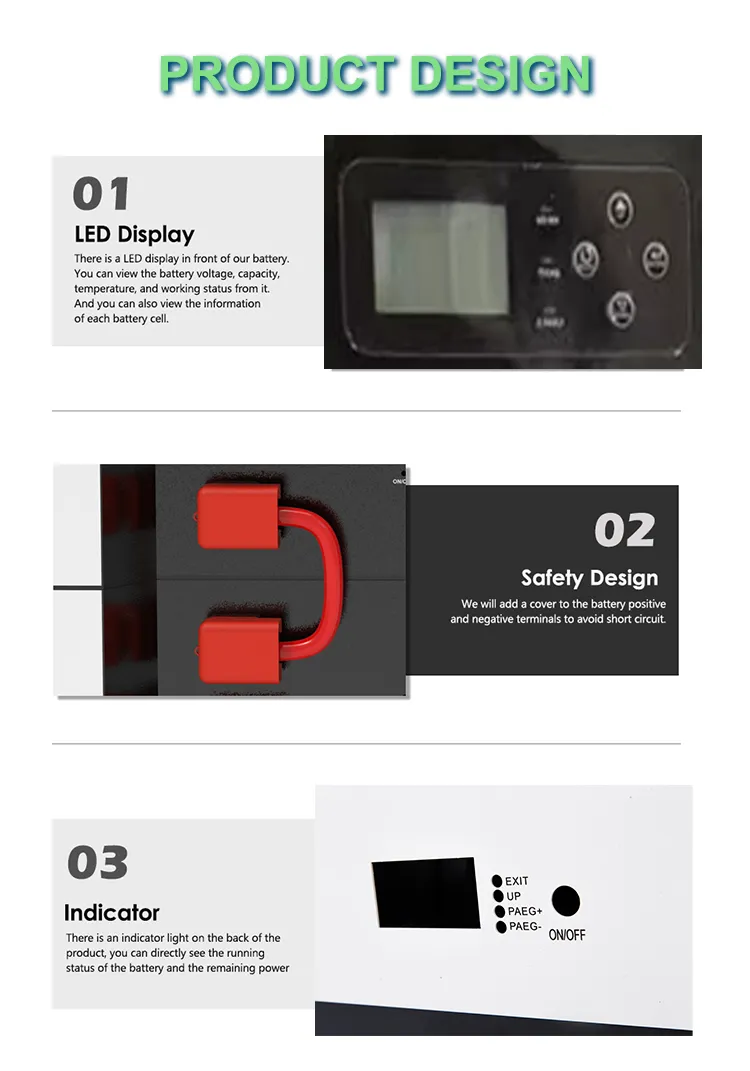

Interface Setup
Installation
Dimensions

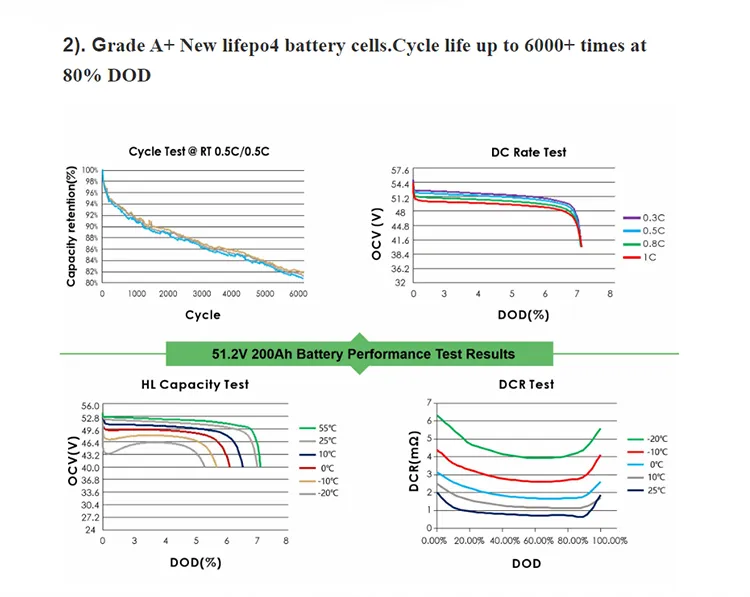

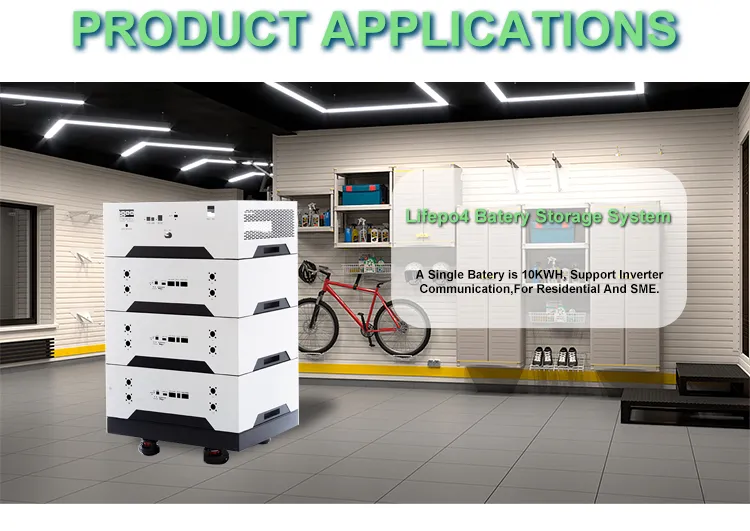

Testing
Quality Control
Packaging
Warehouse
Certificates
Product Summary

Frequently Asked Questions

1. What is the expected cycle life of the HS-10 battery?
The system features a high-quality LiFePO4 chemistry providing over 3,000 cycles at standard operating conditions.
2. Can I expand the energy capacity later?
Yes, the stackable design allows you to increase capacity from 10kwh up to 40kwh by adding more modules.
3. What communication protocols are supported?
The system supports both RS485 and CAN communication modes for seamless integration with various inverters.
4. Is this battery suitable for outdoor installation?
It is designed for indoor or protected environments with a charge temperature range of 0-45°C and discharge range of -5 to 55°C.
5. What certifications does the product hold?
Our battery systems have obtained CE, ROHS, UN38.3, MSDS, and IEC certifications to ensure global safety and compliance.
6. Do you support OEM or custom branding?
Yes, we welcome OEM and ODM projects. We can develop customized battery solutions based on your specific requirements.
