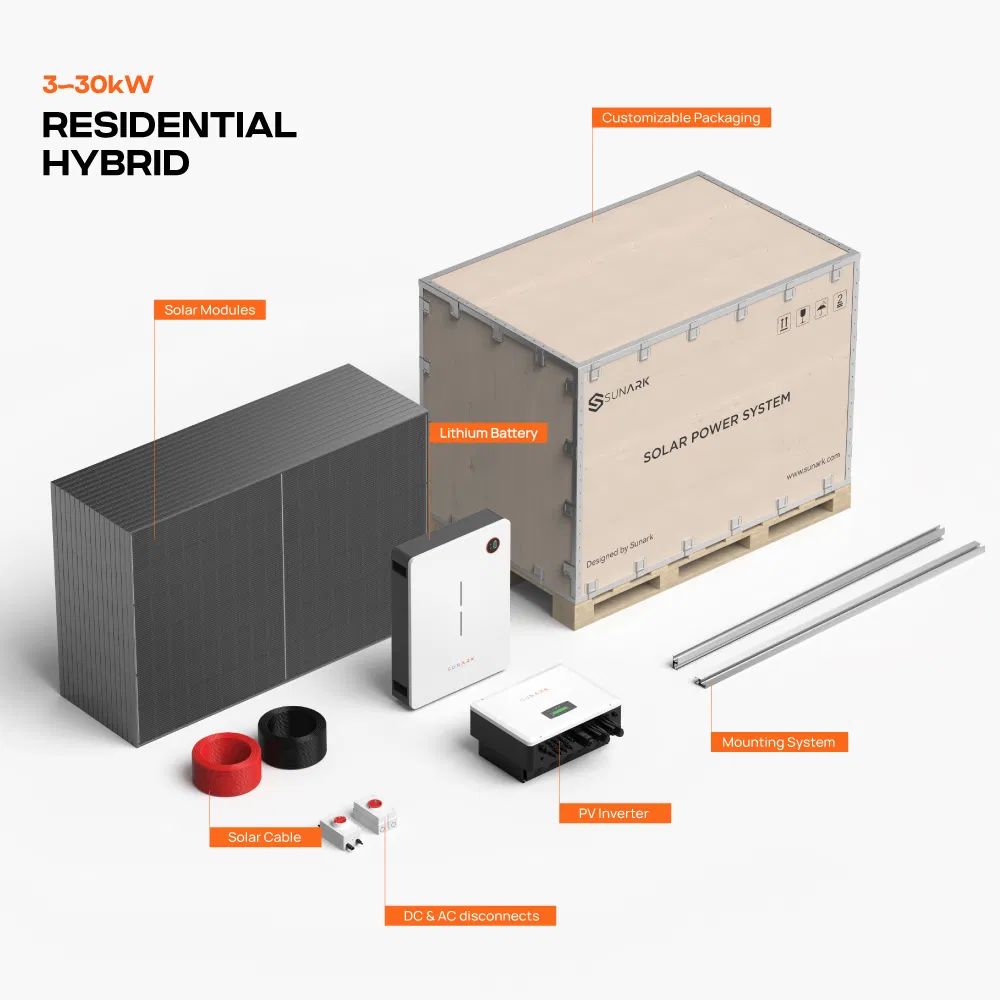

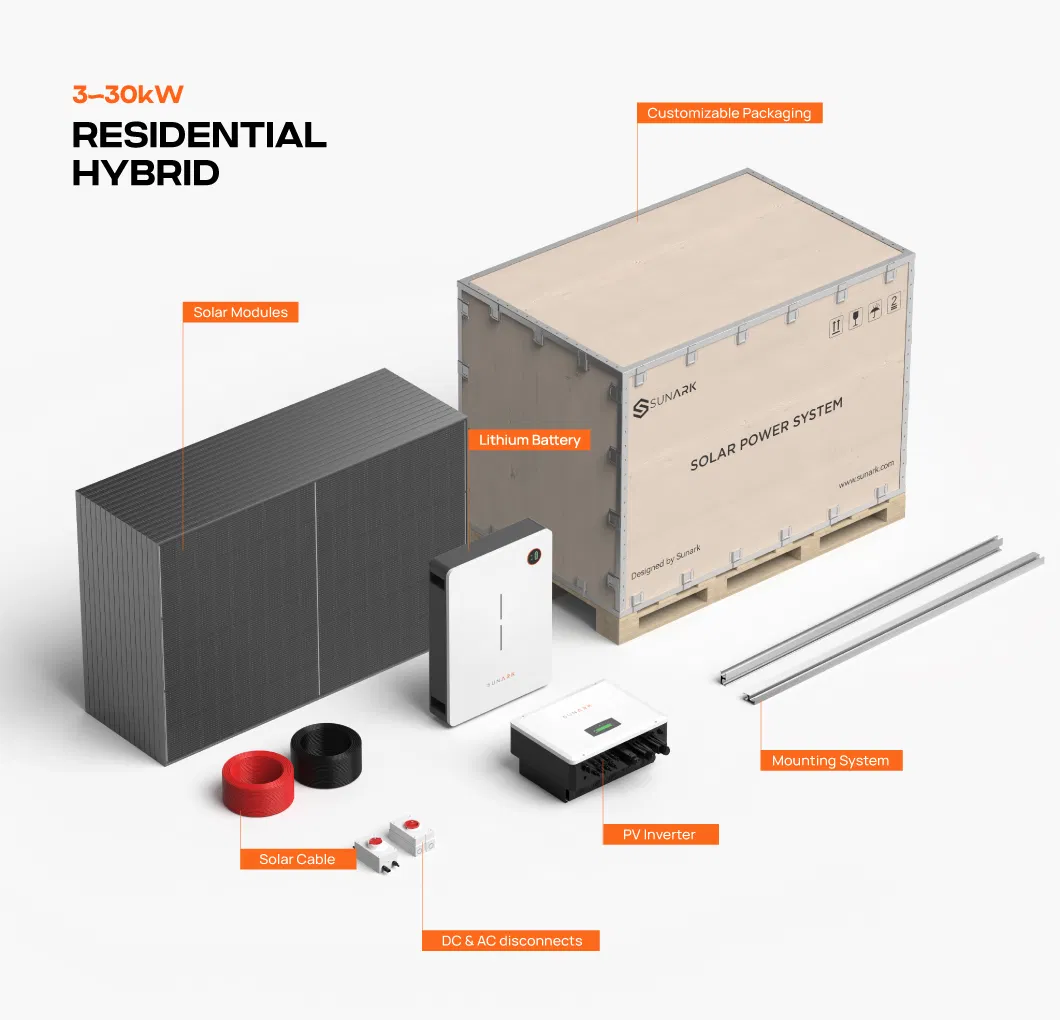

| Model | SE-3KW-HY | SE-5KW-HY | SE-10KW3-HY |
|---|---|---|---|
| Half Cut Mono 550W Solar Panels | 6 pcs | 10 pcs | 20 pcs |
| Hybrid Solar Inverter | 1 pc | 1 pc | 1 pc |
| Lithium Batteries 48V 200Ah | 1 pc | 1 pc | 1 pc |
| PV Cable 4mm2 | 100m | 100m | 200m |
| MC4 Connector | 20 pcs | 20 pcs | 20 pcs |
| Roof Mounting System | 1 set | 1 set | 1 set |
| Model | SE-20KW3-HY | SE-30KW3-HY | SE-50KW3-HY |
|---|---|---|---|
| Half Cut Mono 550W Solar Panels | 40 pcs | 60 pcs | 100 pcs |
| Hybrid Solar Inverter | 1 pc | 1 pc | 1 pc |
| Lithium Batteries 48V 200Ah | 2 pcs | 3 pcs | 5 pcs |
| PV Cable 4mm2 | 300m | 500m | 1000m |
| MC4 Connector | 30 pcs | 50 pcs | 100 pcs |
| Roof Mounting System | 1 set | 1 set | 1 set |

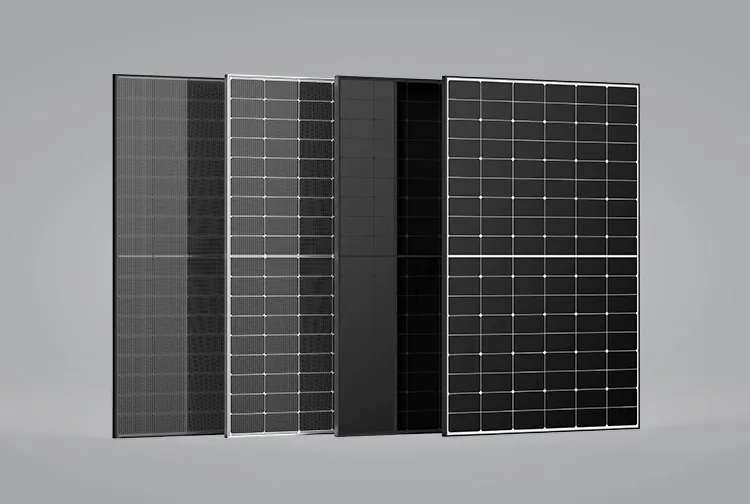

Peak Power Watts: 550W
Maximum Power Voltage: 42.06V
Maximum Power Current: 12.84A
Open Circuit Voltage: 49.75V
Short Circuit Current: 13.63A
Dimensions: 2279x1134x35mm | Weight: 26.9 kg

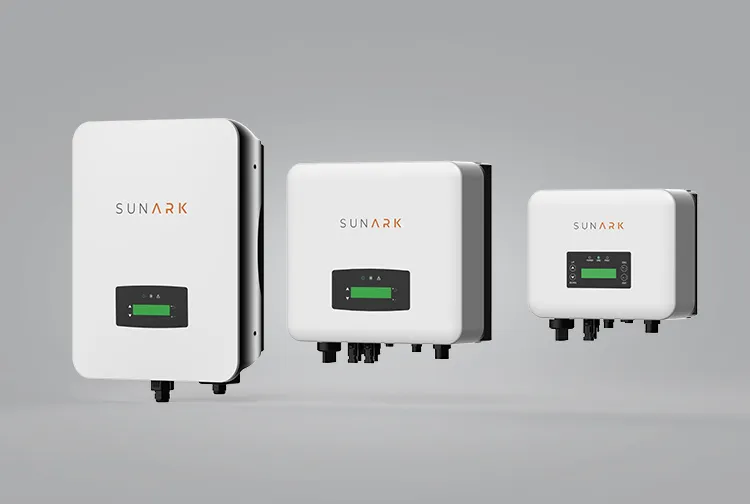

Support both single phase and three phase, transformer isolation design.
Different modes make system work more efficiency.
Max. charging/discharging current of 240A.
Max. 6pcs parallel.
DC couple and AC couple to retrofit existing solar system.

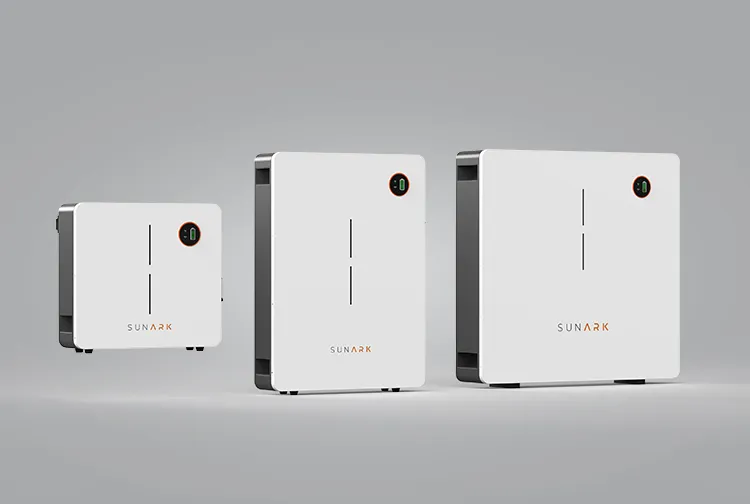

12V, 24V 48V, 51.2V available.
15-20 years design life. Up to 6000+ cycle life.
Wall mount or ground stack brick, simply connecting to inverter.
Battery module is scalable for any larger storage system.
Built-in high quality BMS to protect battery cells.
Lithium iron phosphate cell for home safety.

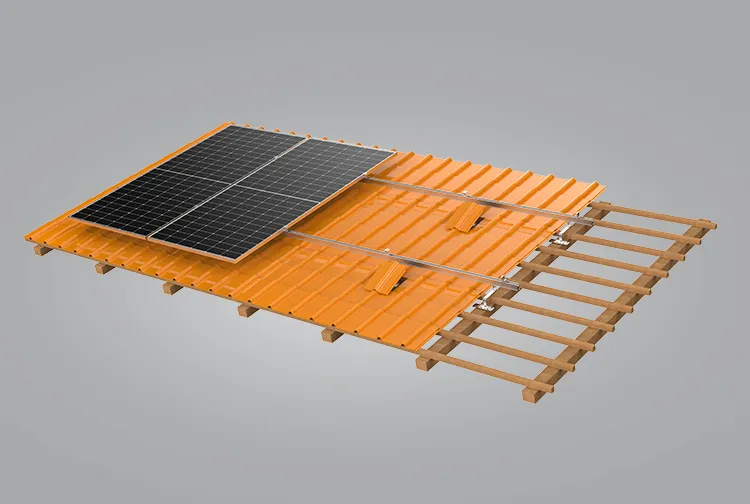

Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35, 40, 45, 50mm.
L Foot Asphalt Shingle Mount & Hanger Bolt Optional.
Cable Clip, Tie, Ground Clip & Lugs Optional.

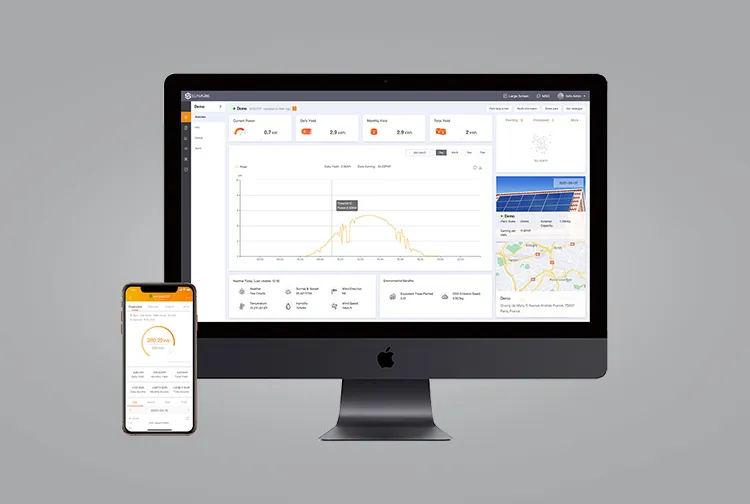

Open station supports one-click installation and registration.
Problem support one-click dispatch and navigation.
Safe operation with traceable logs.
Support full lifecycle data storage to ensure security and reliability.
