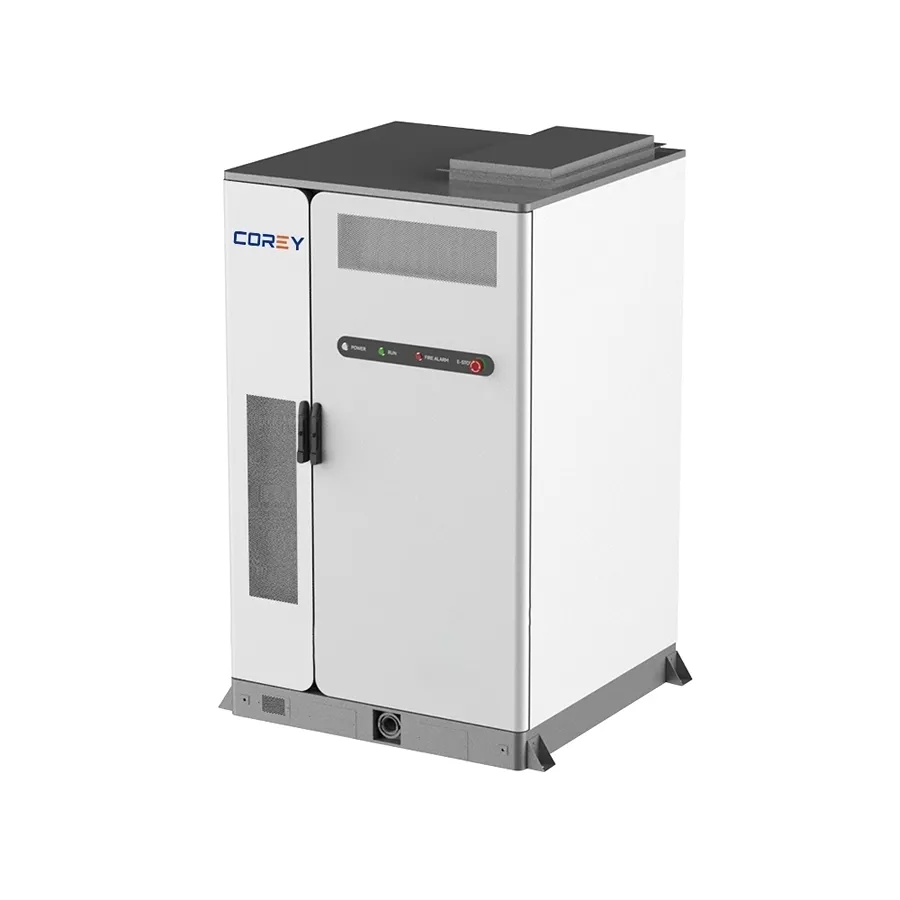

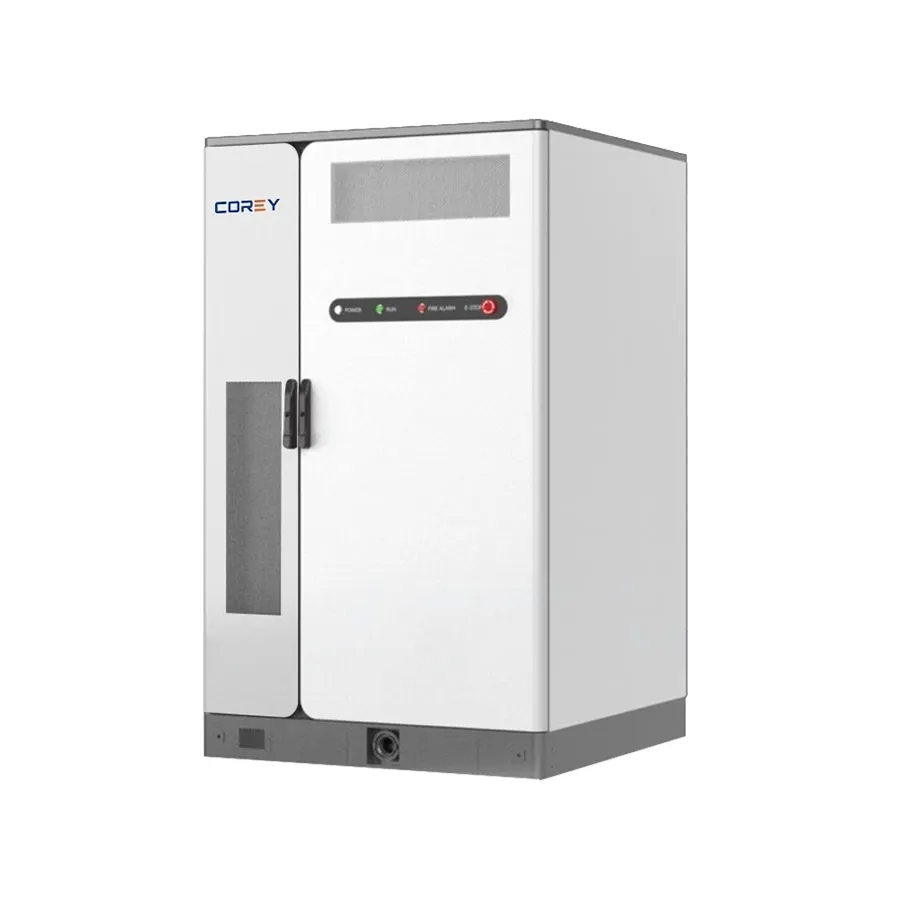

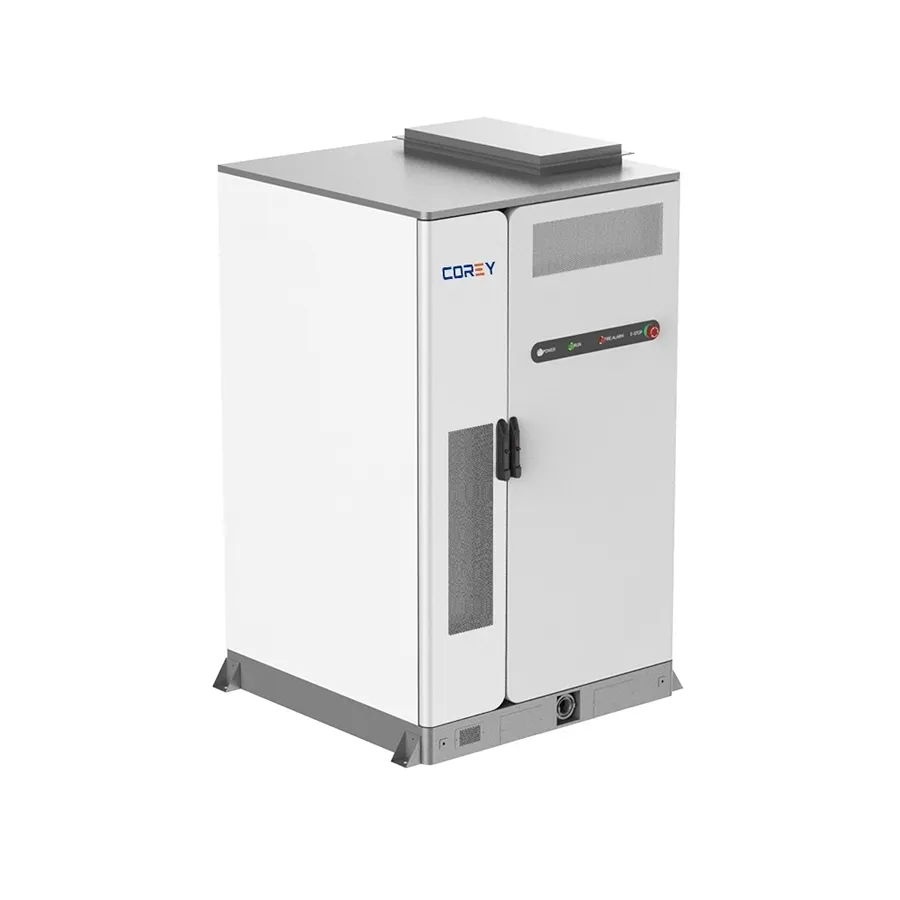

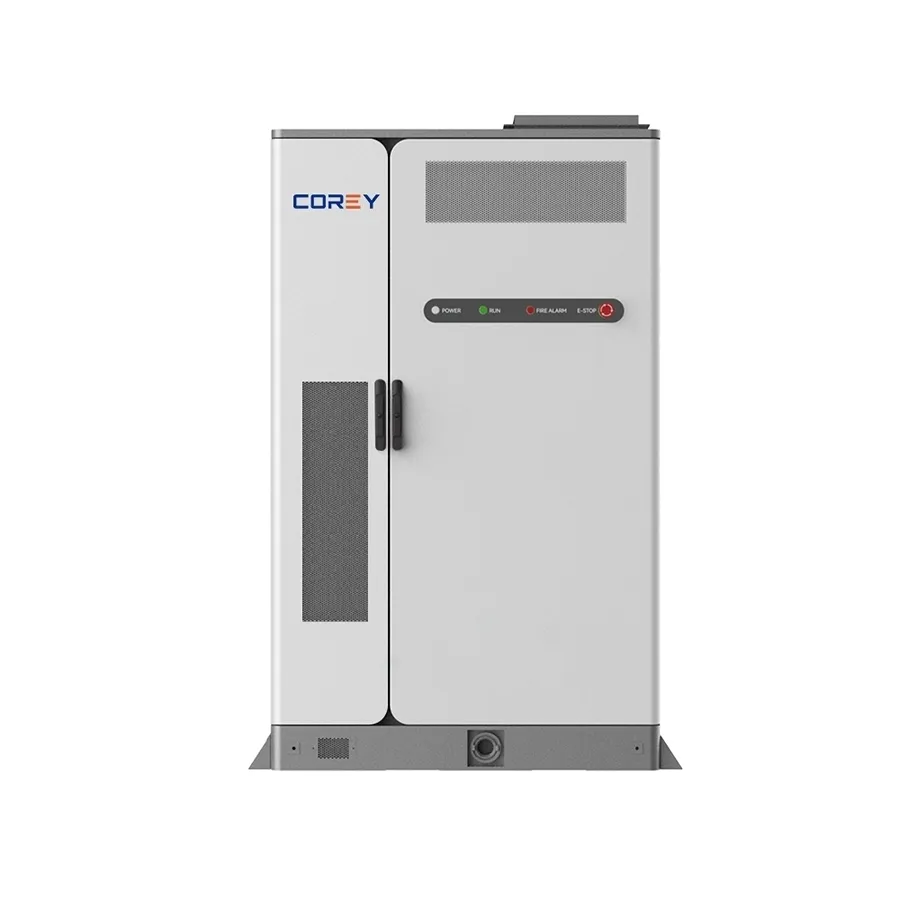

The industrial and commercial storage cabinet system uses a multi-stage protection design of battery packs and battery clusters to effectively isolate faults and prevent fault spread. Divided system design and three-tier intelligent fire safety design minimize the risk of fire spread, ensuring the safety of people and assets.
| System Parameter Details | |
| Product Model | COREY 215CE |
| Battery Cell | LFP(LiFePO4)3.2V 280Ah |
| System Capacity | 215kWh |
| Rated Power | 105KW |
| Access Method | 3W+N/3W+N+Pe |
| Communication | CAN/RS485/Ethernet/4G |
| Fire Fighting | Aerosol(pack-level+cluster-level)+Water Fire Protection(cabinet-level) |
| Operating Temp | 0ºC~50ºC(charge),-20°ºC~50ºC(discharge) |

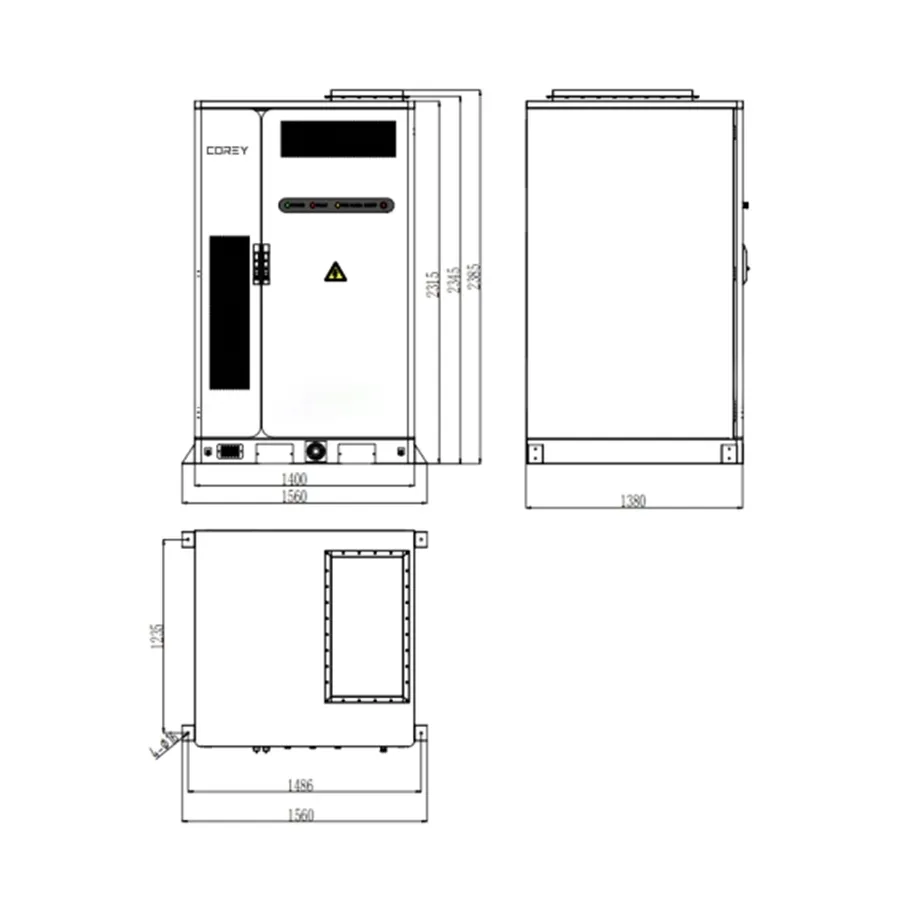

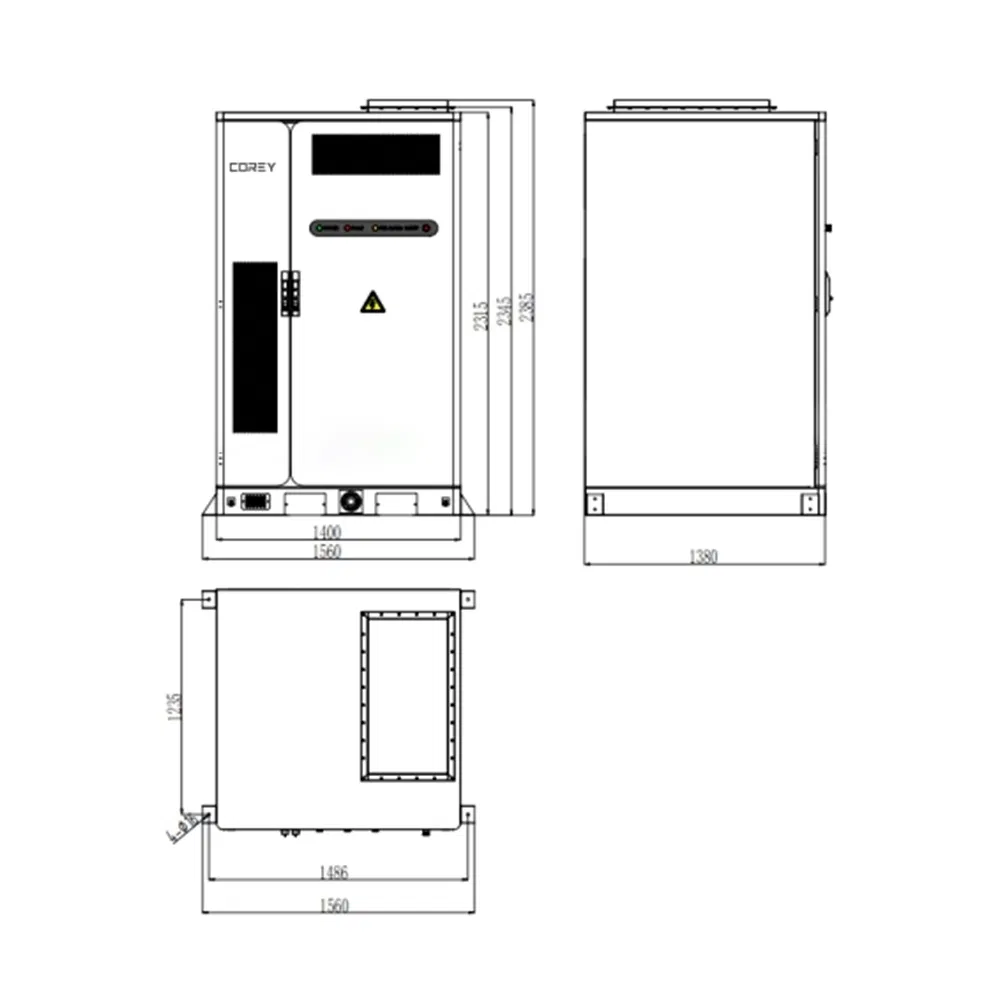

| Weight / Size | 2600kg±50kg / L1560mm*D1380mm*H2385mm |
| AC Side | |
| Rated Voltage | 230V/400V(±15%) |
| Maximum Current | 167A |
| THDi / THDu | <2% / <3% |
| DC Side | |
| Rated Voltage | 768V |
| Voltage Range | 682~864V |
| Discharge Depth | 95%DOD |
